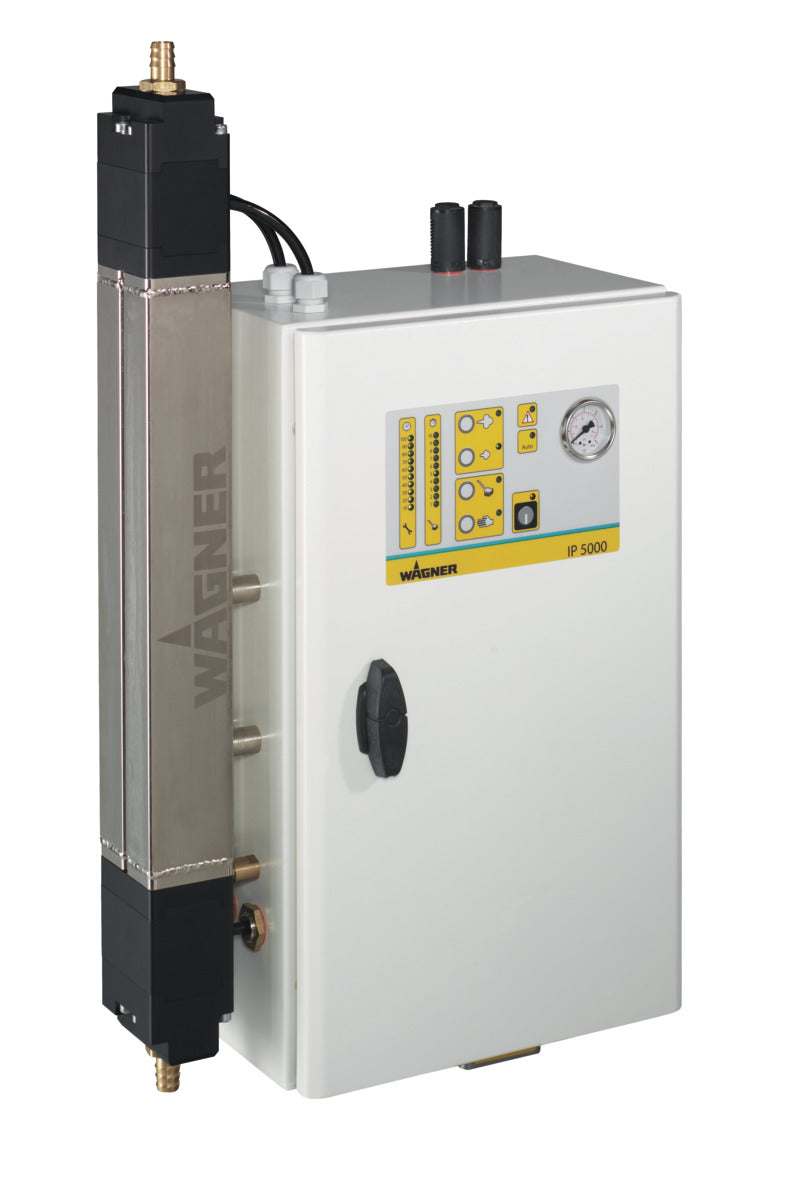

Wagner 241004 Fresh Powder and Transfer Pump IP5000
Wagner 241004 Fresh Powder and Transfer Pump IP5000
Fresh Powder and Transfer Pump IP5000
Manufacturer: Wagner
Part Number: 241004
Description: Conveyor system for conveying large quantities with little air.
Features:
Rapid paint changes -
Simple operation without multiple assignment of the keys. The automatic cleaning program for the suction and feeding direction as well as the adjustable flushing function allow quick color changes.
Excellent coating results -
Four pre-set and freely programmable recipes for flat and complex parts as well as for recoating save time-consuming manual adjustments of the electrostatics. The active service interval display with residual run indicator ensures optimum maintenance procedures.
Reliable -
The pump enables high flow rates with low air consumption. Long feeding distances of up to 50 meters can be handled without problems.
Strong Performance -
The basis for the constant and high feeding capacity is the combination of vacuum and dense flow feeding.
Flexible applications -
Feeding can be done directly from the box, from 200-liter drums or the BigBag. IP 5000 is also suitable for emptying after-filter containers and can be optimally integrated into the production process for feeding between powder stocks.
Specifications:
| Max. Delivery Rate (g/min) |
5000 g/min
|
| Processable materials |
Organic powder coatings, Tribo coloured powder, Commercially available metallic color powders
|
| Air Inlet Pressure Range (bar) |
6 bar - 8 bar
|
| Max. Delivery Distance (m) |
50 m
|
| Length / Depth (mm) |
202 mm
|
| Width (mm) |
385 mm
|
| Height (mm) |
760 mm
|
| Max. Delivery Height (m) |
5 m
|
| Certification |
Complies with ATEX directive, Complies with CE directive, Complies with UKCA directive
|
