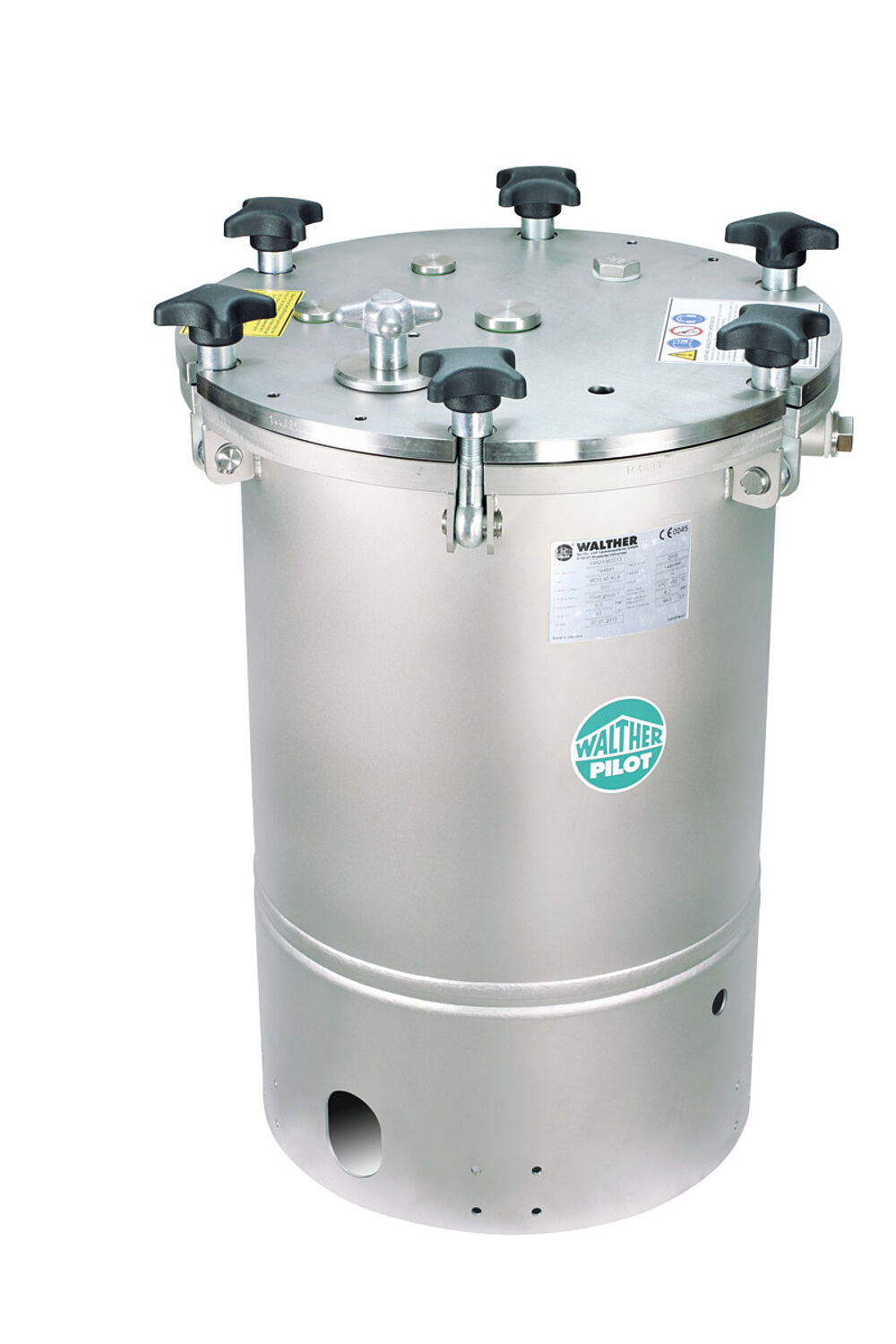

MDG-45 Standard Material Pressure Tank
Manufacturer: Walther Pilot
Part #: V4424160XXX
Description: 6 bar, 42.5 L Standard material pressure tank. Stainless steel or galvanized available. Options include manual, pneumatic, and electric agitation. Particularly suitable for use with 30-liter containers.
- For pulsation-free conveying of liquid materials such as paints, lacquers, oils, release agents and resins
- No escape of vapors or gases to the environment
- Safe storage of liquids
Included in delivery:
- Standard material pressure tank type MDG-45.
- Compressed air inlet fitting assembly with pressure regulator, pressure gauge, safety valve and ventilation.
- Riser pipe and upper material extraction ball valve.
- Material filling cap.
- Agitator (optional).
Specifications:
| Capacity | 42.5L |
| Material | Stainless Steel or Galvanized Steel |
| Operating Pressure | max. 6bar |
| Air Connection | R 1/4"-AG |
| Upper Material Outlet | R 3/8" -AG |
| Inner Diameter | 376mm / 14.8in |
| Height w/out Agitator | 751mm / 29.6in |
| Weight w/out Agitator | 44Kg / 97lbs |
| Weight w/ Manual Agitator | 46Kg / 102lbs |
| Weight w/ Pneumatic Agitator | 54Kg / 119lbs |
| Weight w/ Electric Agitator | 48.5Kg / 107lbs |
