Repair Kit; Air Motor
Manufacturer: WIWA
Part Number: 0604496
Description: Repair Kit; Air Motor

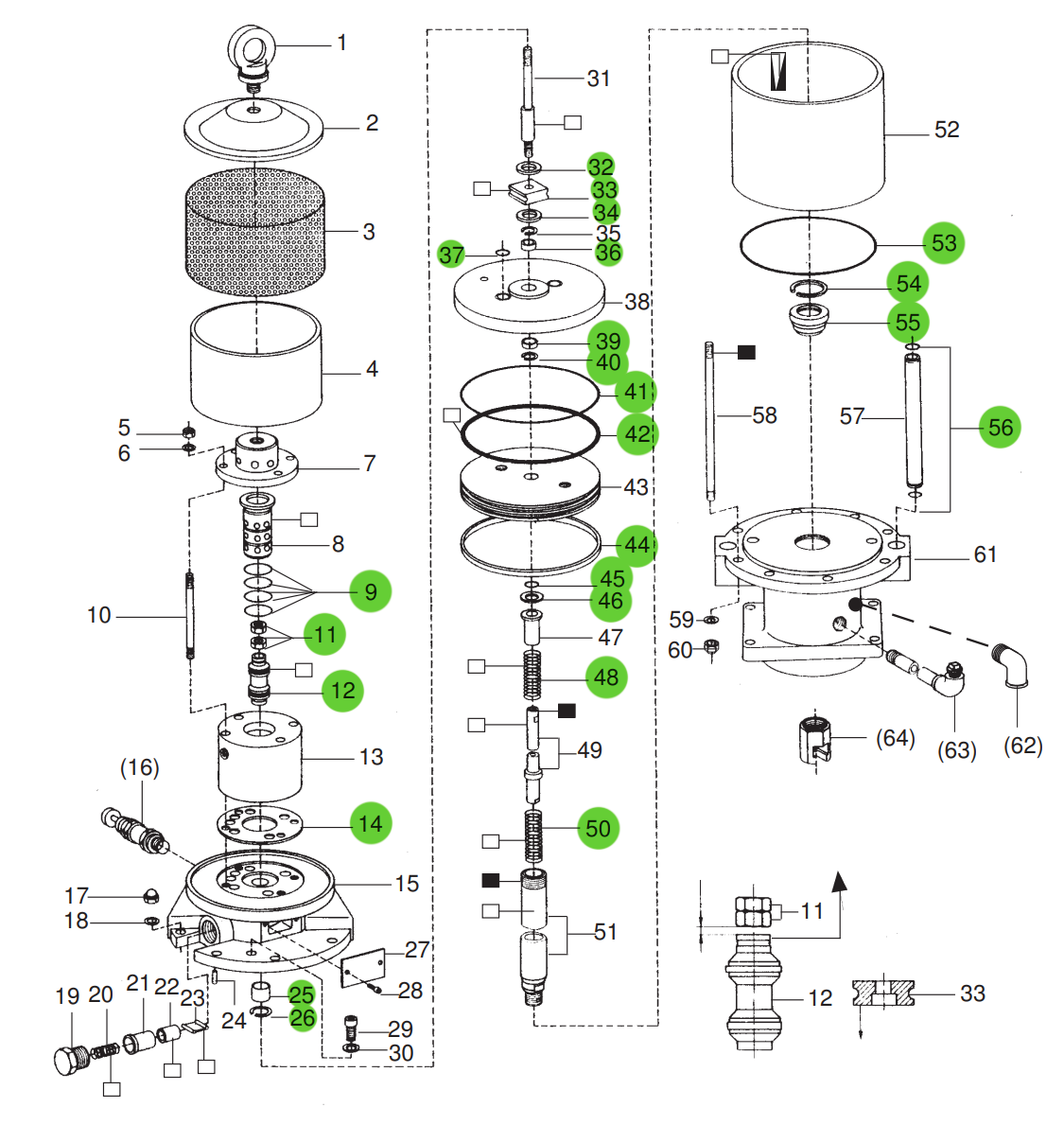

| Includes the following components: |
 |
| Ref. No. | Part No. | Description |
| 9 | 0311189 | O-Ring |
| 11 | 0460648 | nut |
| 12 | 0163775 | control piston assembly |
| 14 | 0465674 | gasket |
| 25 | 0220671 | sintered bearing |
| 26 | 0461296 | retaining ring |
| 32 | 0415278 | dampening spacer |
| 33 | 0220752 | carrier |
| 34 | 0466875 | dampening spacer |
| 36 | 0221295 | sintered bearing |
| 37 | 0311243 | o-ring |
| 39 | 0311103 | u-seal |
| 40 | 0461334 | retaining ring |
| 41 | 0311421 | o-ring |
| 42 | 0311413 | o-ring |
| 44 | 0477192 | guide ring |
| 45 | 0311235 | o-ring |
| 46 | 0221368 | spacer |
| 48 | 0415170 | spring |
| 50 | 0415170 | spring |
| 53 | 0311421 | o-ring |
| 54 | 0461237 | retaining ring |
| 55 | 0478695 | guide bush assembly |
| 56 | 0311243 | o-ring |
