3M™ 26778 Performance Spray Gun System Starter Kit with PPS 2.0
3M™ 26778 Performance Spray Gun System Starter Kit with PPS 2.0
3M™ 26778 Performance Spray Gun System Kit with PPS 2.0
Manufacturer: 3M™
Part Number: 26778
Description: Designed for the modern professional painter, the 3M™ Performance Spray Gun Starter Kit (26778) includes all the essentials you need to get started.
Lightweight and easy to use, the 3M™ Performance Spray Gun was built for the modern painter. Capable of spraying a wide range of coatings from either a pressure-fed source or attached gravity cup, its impact-resistant composite body makes it one of the lightest spray guns available, yet it is durable enough for demanding industrial and automotive conditions.
With its versatile design, technicians can spray from either a pressure or gravity sources. The pressure-fed hose and nozzles allow for continuous bulk spraying for larger jobs. Or for spot repairs and small areas, convert the spray gun to use the 3M™ PPS™ Series 2.0 Spray Cup System – so you use just the right amount of coating to match the size and finish of the job.
Simple, innovative design means fewer parts to maintain. With quick-change replaceable nozzles, paint never passes through the body of the spray gun. Cleanup can be as simple as wiping the tip of the needle and replacing the head – which means no more disassembling or soaking in solvent.
It’s like getting a brand-new spray gun every time you put on a fresh nozzle. At sizes from 1.1 to 2.0, 3M™ Performance Atomizing Heads allow you to easily spray a wide range of coatings – from stains and primers to topcoats and even adhesives. The spray gun’s intuitive design means it’s ready to help technicians spray right out of the box – whether you’re a seasoned pro or if it’s your first day on the job.

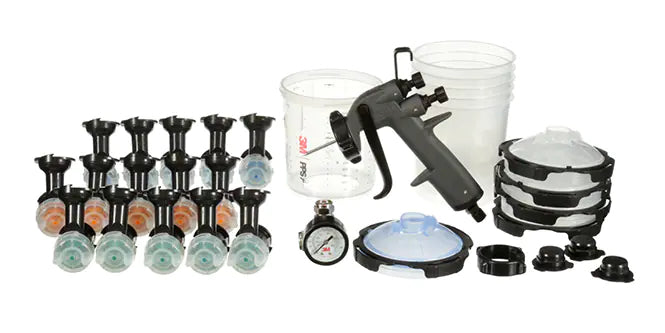

Includes:
- 3M™ Performance Spray Gun
- 5 Atomizing Heads 1.2
- 5 Atomizing Heads 1.3
- 5 Atomizing Heads 1.4
- Air Control Valve
- PPS Series 2.0 Cup 5 Liners
- 3 Sealing Plugs
- 1 Locking Collar
- 4 Lids 200 micron
- 1 Lid 125 micron
Spray Gun Specifications:
- Air Consumption: 13 SCFM
- Recommended Air Inlet Pressure: 20 psi
- Maximum Operating Temperature: 122º F
- Maximum Operating Overpressure: 145 psi
- Weight: 13.3 oz
- Air Inlet: 1/4" BSP/NPS
- Nozzle Orifice Sizes: 1.2, 1.3, 1.4, 1.6, 1.8, 2.0
Replacement Parts:
| Part No. | Description |
| 26833 | Pressure Whip |
| 26839 | Ball Valve |
| 26835 | Locking Collar |
| 26840 | Rebuild Kit |
| 26834 | Whip Pin |
| 26838 | Needle |
Atomizing Head Refill Kits:
Pressure -
| Part No. | Description |
| 26811 | Yellow, 1.1mm |
| 26814 | Orange 1.4mm |
| 26818 | Clear, 1.8mm |
| 26830 | Variety Kit, 3 sizes (1.1, 1.4, 1.8mm) |
Gravity -
| Part No. | Description |
| 26712 | Blue, 1.2mm |
| 26713 | Green, 1.3mm |
| 26714 | Orange, 1.4mm |
| 26716 | Purple, 1.6mm |
| 26718 | Clear, 1.8mm |
| 26720 | Red, 2mm |
| 26730 | Variety Kit, 6 sizes (1.2, 1.3, 1.4, 1.6, 1.8, 2.0) |
