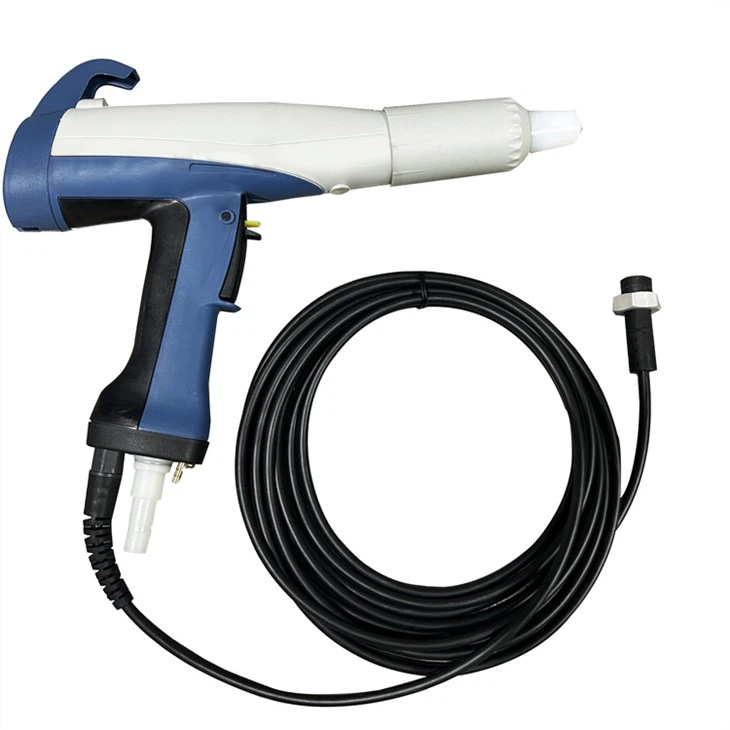

Aftermarket Nordson® Encore® LT Manual Powder Spray Gun W/ 6m Cable (Non-OEM)

Encore® LT Manual Powder Spray Gun W/ 6m Cable (Non-OEM)

Manufacturer: Total Finishing Supplies

TFS Part Number: 3320679

Comparable to OEM Part Number: 1106893

Description: This Non-OEM Encore® LT Manual Powder Spray is part of our aftermarket powder coating system, designed for rugged, everyday manual powder coating tasks. It pairs with a compatible system controller and is engineered for ease of use, superior transfer efficiency, durability, and consistent coating performance in industrial powder-coating applications.

Features:

• Rugged, durable design built for everyday use in industrial powder coating environments.
• Ergonomic and balanced gun design reduces operator fatigue.
• Quick plug-and-spray installation — requires only power and compressed air.
• Auxiliary trigger cleans the powder path from base to nozzle to prevent powder build-up.
• Compatible with a variety of nozzle types (flat, conical, cross-cut, corner spray) for different spray patterns and part geometries.
• Field-serviceable construction for simpler maintenance and cleaning.



Parts and Accessories:

Electrode Assembly Kit

1604824 - ELECTRODE ASSEMBLY, flat spray

Ref No.	Description
3	SUPPORT, electrode
3A	ELECTRODE, spring contact
3B	HOLDER, electrode, M3, flat spray



Powder Outlet Tube Kit

1085024 - KIT, powder outlet tube

Ref No.	Description
4	TUBE, powder outlet
4A	O-RING, -111, 0.438 x 0.625 x 0.094 in., silicone, 70 Duro
5	O-RING, 0.468 x 0.568 x 0.050 in., silicone, 70 Duro



Negative Power Supply/Gun Body Kits

1608280 - KIT, negative power supply/manual body

Ref No.	Description
13	BODY ASSEMBLY
13A	POWER SUPPLY, 100 kV, negative
14	FILTER ASSEMBLY

1088506 - KIT, body assembly

13	BODY ASSEMBLY
14	FILTER ASSEMBLY



Trigger Kits

1626492 - KIT, trigger, components, LT/PE

Ref No.	Description
19	TRIGGER, setting
20	TRIGGER, main, spray gun
20A	AXLE, trigger, solid, spray gun
21	ACTUATOR, switch, trigger
22	SCREW, flat head, recess, M5x 10, nylon
23	SWITCH, trigger

1606999 - KIT, service, trigger axle/trigger

20	TRIGGER, main, spray gun
20A	AXLE, trigger, solid, spray gun
21	ACTUATOR, switch, trigger

1108095 - KIT, trigger switch

23	SWITCH, trigger



Powder Inlet Tube Kit

1085026 - KIT, powder inlet tube

Ref No.	Description
25	TUBE, powder inlet
25A	O-RING, 18.0 x 22.0 x 2.0 mm, silicone, 70 Duro
25B	O-RING, 0.468 x 0.568 x 0.050 in., silicone, 70 Duro



Cable Assembly

1106756 - CABLE ASSEMBLY, spray gun, manual, 6 meter

Ref No.	Description
26	CABLE, 7 wire with braided shield
26A	O-RING, -012, 0.375 x 0.500 x 0.063 in., conductive silicone, 70 Duro
26B	CLAMP, cable, 0.25 ID x 0.05 thick, white



Conical Nozzle Kits

1604828 - KIT, conical nozzle

Ref No.	Description
32	DEFLECTOR ASSEMBLY, conical, 26 mm
32A	O-RING, 3.0 x 5.2 x 1.1 mm, Viton, 75 Duro
33	NOZZLE, conical
34	HOLDER, electrode, M3, conical

1083206 - DEFLECTOR ASSEMBLY, conical, 26 mm

32	DEFLECTOR ASSEMBLY, conical, 26 mm
32A	O-RING, 3.0 x 5.2 x 1.1 mm, Viton, 75 Duro

1083205 - DEFLECTOR ASSEMBLY, conical, 19 mm

32	DEFLECTOR ASSEMBLY, conical, 19 mm
32A	O-RING, 3.0 x 5.2 x 1.1 mm, Viton, 75 Duro



Hose Adapter Kit

1106200 - KIT, hose adapter, hose, handgun

Ref. No.	Description
35	ADAPTER, hose
35A	O-RING, black, 0.563 x 0.688 x 0.063, 10415, Viton, 75 +5 Duro



Tubing

Part No.	Description
900617	TUBE, polyurethane, 4 mm OD, clear
900741	TUBING, polyurethane, 6/4 mm, black
900620	TUBING, poly, spiral cut, 3/8 in. ID



Miscellaneous

Ref. No.	Part No.	Description
1	1081638	NUT, nozzle, handgun
2	1081658	NOZZLE, flat spray, 4 mm
6	1088502	GASKET, multiplier cover, handgun
7	1106872	BULKHEAD, multiplier, handgun
8	1087559	COVER, housing
9	1618782	KIT, gun display housing
10	1087760	HOOK, handgun
11	1078075	SCREW, pan head, recessed, M3 x 30, zinc
12	760580	SCREW, Philips head, M3 x 20, zinc
15	1106871	HANDLE, ground pad, handgun
16	983520	WASHER, lock, internal, M3, zinc
17	982427	MACHINE SCREW, pan head, recessed, M3 x 6, zinc
18	1096695	ELBOW, powder tube, handgun
19	1081540	TRIGGER, purge, setting, handgun
22	1088601	SCREW, flat head, recess, M5x 10, nylon
24	1106870	HANDLE, handgun
27	1087762	BASE, handle, handgun
28	1081617	CHECK VALVE, male, M5 x 6 mm
29	1081616	FITTING, bulkhead, barb, dual, 10−32 x 4 mm
30	1081777	RETAINING RING, external, 10 mm



NOTES:

Nordson®, Encore®, Versa-Spray® are registered trademarks of Nordson Corporation, and may claim unregistered trademark rights in other words. The advertised parts are intended to fit Nordson® spray and powder equipment. They are not, however, manufactured, endorsed, or sponsored by Nordson Corporation or any of their affiliates, and no warranty by Nordson Corporation or any of their affiliates applies. Total Finishing Solutions, LLC is not affiliated with or sponsored or endorsed by Nordson Corporation and is not one of their authorized distributors
