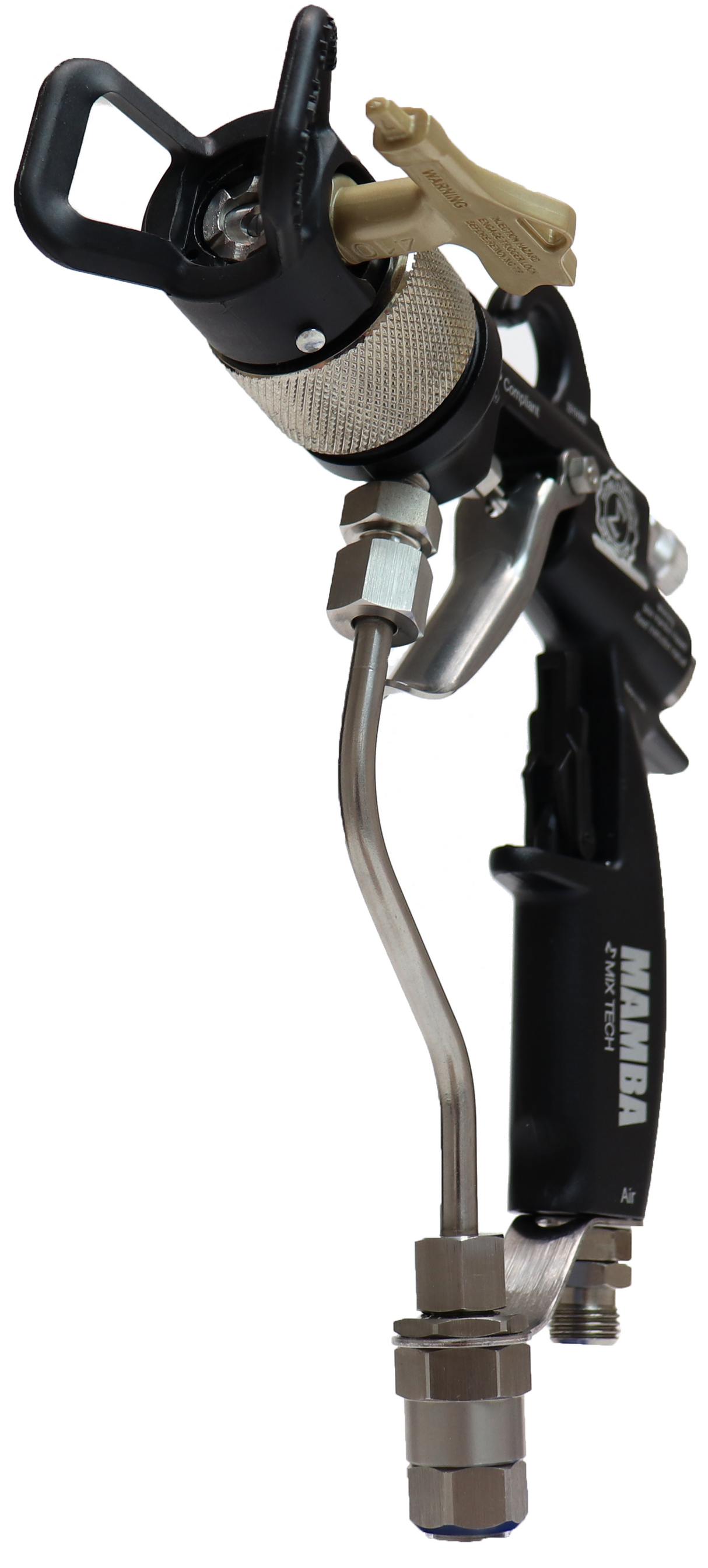

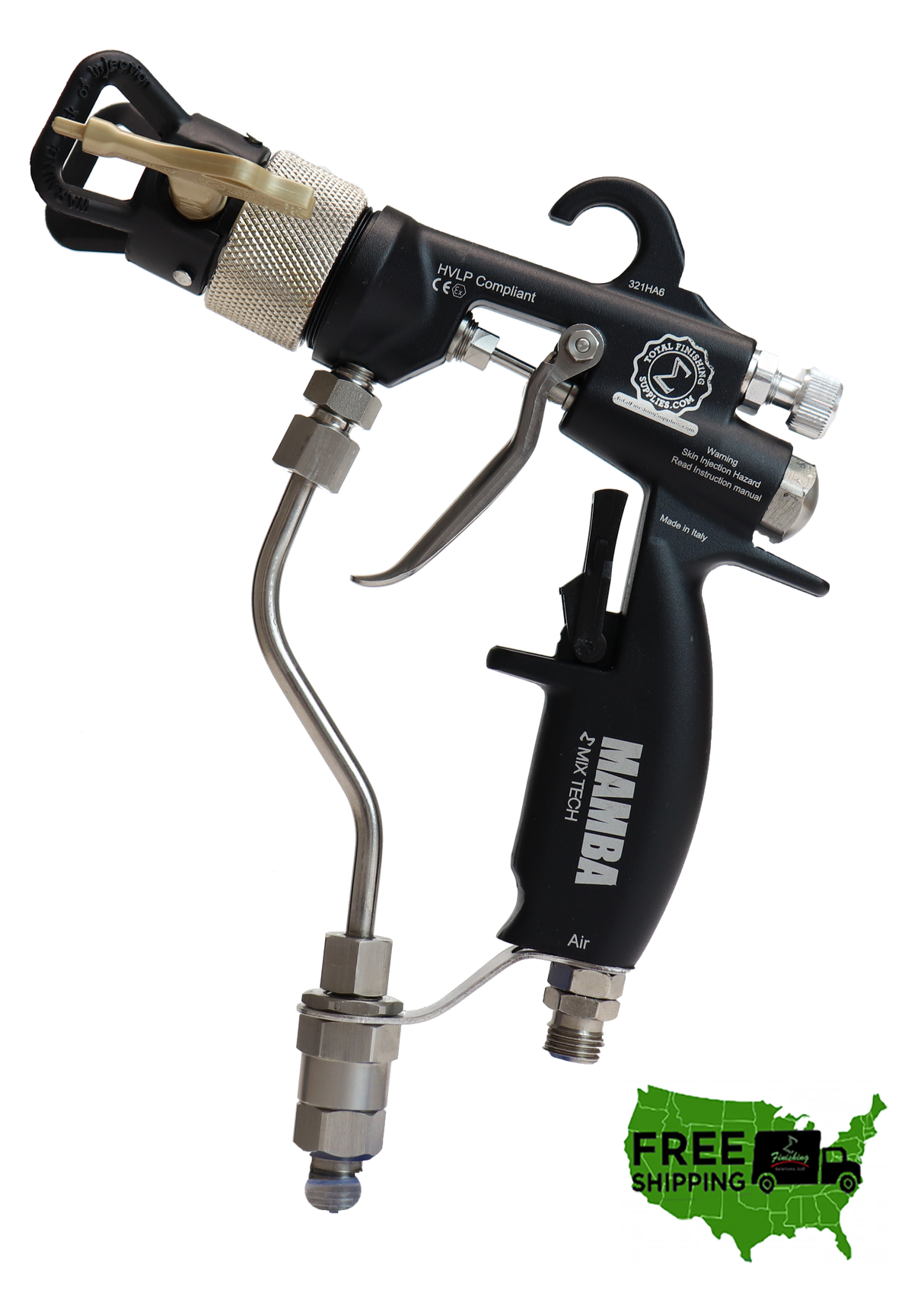

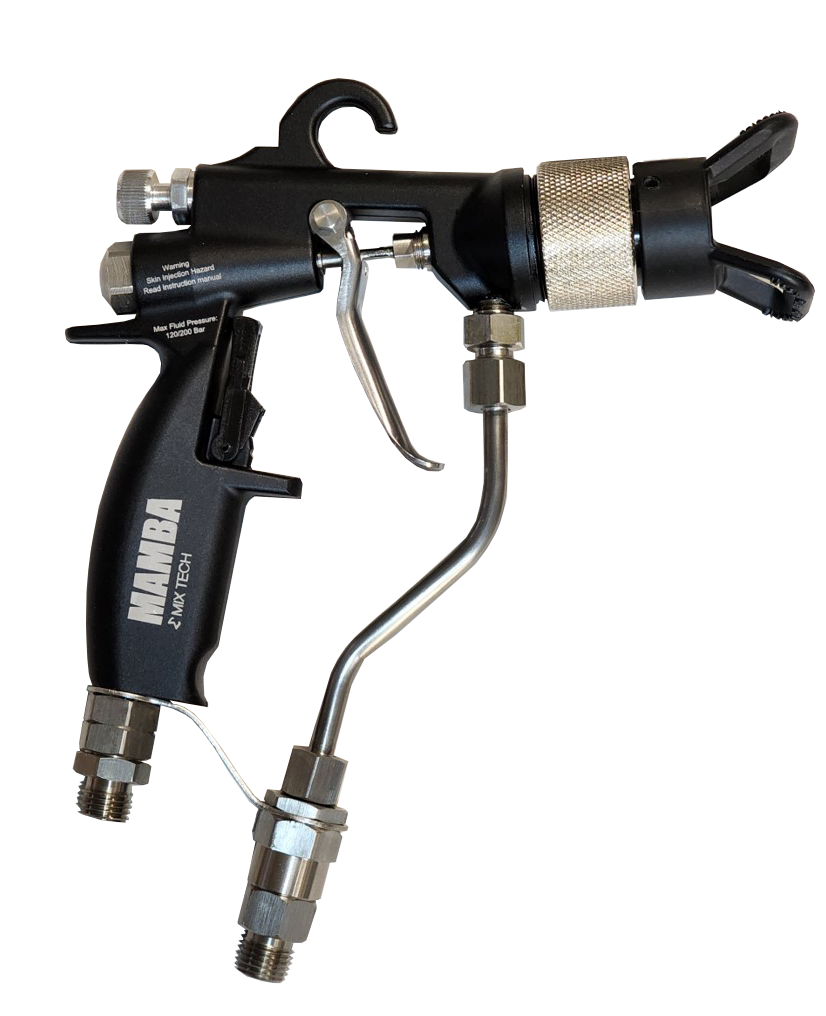

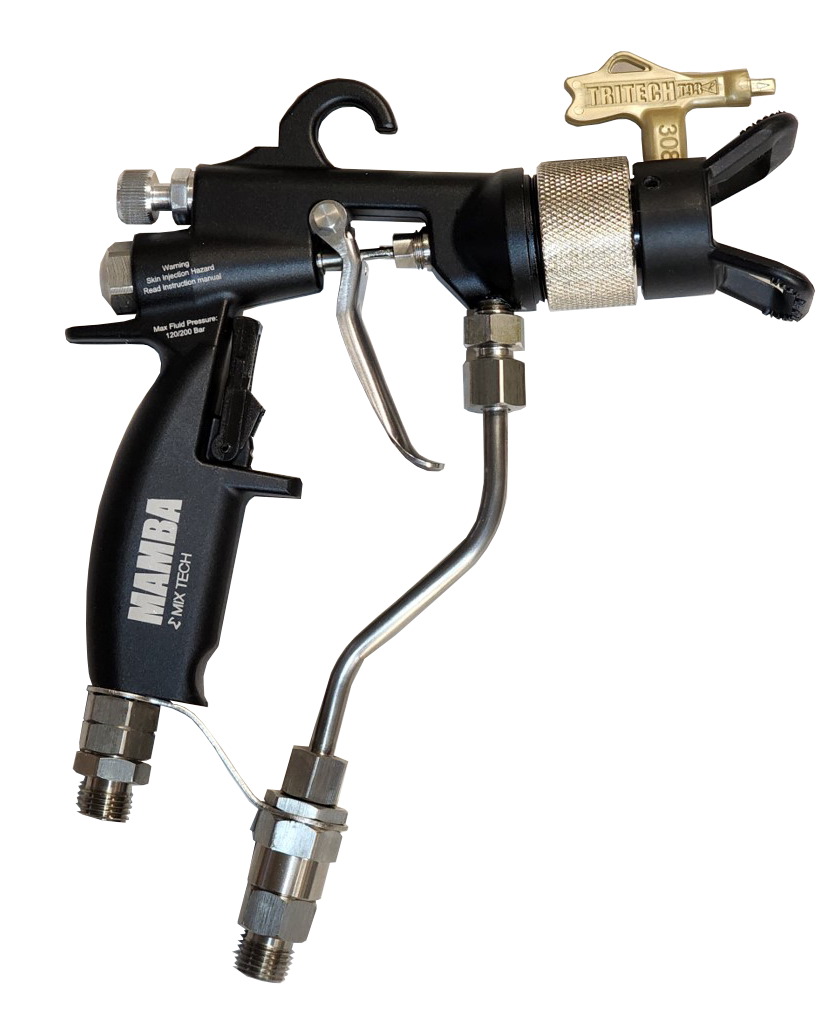

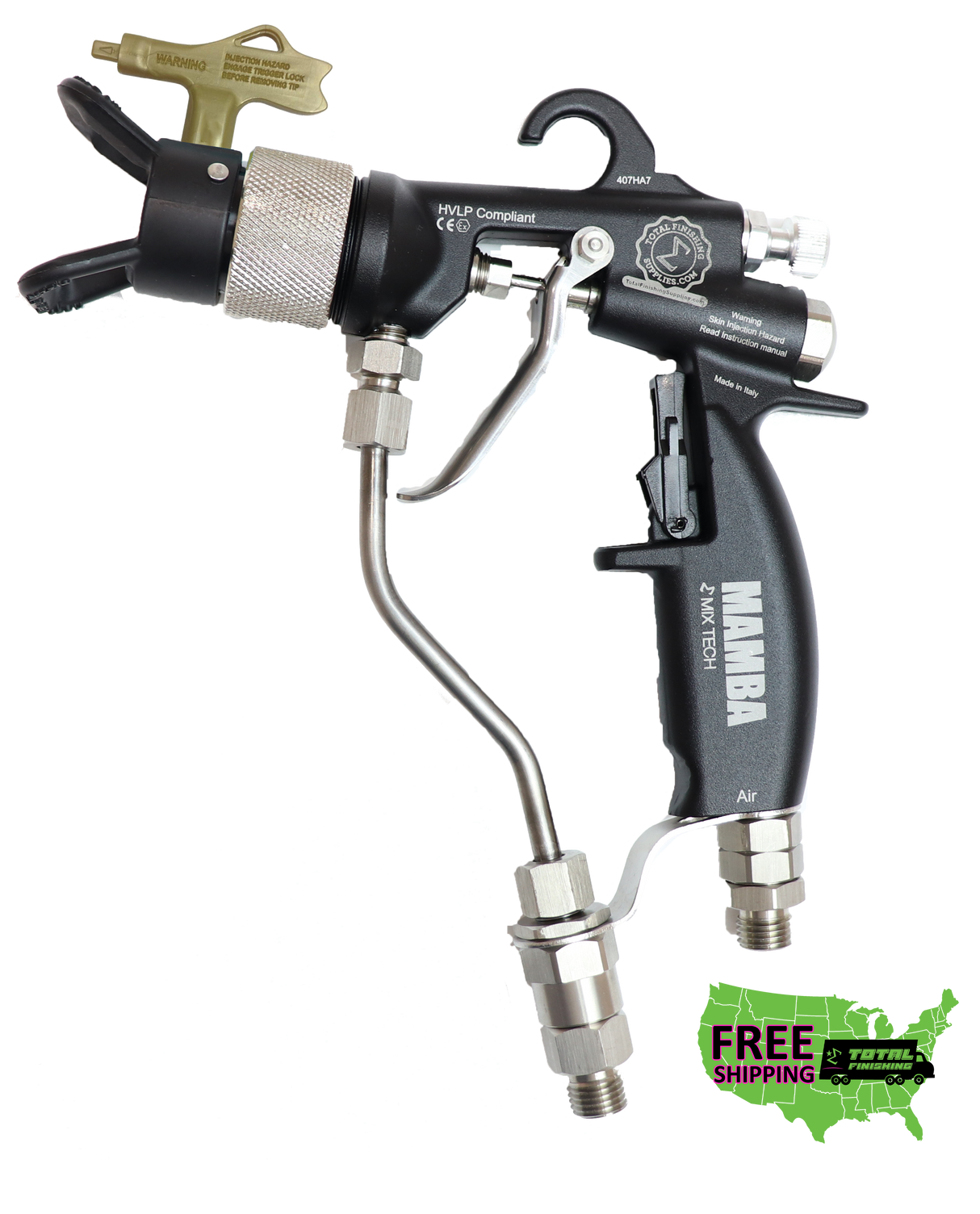

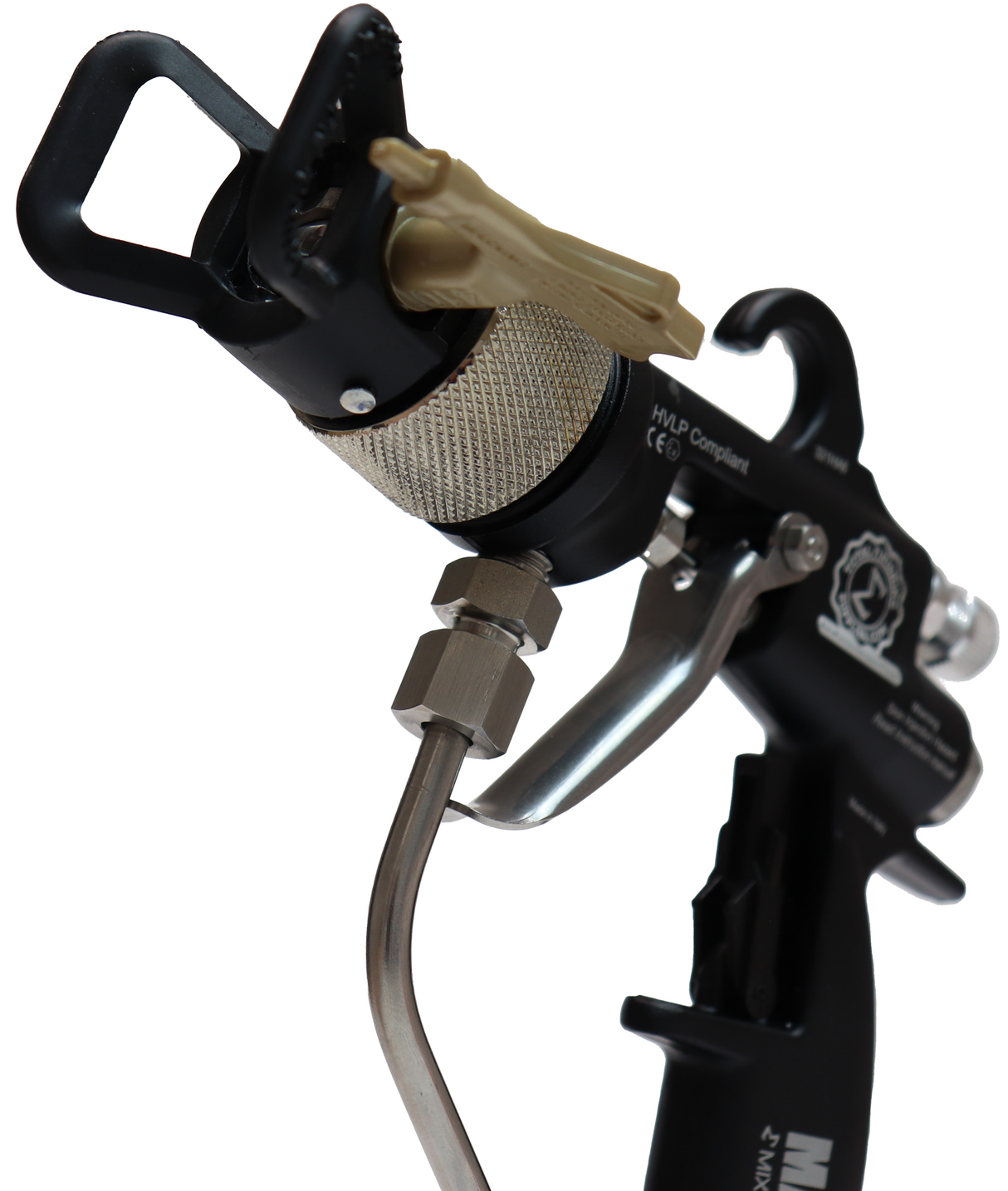

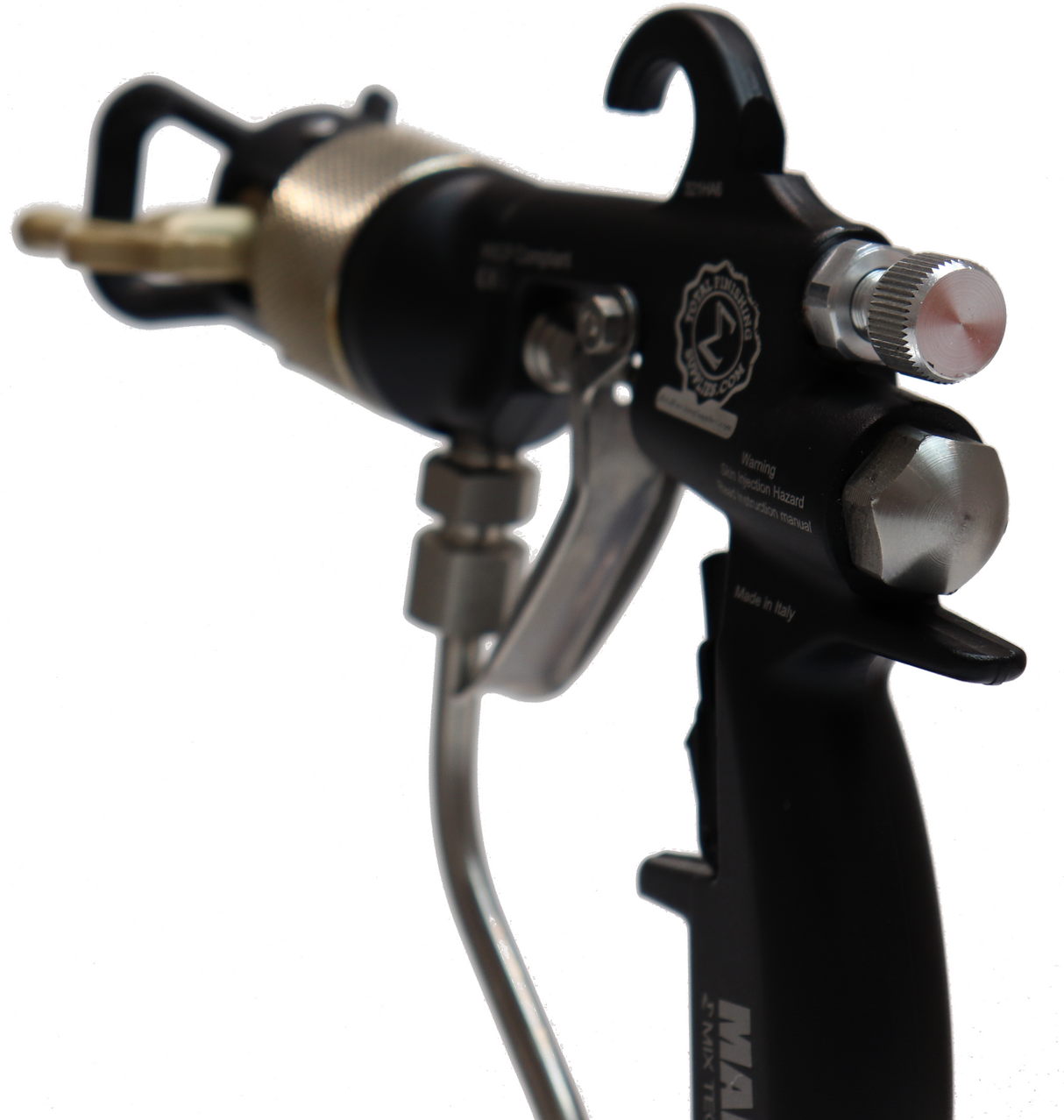

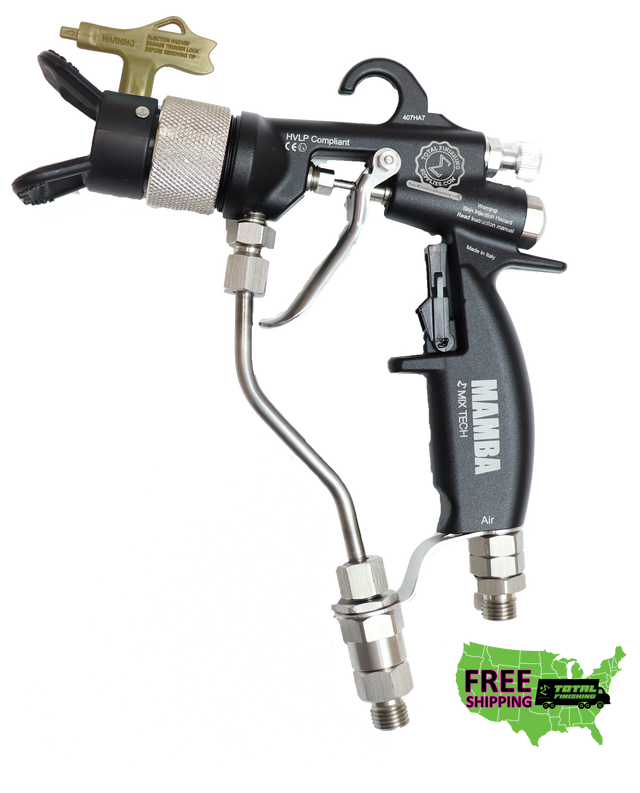

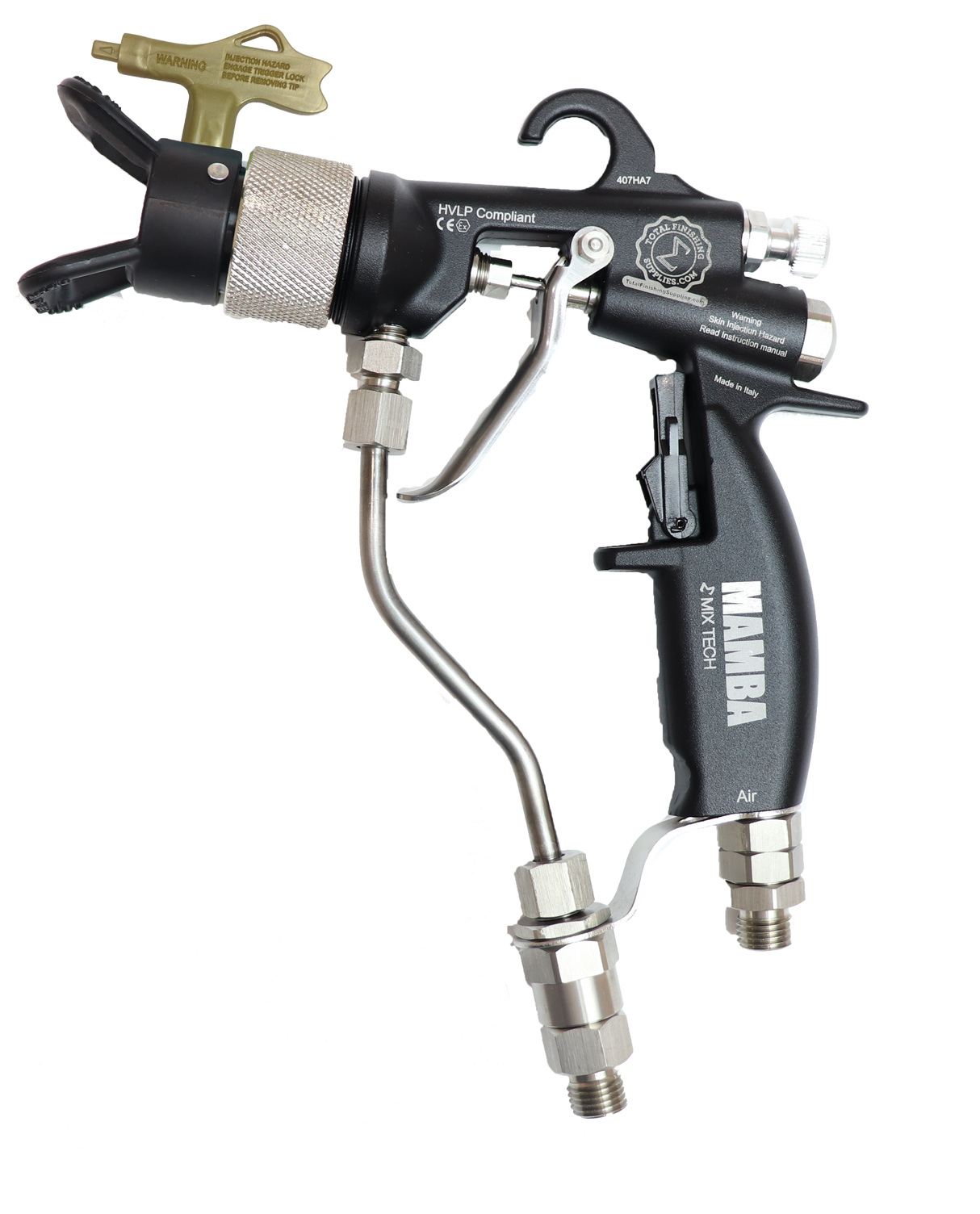

MAMBA® Mix-Tech Air-Assisted Airless Spray Gun – Manual Paint Gun with Reversible Tip (G-15® / G-40® Compatible)

MAMBA® Mix-Tech Air Assisted Airless Manual Spray Gun with Reversible Tip

Manufacturer: Total Finishing Supplies

Part Number: Mamba

Description: High Performance. Low CFM. Built to Outperform.

The MAMBA® Mix-Tech Air-Assisted Airless Spray Gun is engineered for professional finishers who demand superior atomization, high transfer efficiency, and all-day reliability—without the high cost of OEM brands.

Designed as a high-performance alternative to: G-15® and G-40® spray guns, the MAMBA® delivers exceptional finish quality while maintaining low air consumption and unmatched value.

---

⚡ Why MAMBA® Outperforms

• Up to 86% Transfer Efficiency – Less waste, more material on the part
• HVLP Compliant – Legal for use in all air quality districts with HVLP requirements
• Low Air Consumption (1.2 CFM Minimum) – Reduce compressor load and energy cost
• Air-Assisted Airless Technology – Perfect balance of speed and finish quality
• Reversible Tip Included – Quick cleaning and reduced downtime
• ISO9001 Manufactured – Precision-built in Europe (NOT China)
• < 82 dB Operation – Quiet and operator-friendly

---

🔧 Compatibility & Flexibility

• Uses TriTech® Fine Finish Reversible Tips (included)
• Compatible with: RAC-X® tips
• Many internal components are interchangeable with G-15® / G-40® platforms

---

📦 What’s Included

• MAMBA® Mix-Tech Manual Spray Gun
• Reversible Spray Tip (selected size or “No Tip” option)
• Air Cap & Tip Guard
• Operator-ready configuration

---

🚚 Shipping & Support

✅ FREE SHIPPING in the Lower 48 States
📦 In-stock and ready to ship
🧠 Expert support from real finishing professionals

---

🏆 Applications

• Wood finishing (cabinets, doors, millwork)
• Metal fabrication
• General industrial coatings
• High-production environments

---

💰 Why Total Finishing Supplies?

• Save 30–60% vs OEM pricing
• Aftermarket parts always in stock
• Real support from finishing experts
• Proven performance in the field

---

📞 Need Help Dialing It In?

We’ll help you select the right tip size, pressure, and setup for your coating.

👉 Call or Text: 503-753-5131

---

Stop overpaying for OEM guns. Upgrade to MAMBA® and spray smarter.

Specifications:

Fluid Inlet: NPSM 1/4"
Compressed Air Connection: NPT 1/4"
Max. Material Pressure: 200 bar / 2,900 psi
Max Material Pressure:  131°F (55°C)
Max Inlet Pressure: 8 bar / 116 psi
Operating Temperature Range:  41°–104°F (5°–40°C)
Weight: 1.3lb (0.6kg)
Max Sound Level:  82dB(A)

Literature

• Operating Manual
• Brochure
• Cut Sheet
• Tip Chart

Accessory and Parts List

• Air Assisted Airless Hose Set - 3/16" Fluid Hose
• Air Assisted Airless Hose Set - 1/8" Fluid Hose
• GripFx Spray Gun Grip
• TriTech Contractor Tips
• TriTech Ultra-Finish Tips
• TriTech Tip Seal & Gasket
• Reversible Tip Guard and Retainer/Air Cap
• MAMBA® Filter Support
• MAMBA® Filter Support Cap
• Non-OEM Tip Sieves (85-200 mesh)
• 1/4" M x 1/4" F Swivel
• 25' High-Pressure Fluid Line (select fittings when ordering)
• 25' Air Line

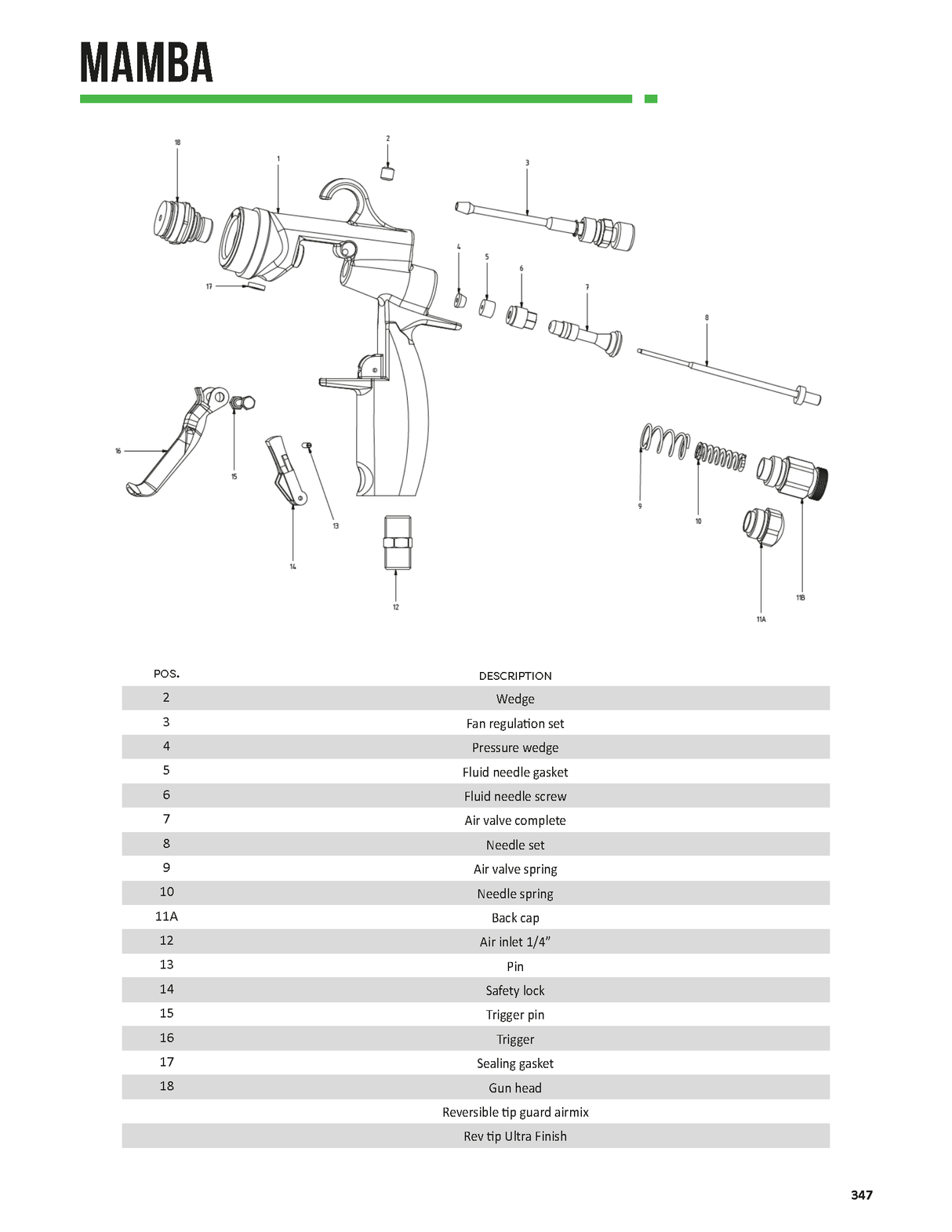

Replacement Part List

Ref. No.	Description
2*	Wedge
3	Fan Regulation Set
4*	Pressure Wedge
5*	Fluid Needle Gasket
6**	Fluid Needle Screw
7**	Air Valve Complete
8**	Needle Set
9	Air Valve Spring
10	Needle Spring
11A	Back Cap
12	Air Inlet 1/4"
13	Pin
14	Safety Lock
15	Trigger Pin
16	Trigger
17*	Sealing Gasket
18	Gun Head
	Diffuser O-Ring Seal
	Reversible Tip Guard and Retainer
	Reverse Tip, Ultra Finish
	TriTech Tip Seal & Gasket
*	Seal for Reversible Tip Guard, 5 pk



• MAMBA® - SNAKEBITE SEAL KIT™ - Includes all items marked with *
• MAMBA® - SNAKEBITE SERVICE KIT™ - Includes all items marked with * and **



📊 MAMBA® / TriTech® / RAC-X® Tip Size Guide

Understanding tip sizes is critical for proper spray performance.

Each 3-digit tip number represents:

• First digit = Spray angle (fan width)
• Last two digits = Orifice size (flow rate in thousandths of an inch)

---

🔧 How It Works

• A 206 tip = 20° spray angle + 0.006” orifice
• A 306 tip = 30° spray angle + 0.006” orifice
• A 406 tip = 40° spray angle + 0.006” orifice

📏 Spray pattern is measured at 10–12 inches from the surface

---

📐 Fan Width Reference

Tip Size	Angle	Approx. Fan Width	Orifice	Typical Use
206	20°	~4”	0.006	Fine finish, narrow parts
208	20°	~4”	0.008	Stains, sealers
210	20°	~4”	0.010	Clears
306	30°	~6”	0.006	Small panels
308	30°	~6”	0.008	Lacquers
310	30°	~6”	0.010	General finishing
406	40°	~8”	0.006	Medium parts
410	40°	~8”	0.010	Production spraying
412	40°	~8”	0.012	Medium viscosity coatings
510	50°	~10”	0.010	Large surfaces
514	50°	~10”	0.014	Primers
518	50°	~10”	0.018	Heavy coatings

---

✅ Compatibility

• Works with TriTech® Standard or Ultra Fine Finish reversible tips
• Compatible with : RAC-X® tip system
• Interchangeable sizing conventions across platforms

---

💡 Pro Tip

• Smaller angle (20°–30°) = tighter pattern, more control
• Larger angle (40°–50°) = wider pattern, faster coverage
• Larger orifice = more material flow

👉 Choosing the right tip dramatically affects finish quality, speed, and material usage.

NO DISCOUNT CODES may be applied to this item

NOTES:

Not made by Graco®

Total Finishing Solutions, LLC is not affiliated with or sponsored or endorsed by Graco Inc. and is not one of their authorized distributors. Aftermarket Non-OEM replacement parts comparable to Graco® brand equipment are not manufactured or warrantied by Graco Inc. or any of its affiliates.

Click here to view other products, parts, & accessories!

Warranty & Returns

Warranty: 1-year limited warranty from date of purchase against defects in materials and workmanship. Wear items (tips, needles, seals, gaskets, filters, hoses, etc.) are not covered. Damage caused by misuse, improper setup, lack of cleaning/maintenance, contamination, chemical incompatibility, freezing, or shipping damage after delivery is not covered. Warranty claims require a valid proof of purchase and an RMA; we reserve the right to inspect and deny claims.

Returns: No returns once paint/coating has been loaded into the gun or the gun has been used. Unused items may be eligible for return only if unopened and in original packaging (restocking fee may apply). Contact us for an RMA before sending anything back—returns without an RMA will be refused.

Comparable to: 262929 24C857 249238 288465
