UltraTech Ultra-Drain Guard® - Reusable Model
Manufacturer: UltraTech
Part Number: See table

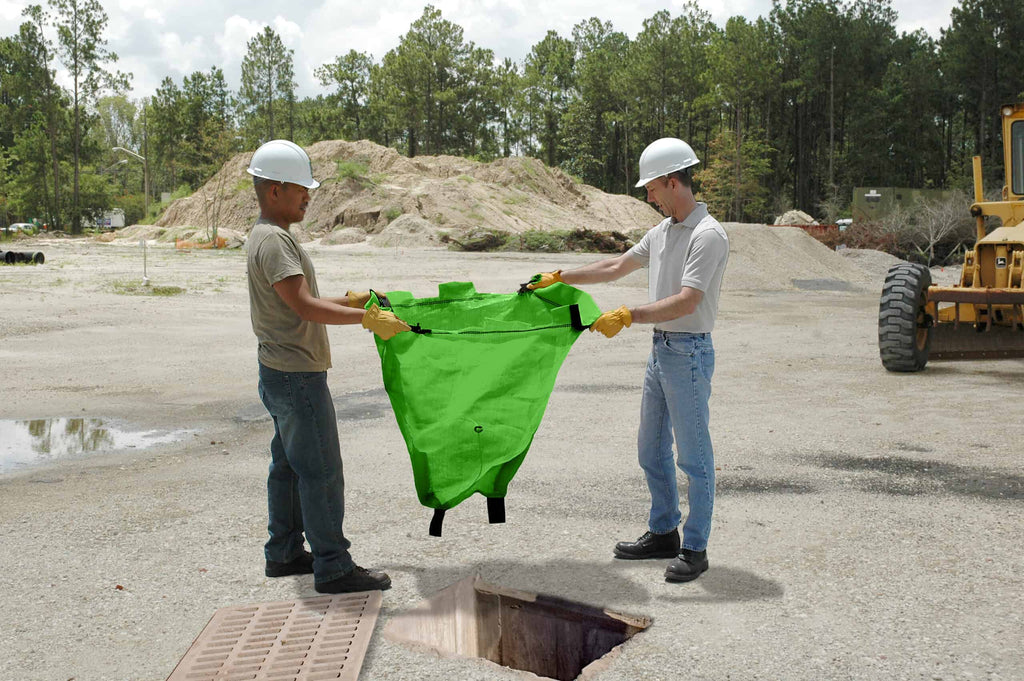

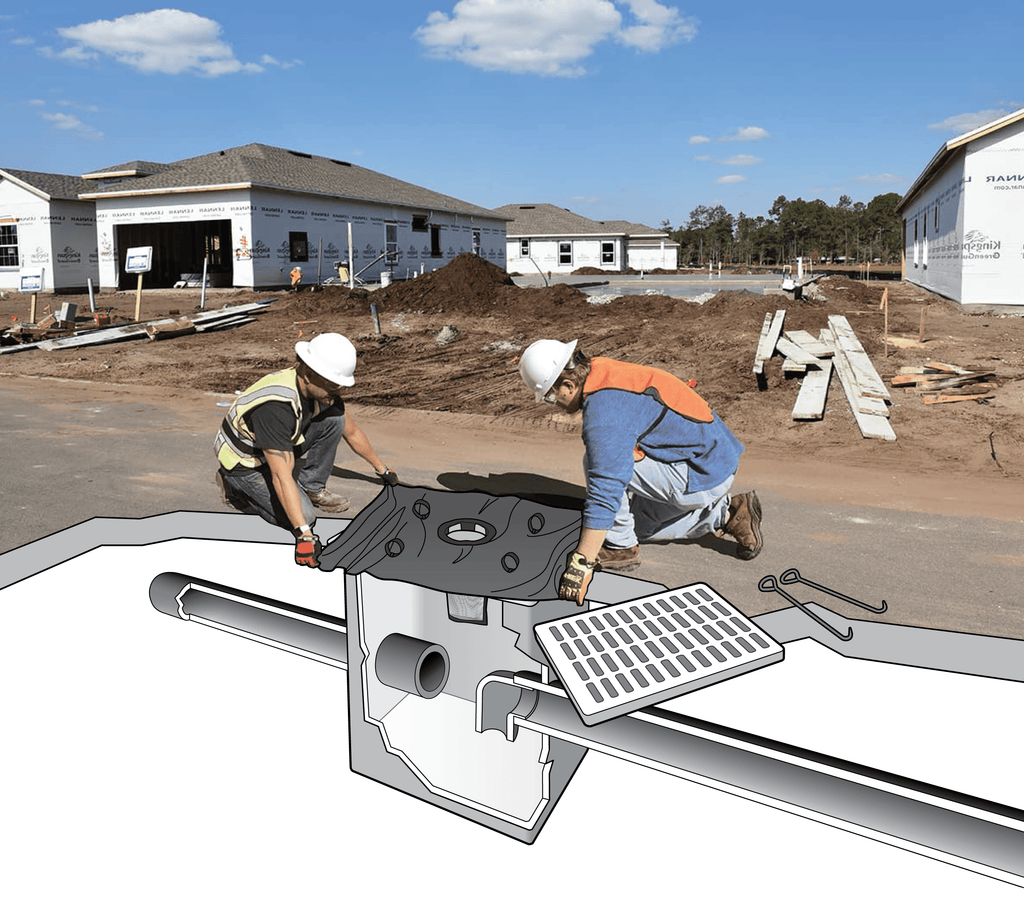

Description: Storm drains on or around construction sites are susceptible to large quantities of dirt and sand. In those circumstances, a higher capacity catch basin insert may be the better solution.
While it won’t capture hydrocarbons like many of the other Ultra-Drain Guards, the reusable model is capable of containing up to five hundred (500) pounds of silt, soil, and dirt.
Product Highlights:
- Manufactured with durable/ hi-vis polypropylene fabric.
- Designed with a large containment area for construction runoff - easily cleaned and reused.

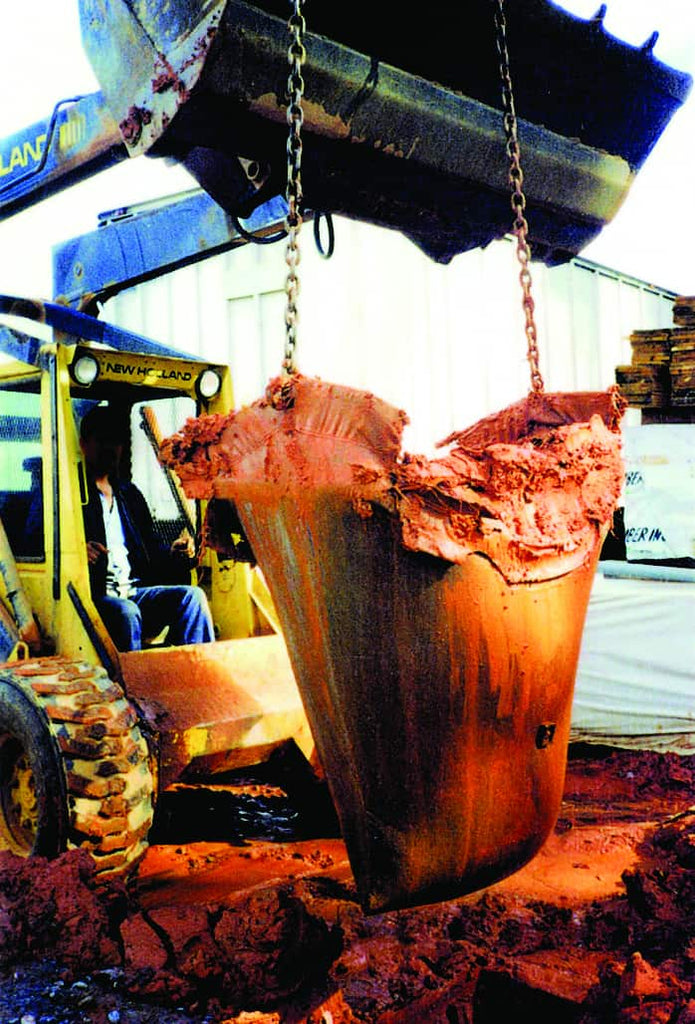

- Easy removal with backhoe, forklift, or other equipment.
- Custom sizes available.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
- Material: High Flow Woven
| Part No. | Model | Dimensions in. | Weight Capacity UDL lbs. | Weight lbs. |
|
High Flow Fabric |
||||
| 9330 | Reusable Model, Curb-Style w/ 4 Overflow Ports | 36 x 24 x 36 | 500 | 2.5 |
| 9332 | Reusable Model, Curb-Style w/ 4 Overflow Ports | 24 x 24 x 36 | 500 | 2.5 |
| 9340 | Reusable Model w/ 4 Overflow Ports | 36 x 24 x 36 | 500 | 1 |
|
9341 |
Reusable Model w/ 4 Overflow Ports | 24 x 24 x 36 | 500 | 1 |
| 9342 | Reusable Model w/ 4 Overflow Ports | 48 x 24 x 36 | 500 | 1 |
| 9343 | Reusable Model w/ 4 Overflow Ports | 30 x 30 x 36 | 500 | 2 |
| Regular Flow Fabric | ||||
| 9840 | Reusable Model w/ 8 Overflow Ports | 24 x 24 x 36 | 500 | 1 |
| 9841 | Reusable Model w/ 8 Overflow Ports | 27 x 27 x 36 | 500 | 2 |
| 9842 | Reusable Model w/ 8 Overflow Ports | 30 x 30 x 36 | 500 | 2 |
| 9844 | Reusable Model w/ 8 Overflow Ports | 32 x 32 x 36 | 500 | 2 |
| 9845 | Reusable Model w/ 8 Overflow Ports | 36 x 36 x 36 | 500 | 2 |
| 9846 | Reusable Model w/ 8 Overflow Ports | 38 x 38 x 36 | 500 | 2 |
| 9847 | Reusable Model w/ 8 Overflow Ports | 18 x 30 x 36 | 500 | 1 |
