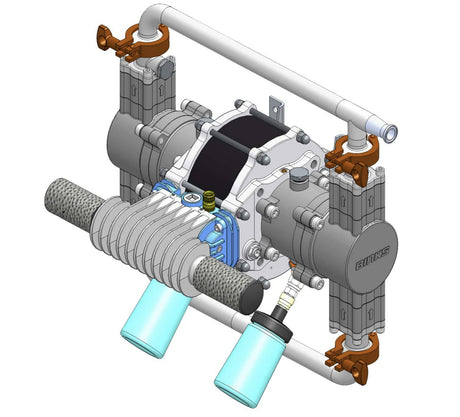

Binks Maple Pump

Overview

  • Low Ice lubricant-free air motor with patented quick exhaust technology removes the risk of valve icing
  • Enclosed Bellows Seals – no exposed seals eliminating shaft-packing lubrication and significantly reducing pump maintenance
  • Stainless steel fluid sections, ideal for waterborne, or solvent-based paints
  • Tungsten Carbide ball seats and ceramic-coated pistons ensure maximum, trouble-free operating life
  • Equal thrust on each stroke produces a smooth, even paint flow
  • Control valve metal spool and sleeve for long life, incorporating our patented magnetic detent to eliminate stall conditions
  • Fluid connections guarantee a smooth internal flow and eliminate paint pockets to ensure a superior finish
  • 5-year pump warranty on materials and workmanship
The Maple Pump is our advanced, air-operated, horizontal piston pump for automotive and general industrial applications. This range of precision-engineered pumps is designed to handle modern shear-sensitive solvent and waterborne paints as well as pure solvents and other paint shop materials. The Maple Pump design combines an energy-efficient air motor with our low-shear fluid section technology providing a smooth consistent flow of material for both automatic and manual spray gun systems.
