Coatmaster Flex
Description
Description

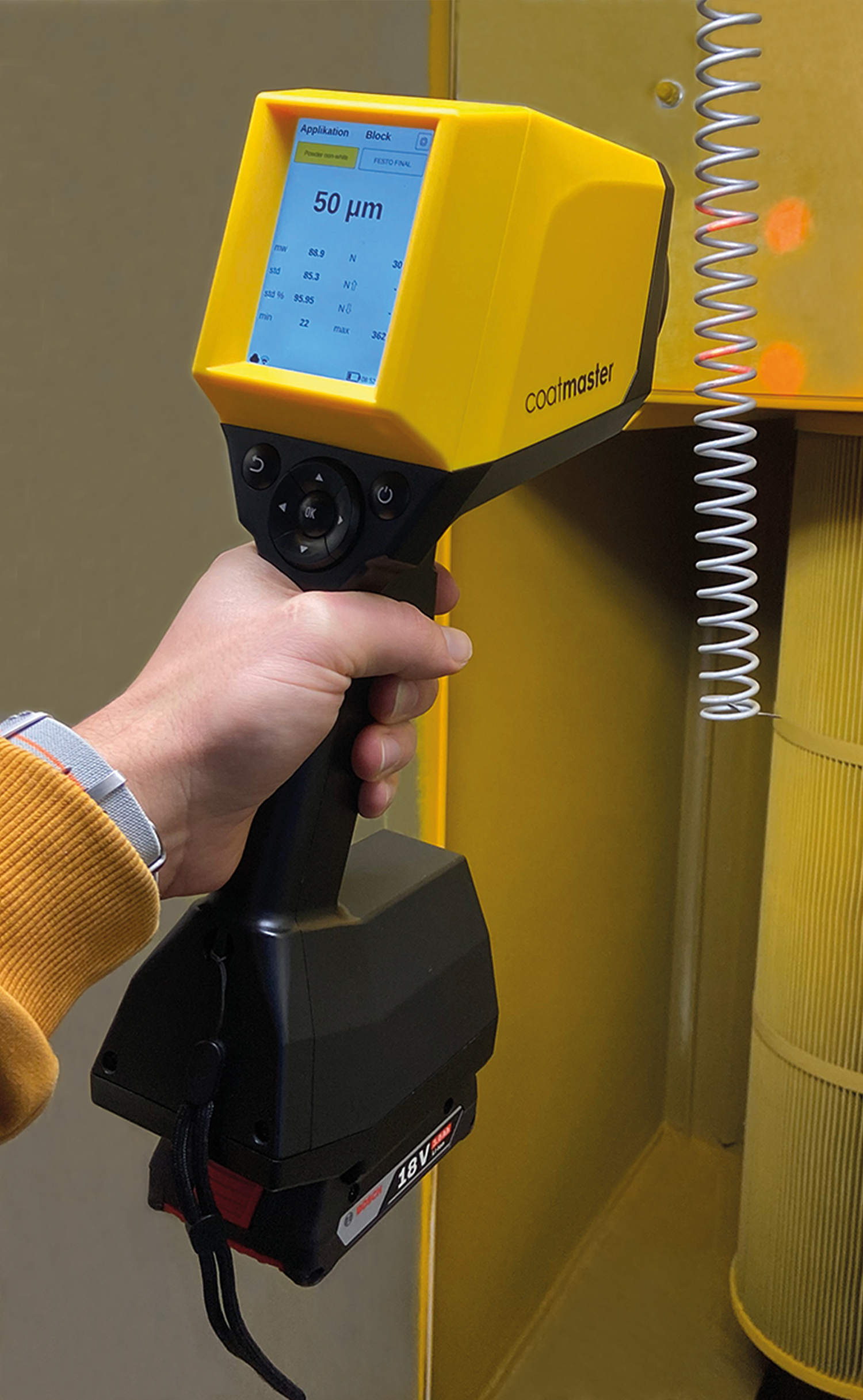

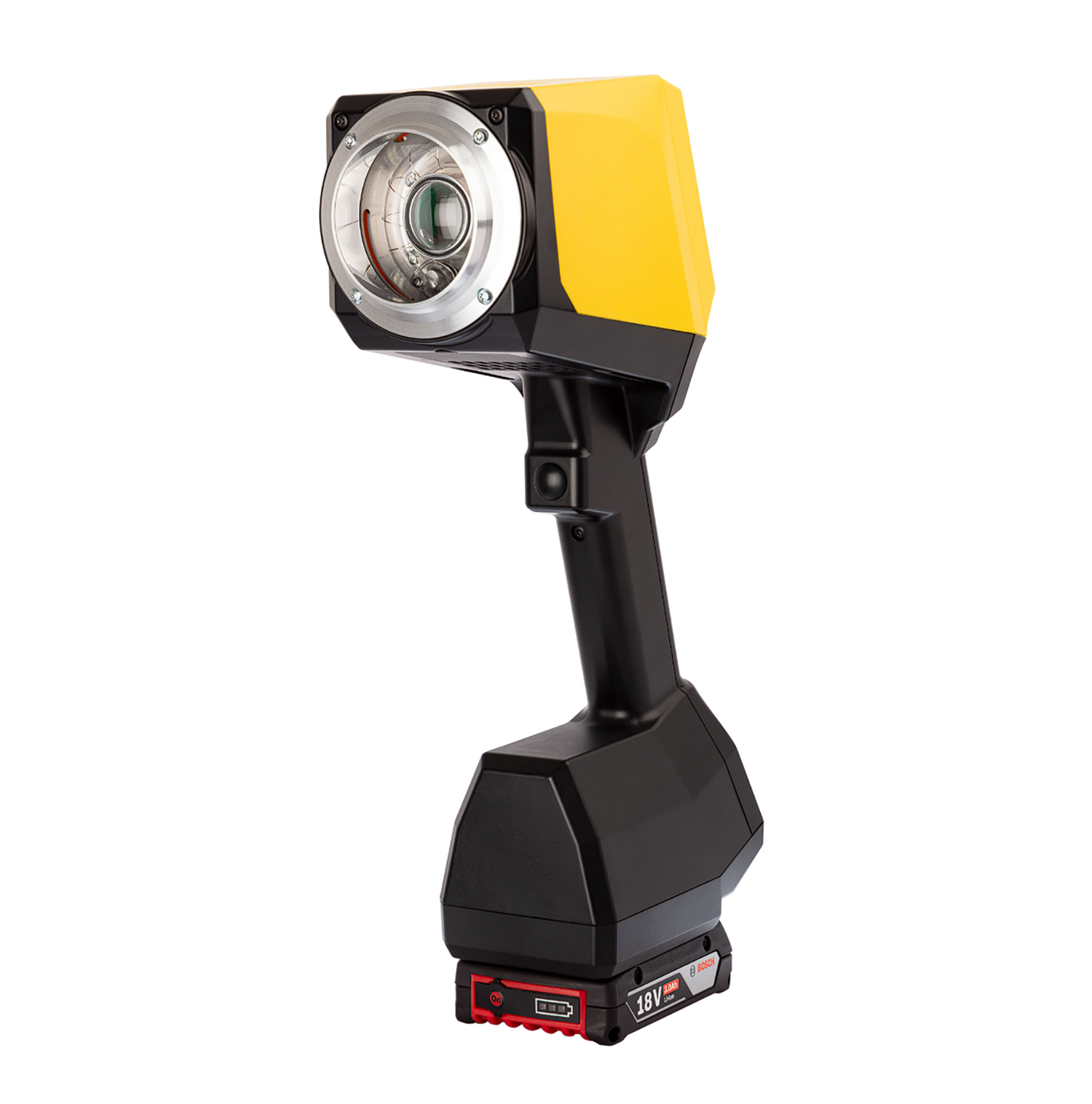

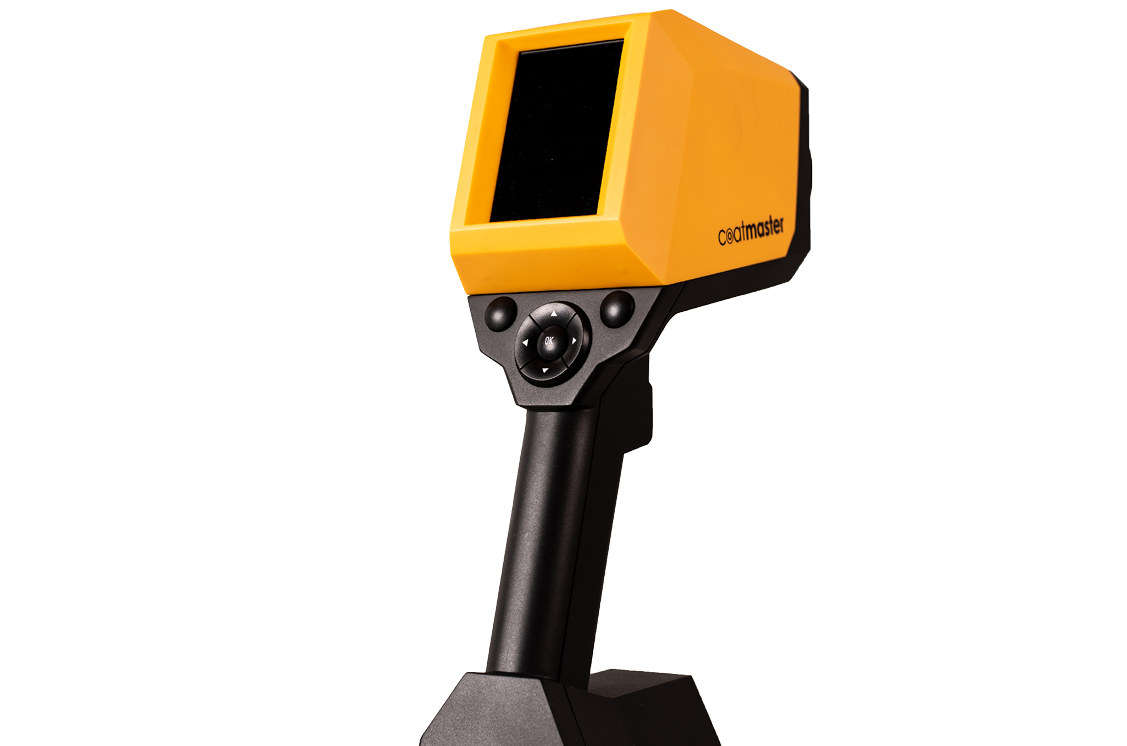

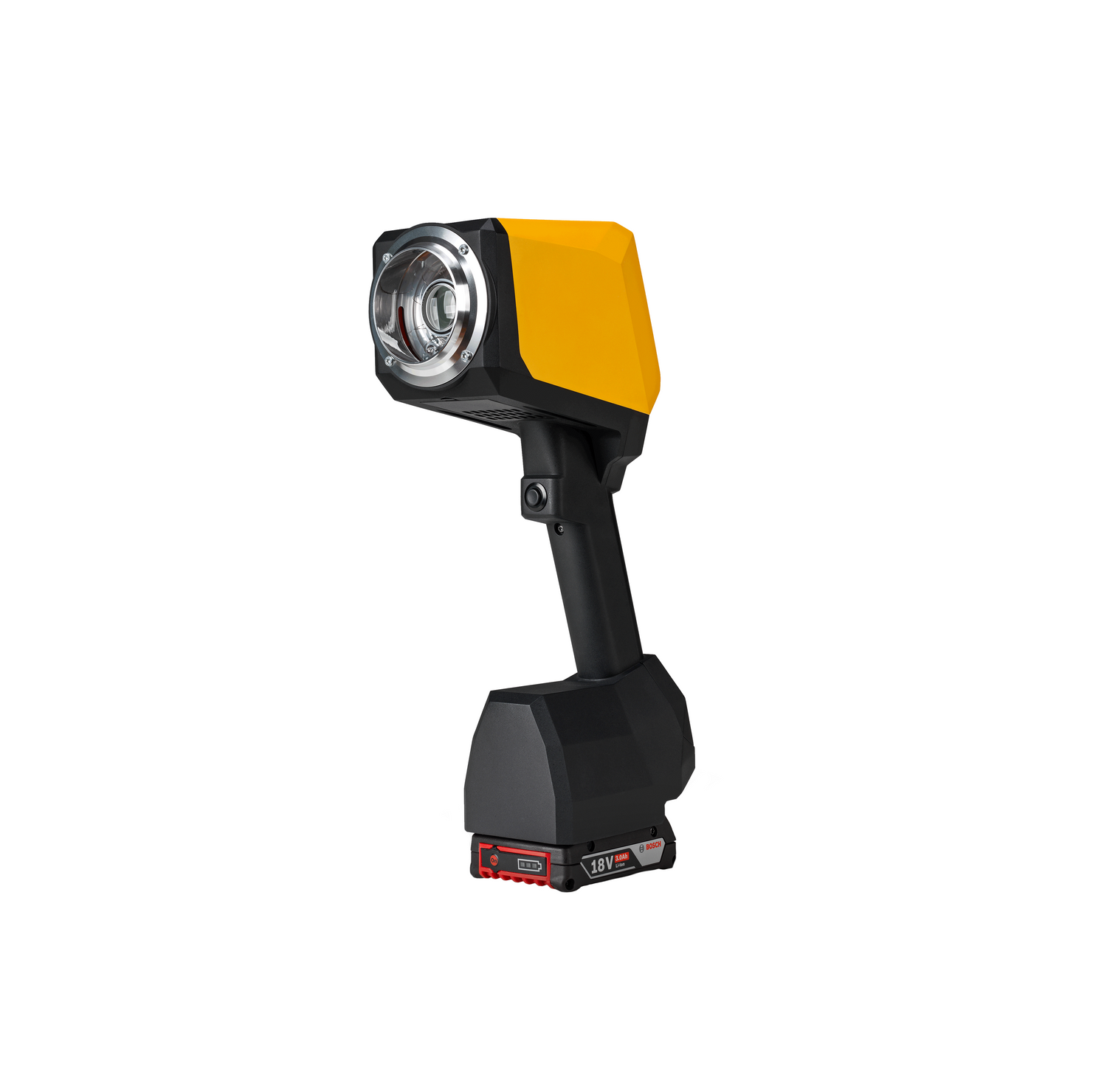

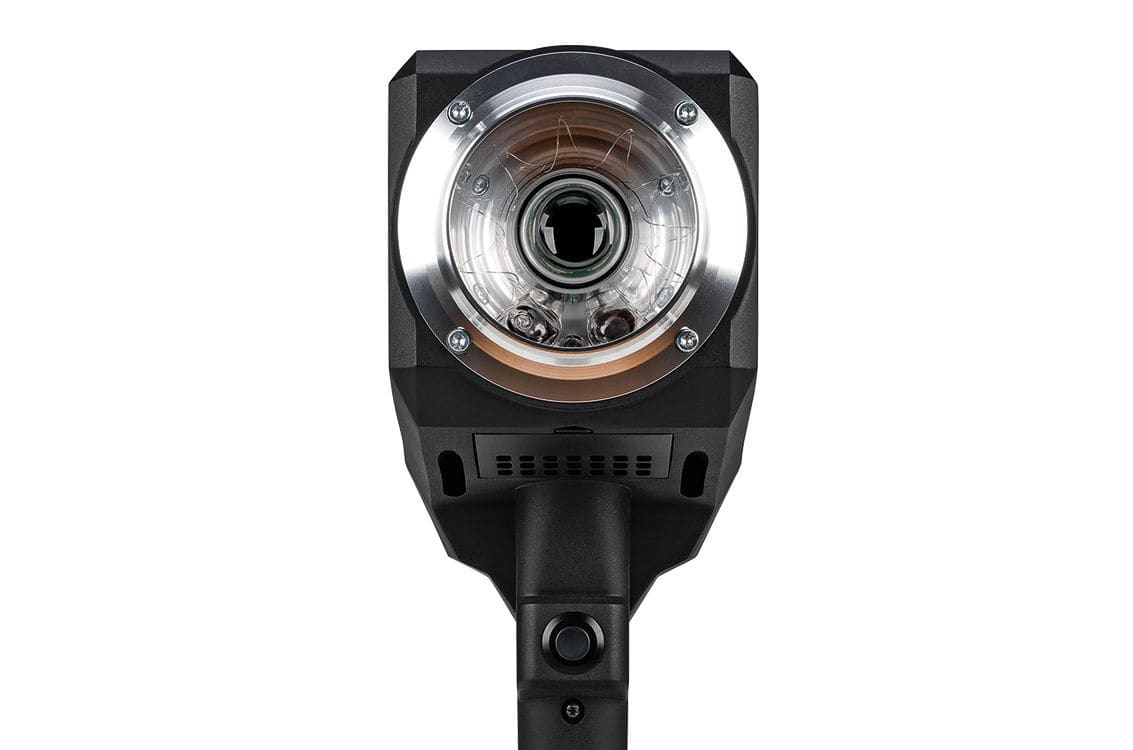

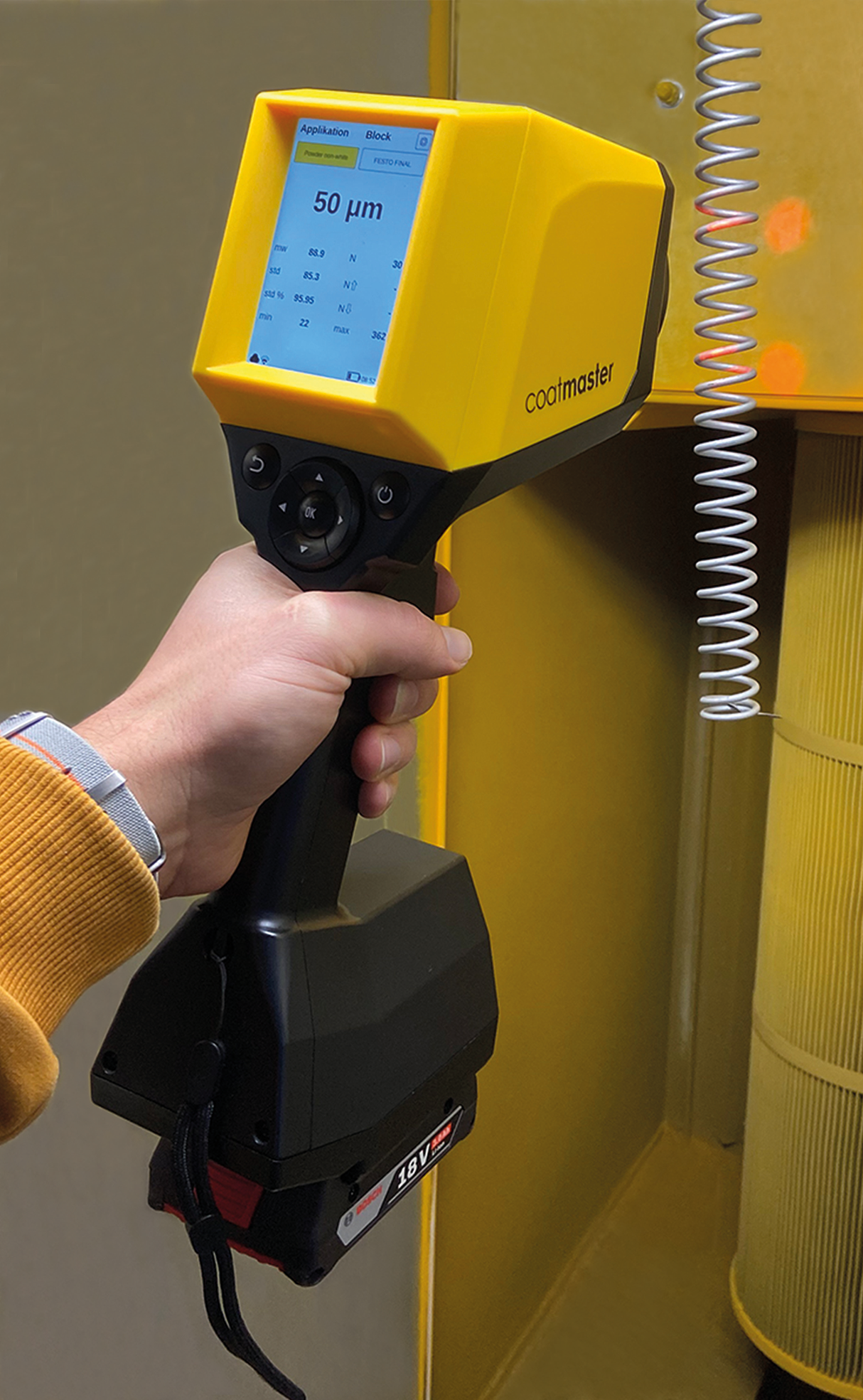

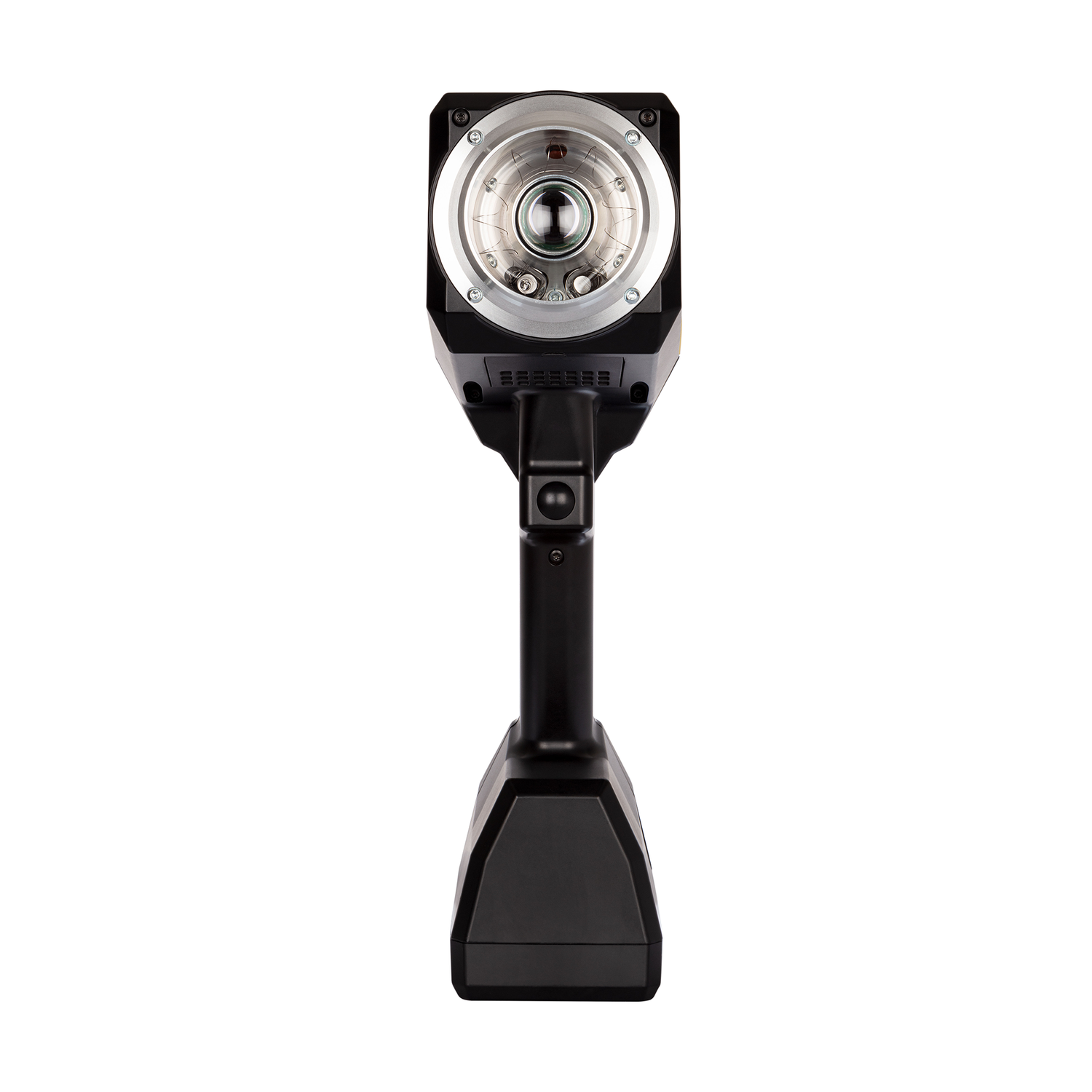

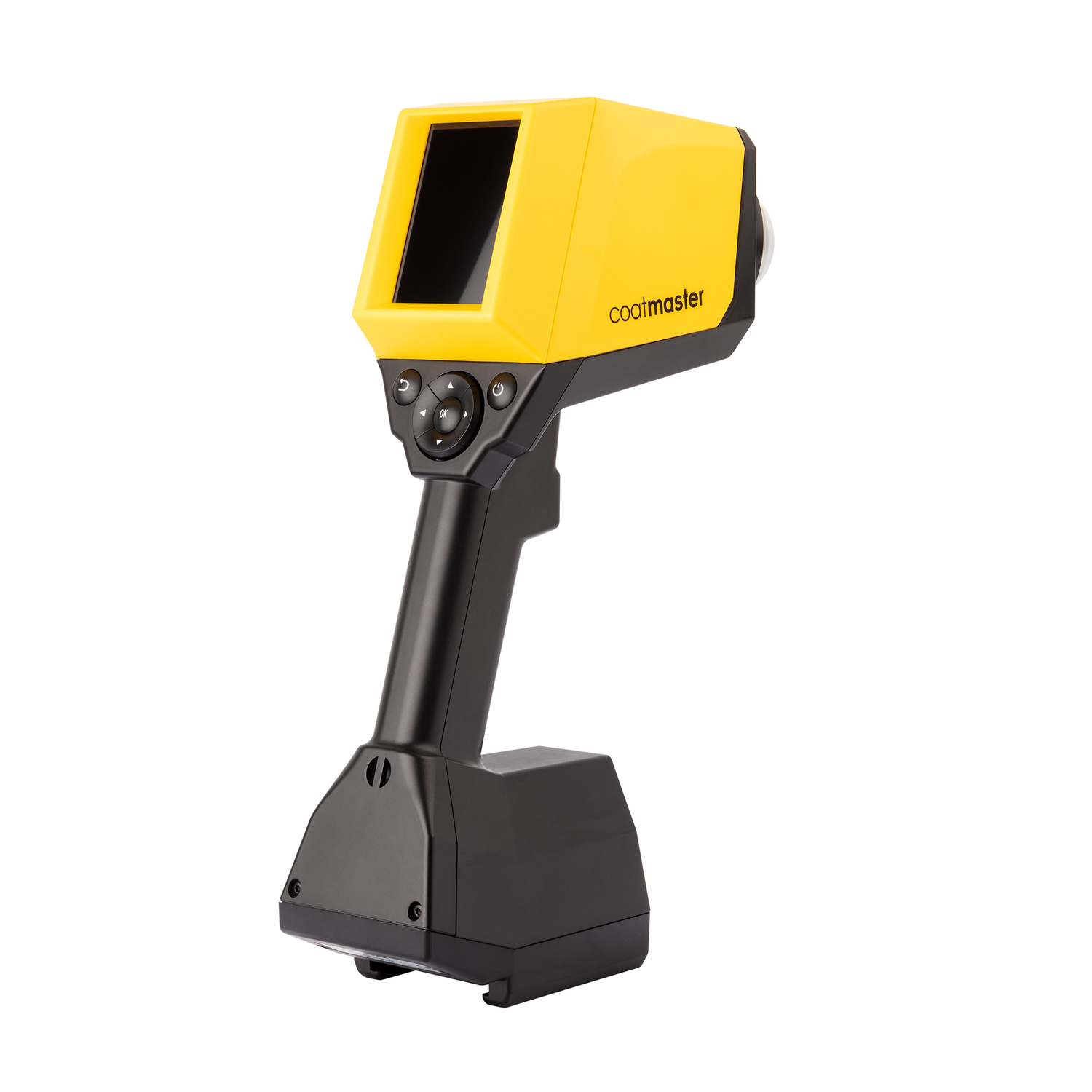

Flex Paint Thickness Gauge
Manufacturer: Coatmaster
Part #: LD5864
Description:
"Just pick it up and start measuring."
This handheld is the most innovative one in terms of contactless coating thickness measurement.

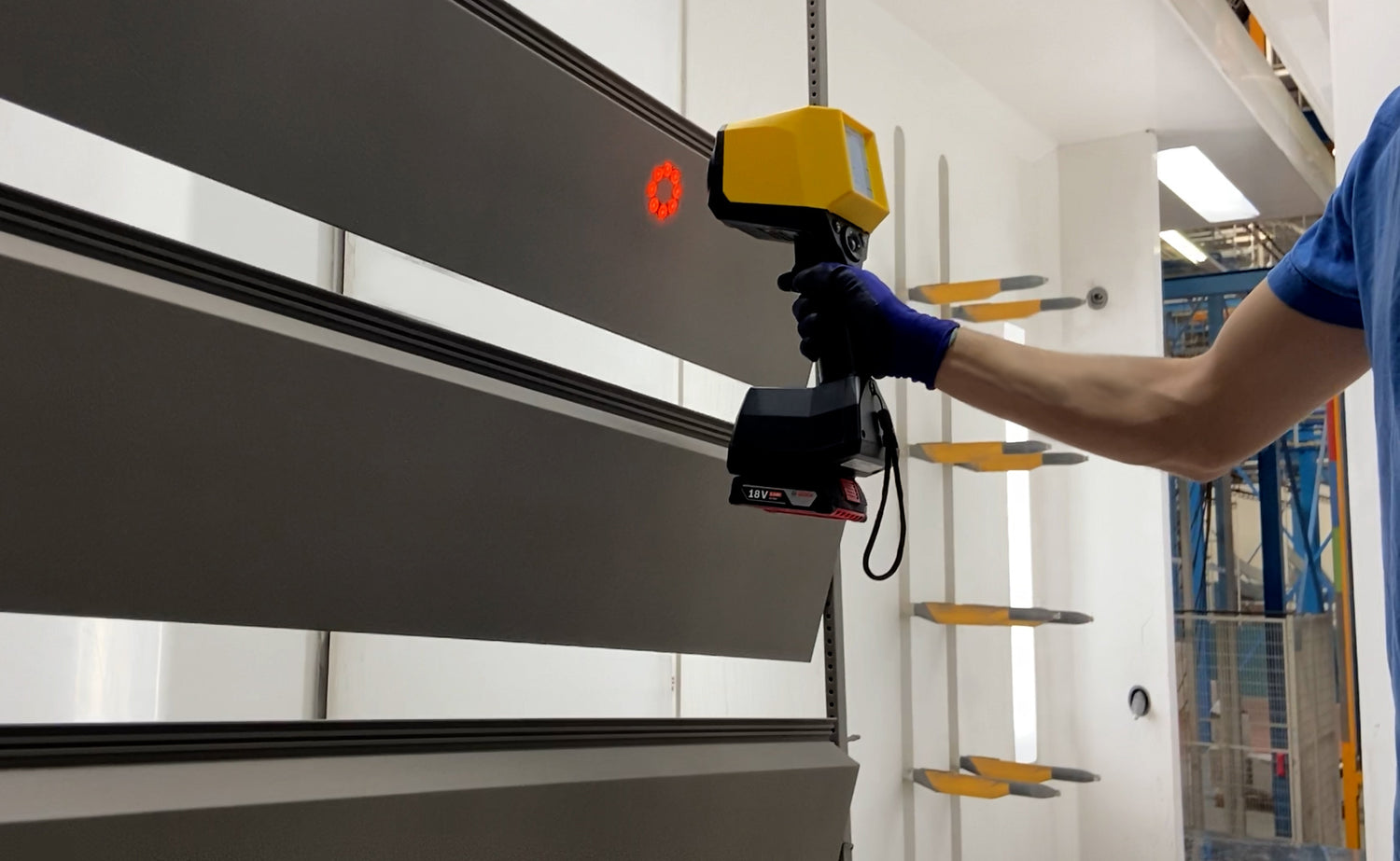

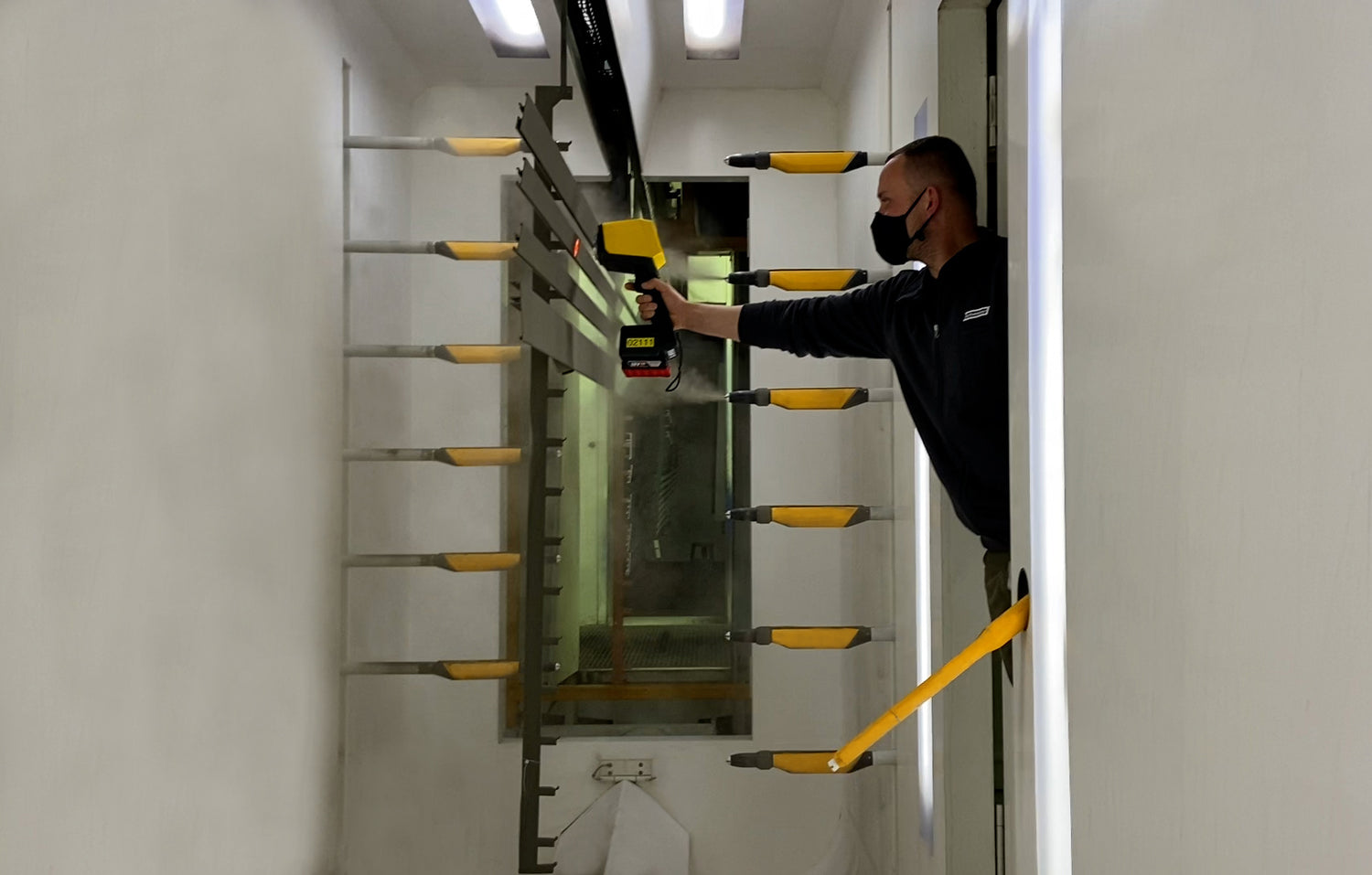

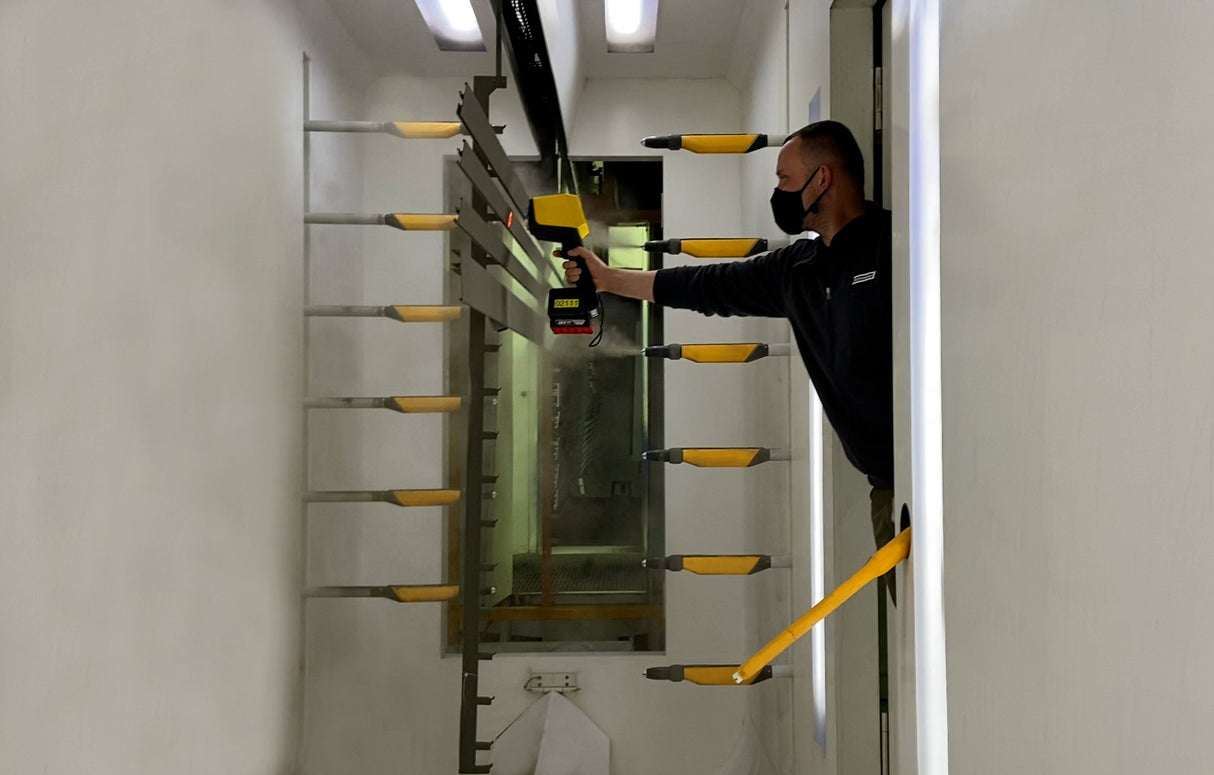

Would you like to measure the coating thickness early in the process in order to save material and avoid coating mistakes? Then the Coatmaster Flex is the right measurement device for you.
Optimize your process and get your Coatmaster Flex now. Convince yourself of the efficiency and save thousands per month of coating material per production line. Reduce rejects and increase production quality.
Rechargeable batteries and charger are not included. You will need at least one (two are recommended) Bosch ProCare 18v, 4Ah or compatible rechargeable battery and charger. Total Finishing does not sell these, you will need to source them.
Parts and Accessories:
Technical Data - Metal Substrate Measuring:
| Powder coatings before curing | 10 - 300 µm |
| Wet coatings before drying | 10 - 300 µm |
| Cured powder coatings | 10 - 500 µm |
| Dried wet coatings | 10 - 500 µm |
| Measuring time | from 20 ms |
| Distance tolerance | ± 70° |
| Measurement on moving and jiggling parts | yes |
| Relative standard deviation* | <2% |
| Smallest measuring point | 2mm |
| Works on all colors (incl. white) | yes |
| Real-time data access via ERP and Internet browser | yes |
| Dimensions H x W x D | 15" x 4" x 8" |
| Weight (without battery) | 3 LB |
| Measurements/battery with application non-white | up to 1,300 |
| Standby time/battery | up to 7.5 h |
Ex Works from Switzerland- You will be contacted with a freight quote
