DENRAY DOWNDRAFT CARTRIDGE FILTER SYSTEMS
Denray Machine's cartridge filter systems are one of the best on the market. Our tables come with 80/20 cartridge filters, which clean with a 99.95% capture rate at .5 micron. Denray's cartridge filtration tables come with "Jet Pulse" pushbutton cleaning. This line comes in various dimensions to accommodate any size job.

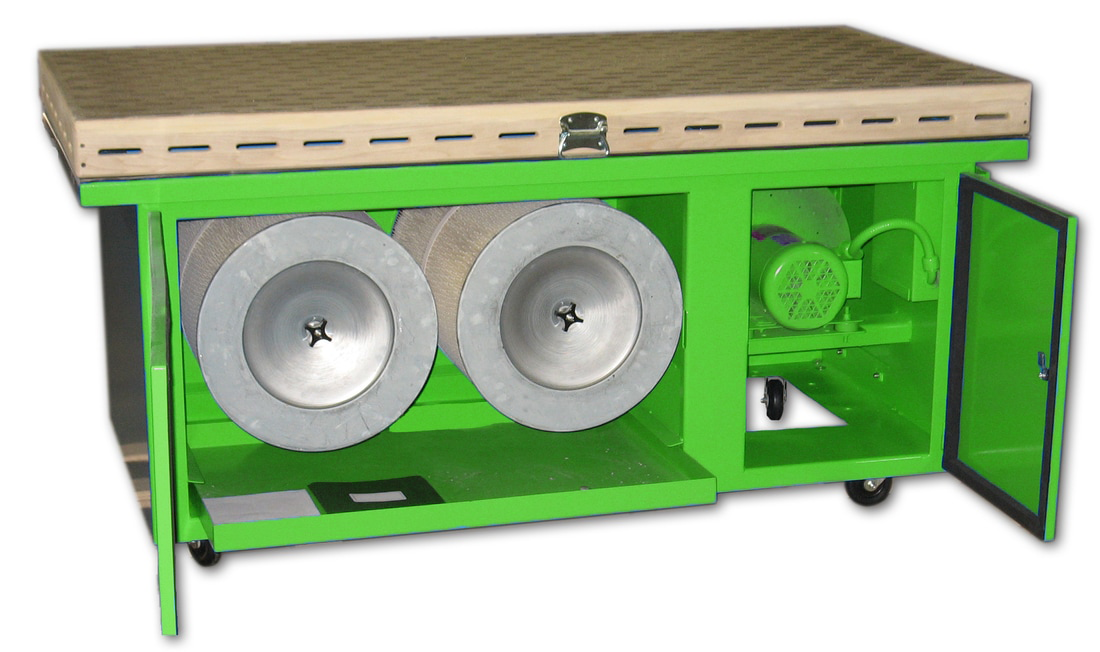

This model is great for medium-sized jobs and can be used while sanding plastics, woods, and finishing materials. This is a popular model for cabinet shops, with two operators using the same table. The 3672B also comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with Denray's "Jet Pulse" push-button cleaning, rubber-coated top, and a magnetic starter.
- 36" x 72"
- 36" HEIGHT
- 2 HP MOTOR
- 3400 CFM
- 84 DECIBELS SOUND LEVEL
- 115 VOLTAGE (17.6 AMPS)
- 220 VOLTAGE (8.8 AMPS)
- 230 VOLTAGE (5.8 AMPS)
- 460 VOLTAGE (2.9 AMPS)
- 575 VOLTAGE (2.3 AMPS)
- Explosion Proof Motor (3 Phase only)
- Light Bar
- Casters
- Auto-timer
- Muffler (reduces sound level 10-12 dbs.)
- 100% Spunbond Polyester Filters
- Carbon Filter Bank (odor only)
- HEPA Filter bank
- Three-sided Hinged Safety Shield
- Magnehelic Gauge
- HDPE Plastic Tabletop
- Hydraulic Height Adjustment
- Larger Motor/Fan Upgrade
Parts and Accessories:
- EO6063 - Cartridge Filters
