Denray Downdraft Cartridge Filter System Model 7200B

$13,582.73

DENRAY DOWNDRAFT CARTRIDGE FILTER SYSTEMS

Denray Machine's cartridge filter systems are one of the best on the market. Our tables come with 80/20 cartridge filters, which clean with a 99.95% capture rate at .5 micron. Denray's cartridge filtration tables come with "Jet Pulse" pushbutton cleaning. This line comes in various dimensions to accommodate any size job.

This model is designed for larger jobs and can accommodate not only the large single-piece but also has the size to have two or three jobs going at the same time on this table. The 7200B is one of the larger tables in Denray's push-button cleaning line. This model comes standard with a rubber-coated top, magnetic starter, and with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron.
  • 72" x 48"
  • 36" HEIGHT
  • 5 HP MOTOR
  • 3900 CFM
  • ​78 DECIBELS SOUND LEVEL
            SINGLE-PHASE
            • 220 VOLTAGE (23 AMPS)
            THREE-PHASE
            • 230 VOLTAGE (13.4 AMPS)
            • 460 VOLTAGE (6.7 AMPS)
            • 575 VOLTAGE (5.3 AMPS)
                Additional Options:
                • Explosion Proof Motor (3 Phase only)
                • Light Bar
                • Casters
                • Auto-timer

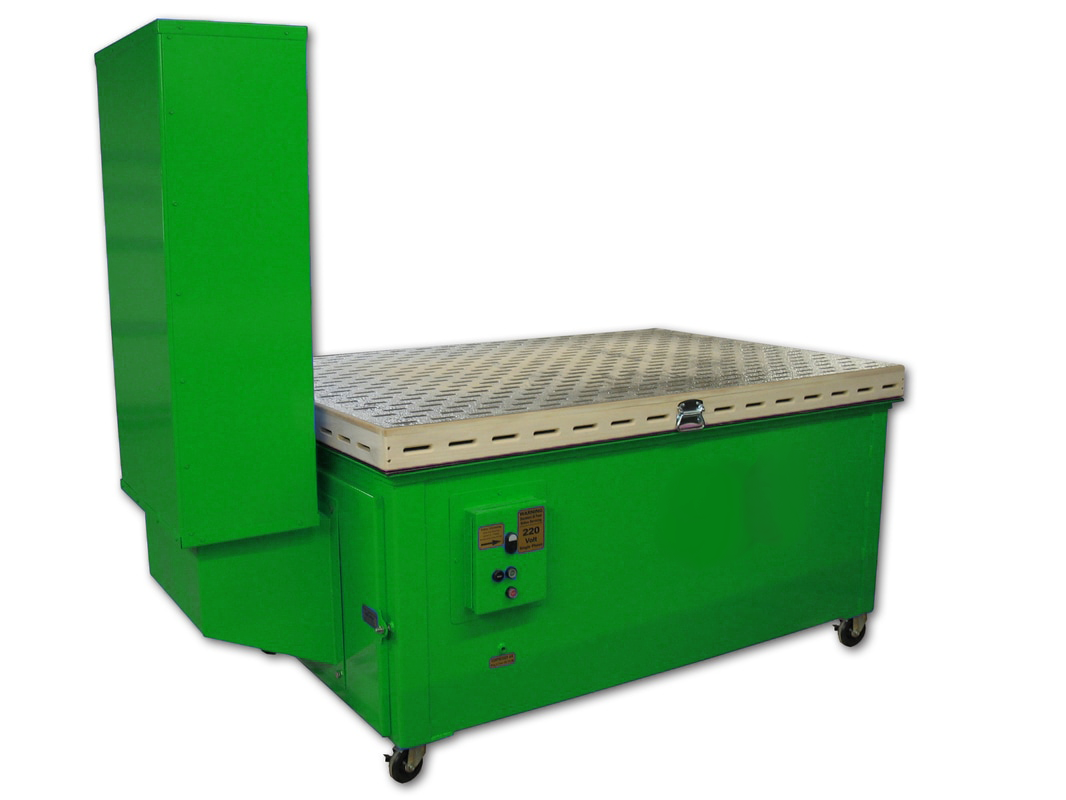

                • Muffler (reduces sound level 10-12 dbs.)
                • 100% Spunbond Polyester Filters
                • Carbon Filter Bank (odor only)
                • HEPA Filter bank
                • Three-sided Hinged Safety Shield
                • Magnehelic Gauge
                • HDPE Plastic Tabletop
                • Hydraulic Height Adjustment
                • Larger Motor/Fan Upgrade

                FOB Mount Vernon, Missouri - You will be contacted with a freight quote or you can arrange your own freight.  Forklift required at the time of delivery.
