Hosco Fittings and Connections - SST Fittings and Adaptors

Hosco Fittings and Connections - SST Fittings and Adaptors

Hosco Fittings and Adapters are available in a wide variety of configurations with “in-line”, 45 and 90 degree angle connection points. All of the Fittings and Adapters are constructed using the “smooth bore, cavity free” features and have large bore circulation flow passageways as standard to minimize shear and resultant pressure loss. Special manufacturing techniques also provide cavity free operation to prevent material “pack out” or contamination and easy to flush and clean in place. Connection points are NPT Male or Female ends from 1/8” to ½”, NPS Male in 1/8” to 3/8” or Female (Swivel Nut) in 1/4” or 3/8”, JIC (M) ends from 1/8” thru 3/8”, Compression ends from 1/4” thru 5/8” (10mm, 12mm, 14mm, 16mm, 18mm plus DIN style in 13mm and 15mm) and Tube Stub ends in 1/4”, 5/16”, 3/8” or ½” (10mm, 12mm, 14mm, 16mm). In addition, there are many bulkhead versions and some reverse bulkhead versions as well.

Feature and Benefits:
Multiple Configurations

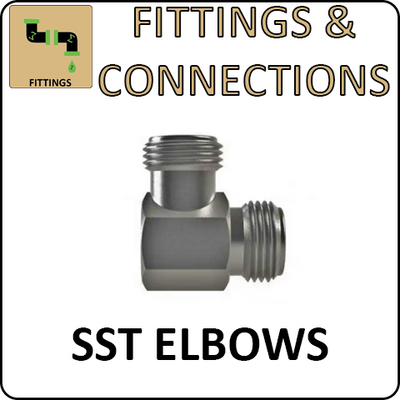

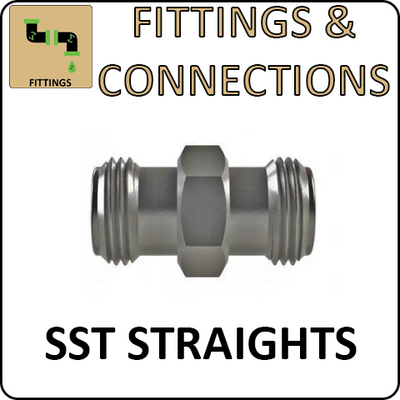

• In-line, 45 or 90 degree inlet/outlet(s) versions

• 1/8”, 1/4”, 3/8”, ½”, and 5/8” inlet/outlet sizes (10mm, 12mm, 14mm,16mm, and DIN style 13mm and 15mm)
• NPT (BSPT/PT), NPS (BSPP/PF), JIC(M), Compression and Tube Stub connection points
• Bulkhead and Reverse Bulkhead options on some sizes

SST Construction
• Long life

Cavity Free & Smooth Bore Design
• To minimize material pack out or “dirt in paint” and provide easy to clean and flush components

Low Shear Design
• Large flow passageways minimize shear and coating degradation and subsequent pressure or flowrate losses

Hosco stands ready with the products and the expertise to deliver clean, contaminate-free paints and coatings. Our products offer smooth bore, “cavity-free” stainless steel fittings and accessories designed specifically for the use in manual or automated paint circulating and application finishing systems. Hosco’s global customer base and application environments include automotive assembly and component manufacture, truck and bus, farm and construction equipment, and aerospace industries.

Hosco offers standardized capability for circulation systems and application finishing globally while being the only supplier of both inch and metric smooth-bore, cavity free and micro finished valves and fittings designed specifically for paint.

Our experts are standing by to help you select the right feeding method for your application. With more than 30 years of industry experience. Total Finishing Supplies has the right expertise. Please call or text us at 503-545-3176.  We’re on standby to help.
