Mi-T-M  |  SKU: HSP-3504-3MGK

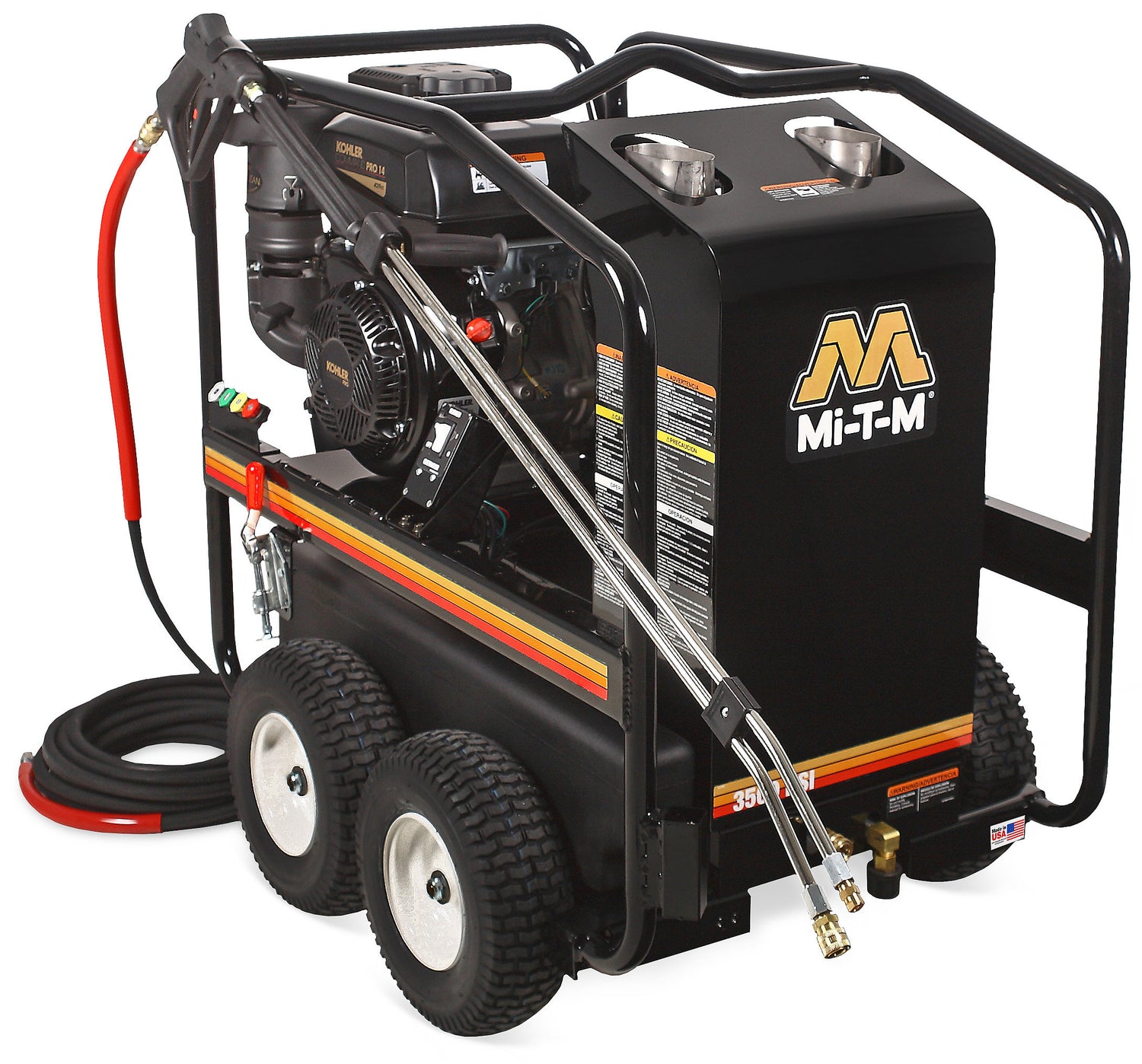

HSP Series Gasoline Direct Drive - HSP-3504-3MGK

Regular price $9,427.00
Shipping calculated at checkout.

HSP Series Gasoline Direct Drive - HSP-3504-3MGK is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Description

HSP-3504-3MGK

The Electro Magnetic Firing (EMF) system of the HSP Series, along with its unique burner design, makes this popular hot water pressure washer one of the most "in-demand" in the industry. It's a great solution for removing heavy mud from construction and ag equipment.

Pump: Preset stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve · Low pressure detergent injector

Frame: Reinforced powder coated steel tube frame with center balanced lift · Convenient gun/wand holder and hose wrap · 13-inch flat-free tires

Components: Top-fired powder coated heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off



Specifications

  • PSI

    3500

  • GPM

    3.3

  • Displacement/ Engine

    429cc Kohler CH440 OHV

  • Pump

    AR, External Bypass

  • Mi-T-M No.

    3-0194

  • Fuel Tank Capacity

    1.70 gallon

  • Burner Fuel Tank Capacity

    5.5 gallon

  • Burner Fuel Cons.

    2.14 gph

  • BTU Per Hour

    294,000

Weights & Dimensions

  • Net Weight

    428.00 lbs.

  • Shipping Weight

    551.00 lbs.

  • Length

    43.00 in.

  • Width

    30.00 in.

  • Height

    41.00 in.



Options

  • HX-0274 Rain Cap

    Protects boiler from moisture build-up when unit is left outside

  • HX-0279 Hour Meter

    Displays the number of hours unit has been in operation

  • HX-0280 Adjustable Thermostat

    Operator is able to adjust outlet water temperature between 98°-248°F

  • HX-0281 Hour Meter / Adjustable Thermostat

    Displays the number of hours unit has been in operation and also the operator is able to adjust outlet water temperature between 98°-248°F



Limited Warranties:
  • 3 Year Coil
  • 3 Year Kohler Engine
  • 7 Year AR Pump



View Product Sheet
