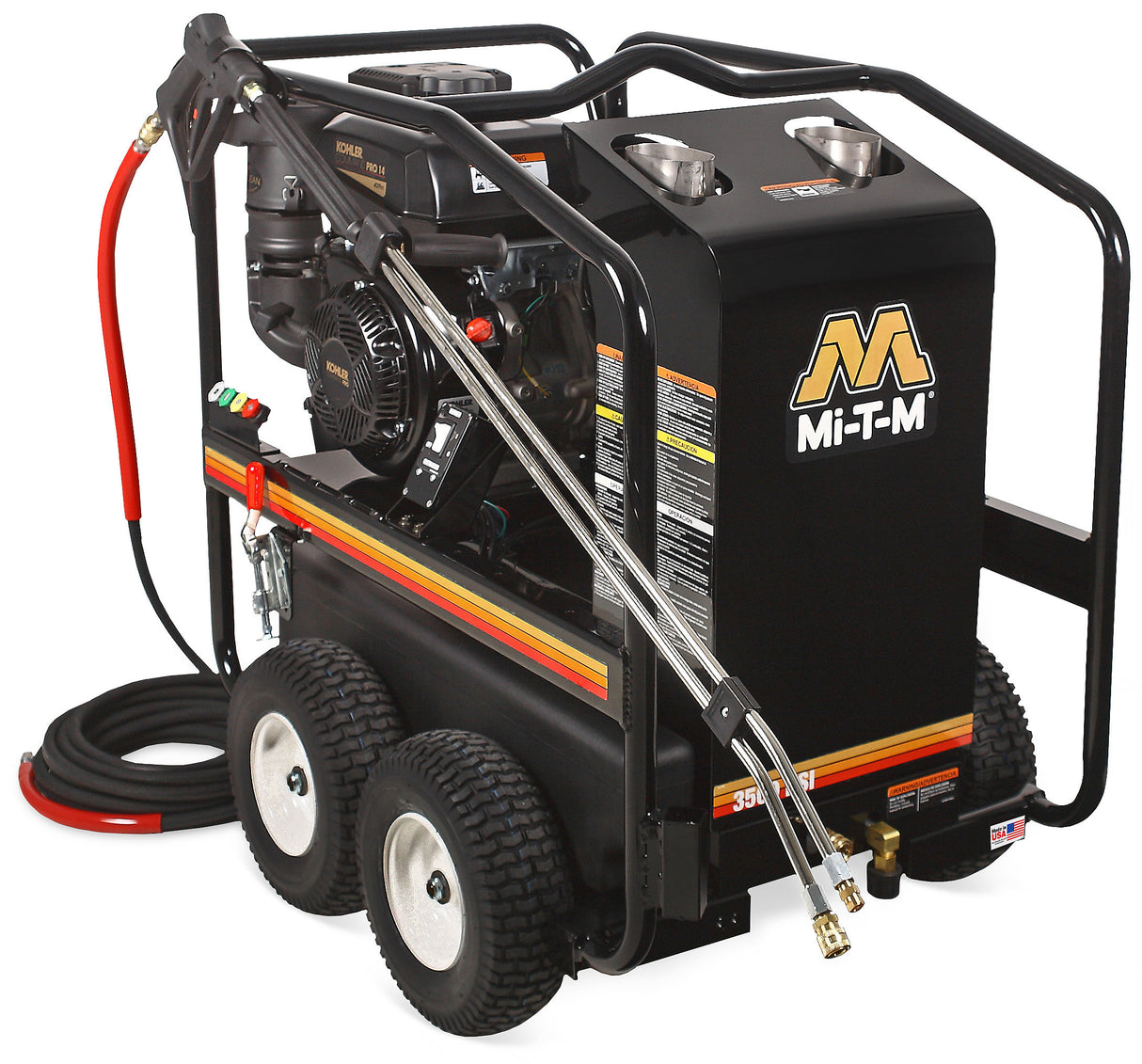

HSP Series Gasoline Direct Drive - HSP-3504-3MGK
HSP Series Gasoline Direct Drive - HSP-3504-3MGK
HSP-3504-3MGK
The Electro Magnetic Firing (EMF) system of the HSP Series, along with its unique burner design, makes this popular hot water pressure washer one of the most "in-demand" in the industry. It's a great solution for removing heavy mud from construction and ag equipment.
Pump: Preset stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve · Low pressure detergent injector
Frame: Reinforced powder coated steel tube frame with center balanced lift · Convenient gun/wand holder and hose wrap · 13-inch flat-free tires
Components: Top-fired powder coated heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off
Specifications
-
PSI
3500
-
GPM
3.3
-
Displacement/ Engine
429cc Kohler CH440 OHV
-
Pump
AR, External Bypass
-
Mi-T-M No.
3-0194
-
Fuel Tank Capacity
1.70 gallon
-
Burner Fuel Tank Capacity
5.5 gallon
-
Burner Fuel Cons.
2.14 gph
-
BTU Per Hour
294,000
Weights & Dimensions
-
Net Weight
428.00 lbs.
-
Shipping Weight
551.00 lbs.
-
Length
43.00 in.
-
Width
30.00 in.
-
Height
41.00 in.
Options
-
HX-0274 Rain Cap
Protects boiler from moisture build-up when unit is left outside
-
HX-0279 Hour Meter
Displays the number of hours unit has been in operation
-
HX-0280 Adjustable Thermostat
Operator is able to adjust outlet water temperature between 98°-248°F
-
HX-0281 Hour Meter / Adjustable Thermostat
Displays the number of hours unit has been in operation and also the operator is able to adjust outlet water temperature between 98°-248°F
Limited Warranties:
- 3 Year Coil
- 3 Year Kohler Engine
- 7 Year AR Pump
