Total Finishing 5 Gallon Agitator With Stainless Steel Lid
Regular price
Unit price
/
Unavailable
Shipping calculated at checkout.
Total Finishing 5 Gallon Agitator With Stainless Steel Lid
Regular price
Unit price
/
Unavailable

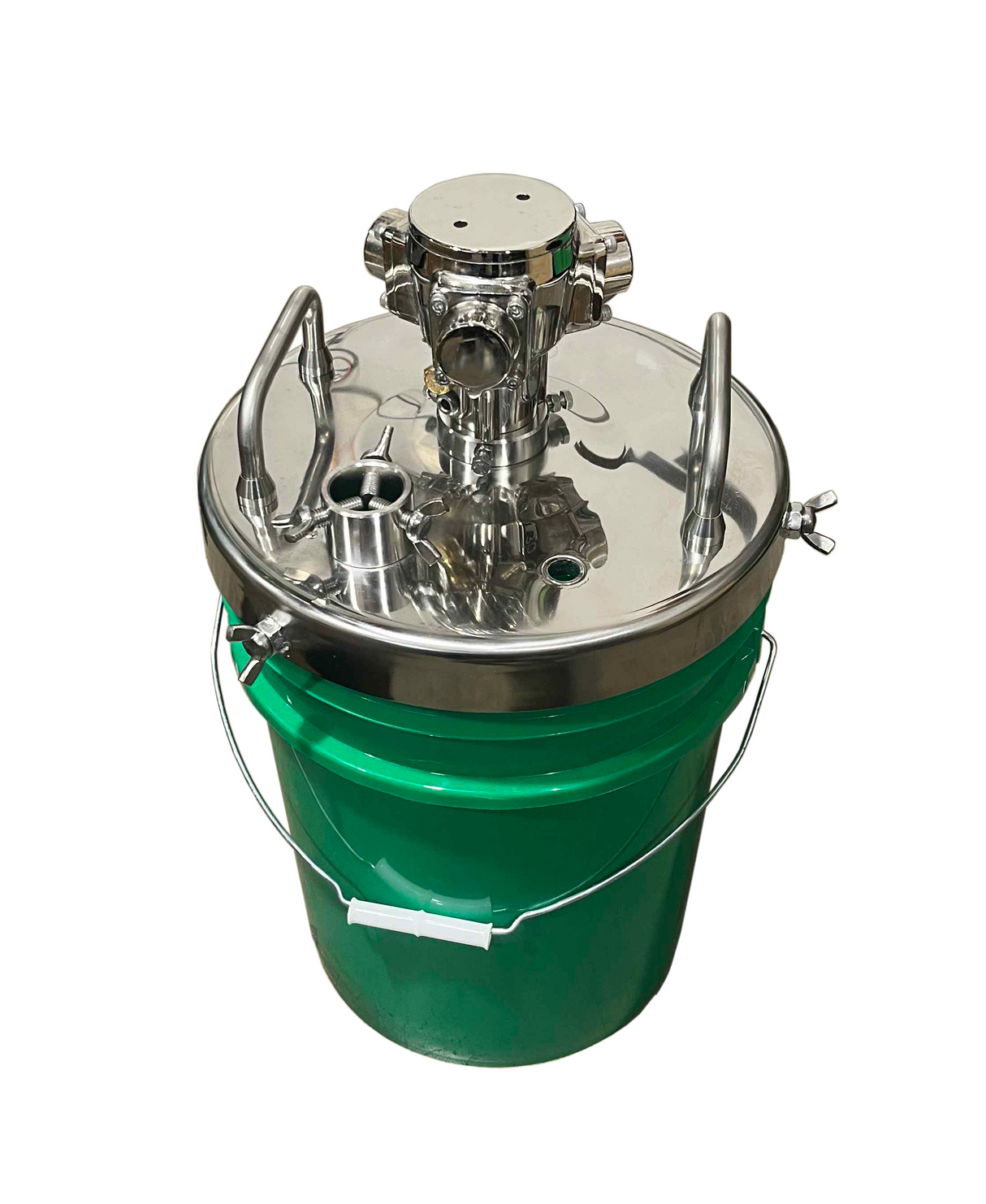

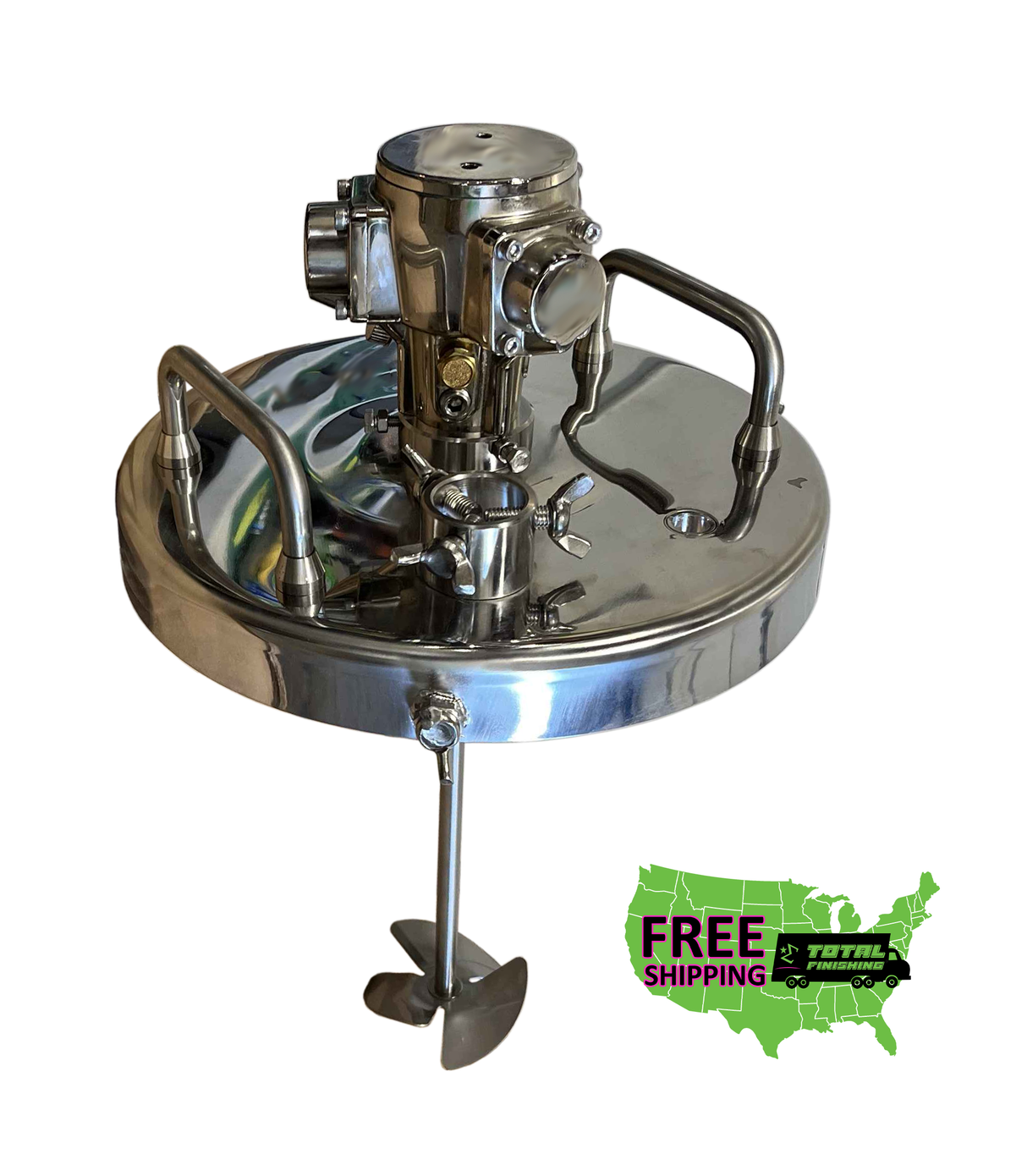

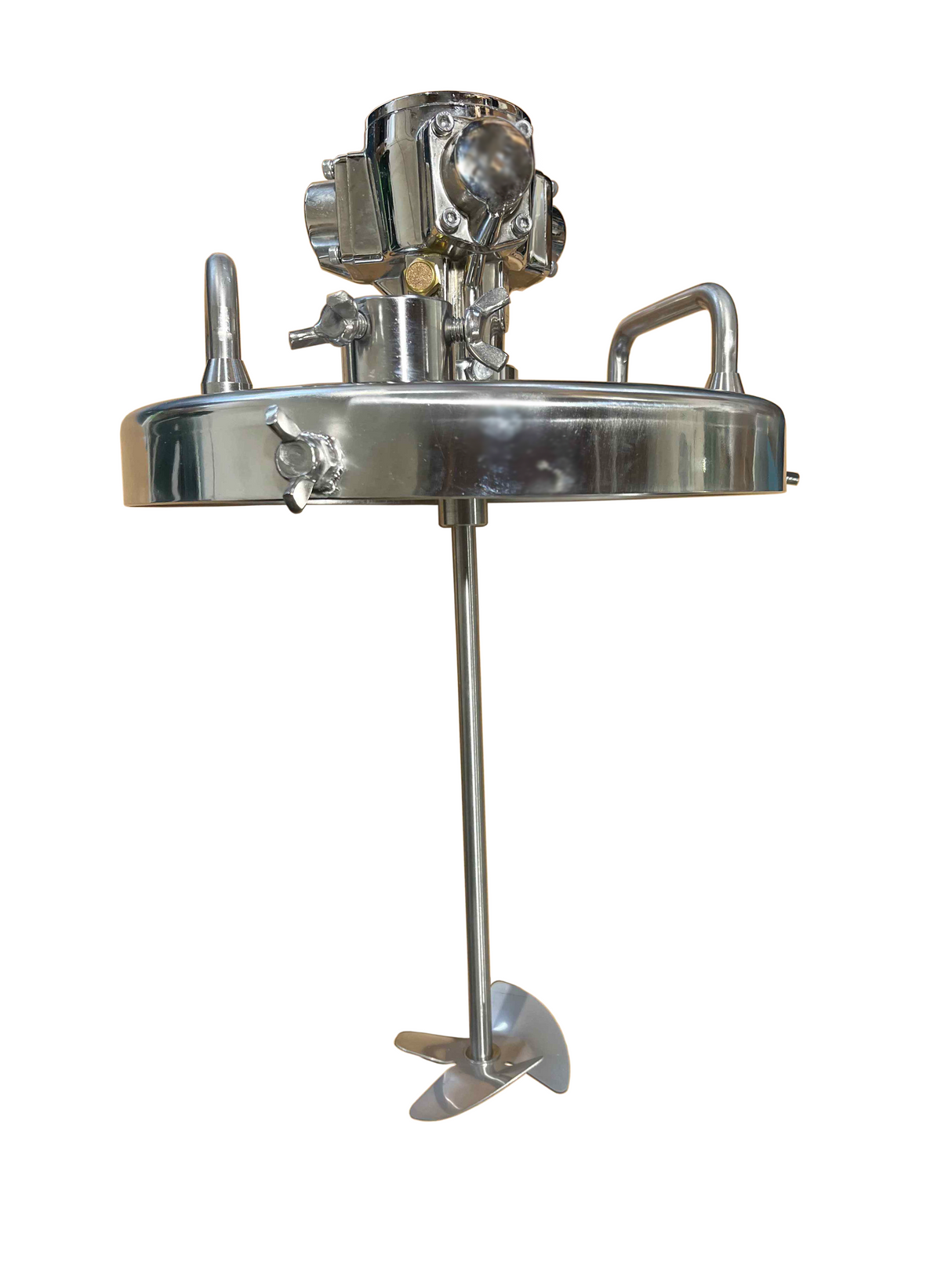

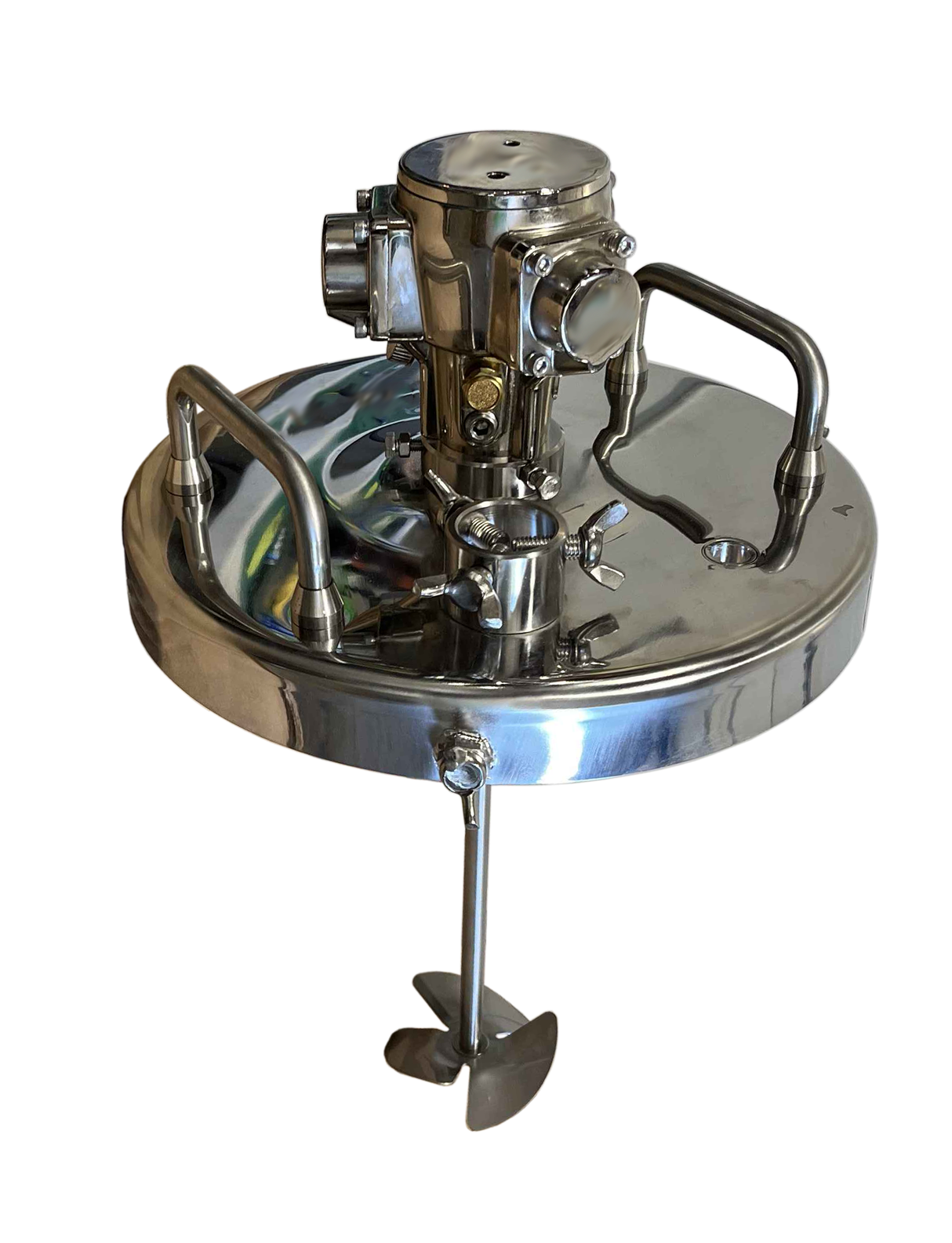

5 Gallon Agitator With Stainless Steel Lid
Manufacturer: Total Finishing Supplies
Part Number: TFS-AGITATOR-05SS
Description: Piston type agitator with stainless steel lid for 5 gallon buckets. (Bucket not included). All Stainless Steel wetted parts.
Specifications:
| Horsepower | 1/8 |
| Consumption | 0.7 CFM |
| Stir Capacity (gal) | 5 |
| Axis Dimensions (in.) | Ø 0.47 x 13.12 |
| Carton Size (in.) | 14.96 x 13.78 x 8.86 |
| Air Pressure (psi) | 101.5 |
| Weight (lbs) | 11.24 |
Literature:
Parts and Accessories:
| Ref. No. | Part No. | Description | QTY |
| 1 | TFS-AGITATOR-#1 | Air motor | 1 |
| 2 | TFS-AGITATOR-#2 | Air motor damper | 1 |
| 3 | TFS-AGITATOR-#3 | Air motor fixing seat | 1 |
| 4 | TFS-AGITATOR-#4 | Air motor screw | 3 |
| 5 | TFS-AGITATOR-#5 | Air motor fixing nut | 3 |
| 7 | TFS-AGITATOR-#7 | Motor connector | 1 |
| 8 | TFS-AGITATOR-#8 | Connector fixing screw | 4 |
| 9 | TFS-AGITATOR-#9 | Handle | 2 |
| 10 | TFS-AGITATOR-#10 | Annular guard used with handle | 4 |
| 11 | TFS-AGITATOR-#11 | Tank lid | 1 |
| 12 | TFS-AGITATOR-#12 | Tank lid screw | 6 |
| 14 | TFS-AGITATOR-#14 | Tank lid nut | 3 |
| 15 | TFS-AGITATOR-#15 | Handle fixing screw | 4 |
| 16 | TFS-AGITATOR-#16 | Pipe fixing seat | 1 |
| 18 | TFS-AGITATOR-#18 | Automatic agitating rod | 1 |
| 19 | TFS-AGITATOR-#19 | Gasket | 2 |
| 20 | TFS-AGITATOR-#20 | Agitating rod blade | 1 |
| 21 | TFS-AGITATOR-#21 | Spring gasket | 1 |
| 22 | TFS-AGITATOR-#22 | Inner fixing screw | 1 |
| 23 | TFS-AGITATOR-#23 | Backflow pipe fixing seat | 1 |
