10' x 9' Paint Spray Booth Exhaust Chamber/Plenum Only

$10,310.00 $14,725.00

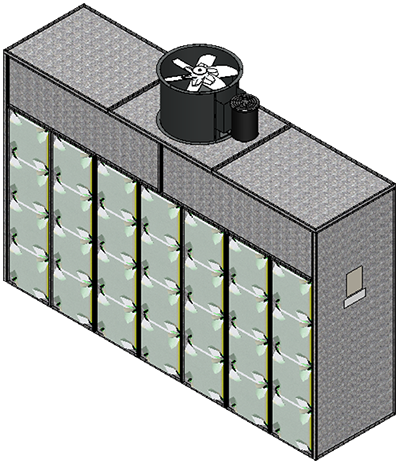

Paint Spray Booth Exhaust Chamber/Plenum Only

Model F88E:

Outside Dimensions: 10’4” Wide X 9’2” High X 4’2” Deep
Exhaust Fan: 1- 30" Dia. 8-Blade, 6,400 CFM @ ½” S.P.
Motor: 1- O.T.D.P. 3HP, 230 VAC, 3 Phase
Exhaust Cells: 16- 20” X 20” with 16 Arrestor Pads
Also Includes: Assembly Screws, 1 Manometer & 1 Air Valve
Construction: Open Face, 18GA Galvanized
Forklift required at the time of delivery.

Made in the USA

Additional Options Include:

Additional Accessories:

Ships by Truck Freight.

Drawing of Paint Spray Booth Exhaust Chamber/Plenum Only

Assembly Drawing

 NFPA Guide

FOB Weiser, ID - You will be contacted with a freight quote or you can arrange your own freight.  Forklift required at the time of delivery.

Manufacturers Warranty
TFS, warrants that all equipment sold hereby will be of the kind and quality described in this agreement. The equipment manufactured by TFS is guaranteed to be free from all latent defects in material and workmanship disclosed under normal use and service, and should any part thereof be found, within one year from the date of shipment, to be so defective at the time shipped, TFS will repair or, at TFS's option, replace said part. In the case of standard apparatus furnished, but not manufactured by TFS, such as fans, motors, ovens, heaters, controls, and light fixtures. TFS extends to the purchaser the same guarantee as is given by their respective manufacturers. TFS is not required to provide equipment or meet performance specifications or standards not expressly set forth in this agreement. TFS's liability hereunder, however, is expressly limited to the materials furnished by it and does not extend to any damages to building, contents, products, or persons. This warranty shall not apply to any of TFS's apparatus which shall have been altered or repaired outside of TFS's factory in any way so as, in TFS's judgment, to affect its performance, nor which has been subjected to misuse, negligence, accident or improper installation. IT IS EXPRESSLY AGREED THAT THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF FITNESS OR MERCHANTABILITY, EXPRESS OR IMPLIED.

Spray Booths, duct and accessories are custom made when ordered or in very small batches. They are non-returnable
