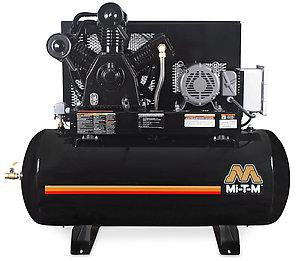

120-Gallon Two Stage Electric Simplex - AES-20315-120HM

$13,051.00



AES-20315-120HM

AES M Series - 15.0 HP Simplex Horizontal

Loaded with standard features, the M Series air compressors are available in many motor configurations. Offered with vertical or horizontal tank options, this series comes complete to meet the most demanding industrial applications.

Compressor Pump: Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor: Industrial low RPM motor · Magnetic start for thermal overload protection

Frame: Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Specifications

  • CFM @ 175

    46.5

  • Horsepower/Motor

    15.0 HP, 200V, 3Ø, 44.0A

  • Pump RPM

    990

  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    120 gallon

  • Bolt Down (LxW)

    34.5 x 23.5 in.

Weights & Dimensions

  • Net Weight

    856.00 lbs.

  • Shipping Weight

    935.00 lbs.

  • Length

    74.00 in.

  • Width

    26.50 in.

  • Height

    58.00 in.



Limited Warranties:
  • 1 Year Electric Motor
  • 2 Year Pump Exchange
