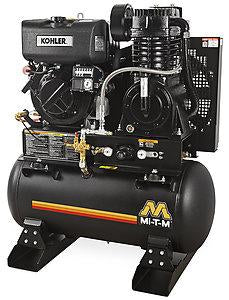

30-Gallon Two Stage Diesel - ABS-9KD-30H




This diesel-powered machine supplies consistent air flow required for commercial and industrial applications. It is designed for optimum performance and productivity and features a large-capacity ASME coded tank.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine: Electric start - battery, box and cables not included · Glow plug equipped for easy starting in cold temperatures

Frame: Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16 gauge powder coated two-piece belt guard · Removable base plate offers flexible installation

Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · Tank drain valve

*Equipped with 150-PSI maximum rated regulator


  • CFM @ 175 PSI*


  • Horsepower/Engine

    9.1 HP Kohler KD440 OHV

  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    30 gallon

  • Engine Idle Control

    Cable Throttle

Weights & Dimensions

  • Net Weight

    483.00 lbs.

  • Shipping Weight

    540.00 lbs.

  • Length

    38.00 in.

  • Width

    23.00 in.

  • Height

    46.50 in.


  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0079 Battery Box, Cables & Tray

    Attaches to engine side of unit

Limited Warranties:
  • 2 Year Pump Exchange
  • 3 Year Kohler Engine
