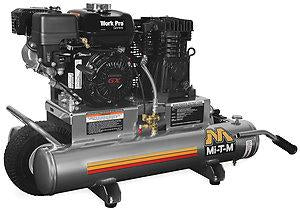

AM1-PH06-08WP
The high performing Work Pro® Series is offered in an 8-gallon electric or gas-driven air compressor. Available as a single or two-stage compressor, it can power everything from impact wrenches and nail guns to paint sprayers and staplers.
Compressor Pump: Splash oil lubricated aluminum crankcase · Stainless-steel braided discharge hose · Oil level sight indicator
Motor: Thermal overload motor protection
Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tire
Components: Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valves · Fly wheel · Quality pilot valve unloader
Specifications
-
CFM @ 90 PSI
9.0
-
Displacement/ Engine
196cc Honda GX200 OHV
-
Compressor
Single Stage, Aluminum
-
Tank Size
8 gallon
-
Engine Idle Control
Pneumatic
Weights & Dimensions
-
Net Weight
135.00 lbs.
-
Shipping Weight
160.00 lbs.
-
Length
44.50 in.
-
Width
18.50 in.
-
Height
27.00 in.
Options
-
AX-0003 Manual Drain/Regulator/Metal Bowl
Drains moisture from air system
Limited Warranties:
- 1 Year Compressor Pump
- 3 Year Honda Engine
