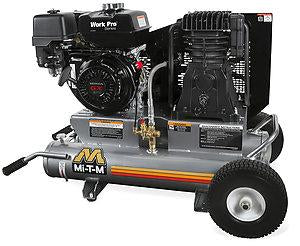

8-Gallon Two Stage Gasoline - AM2-PH09-08WP

$1,955.22



AM2-PH09-08WP

The high performing Work Pro® Series is offered in an 8-gallon electric or gas-driven air compressor. Available as a single or two-stage compressor, it can power everything from impact wrenches and nail guns to paint sprayers and staplers.

Compressor Pump: Splash oil lubricated aluminum crankcase · Stainless-steel braided discharge hose · Oil level sight indicator

Motor: Thermal overload motor protection

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 2 - 10-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valves · Fly wheel · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator



Specifications

  • CFM @ 175 PSI*

    17.2

  • Displacement/ Engine

    270cc Honda GX270 OHV

  • Compressor

    Two Stage, Aluminum

  • Tank Size

    8 gallon

  • Engine Idle Control

    Pneumatic

Weights & Dimensions

  • Net Weight

    175.00 lbs.

  • Shipping Weight

    200.00 lbs.

  • Length

    44.00 in.

  • Width

    26.00 in.

  • Height

    31.00 in.



Options

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

  • AX-0015 Electric Start - Battery and Cables Not Included

    For easy starting

  • IX-0055 Remote Start/Choke

    Remote start/choke; 6-foot wire extension for key switch; you will also need to order electric start option, AX-0015

  • IX-0059 Remote Start/Choke

    Remote start/choke; 6-foot wire extension for key switch, sealed cable; you will also need to order electric start option, AX-0015



Limited Warranties:
  • 1 Year Compressor Pump
  • 3 Year Honda Engine
