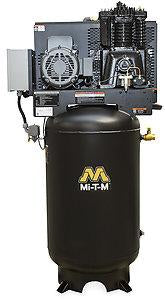

ACS-23175-80VM
ACS M Series - 7.5 HP Simplex Vertical
Loaded with standard features, the M Series air compressors are available in many motor configurations. Offered with vertical or horizontal tank options, this series comes complete to meet the most demanding industrial applications.
Compressor Pump: Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor: Industrial low RPM motor · Magnetic start for thermal overload protection
Frame: Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard
Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve
Other Models Available:
ACS-20375-80VM 200V, 23.0A, 3 Phase
ACS-23375-80VM 230V, 20.0A, 3 Phase
ACS-46375-80VM 460V, 10.0A, 3 Phase
Specifications
-
CFM @ 175
23.5
-
Horsepower/Motor
7.5 HP, 230V, 1Ø, 31.0A
-
Pump RPM
1250
-
Compressor
Two Stage, Cast Iron
-
Tank Size
80 gallon
-
Bolt Down (LxW)
15.63 x 15.63 in.
Weights & Dimensions
-
Net Weight
709.00 lbs.
-
Shipping Weight
780.00 lbs.
-
Length
33.00 in.
-
Width
25.00 in.
-
Height
73.00 in.
Limited Warranties:
- 1 Year Electric Motor
- 2 Year Pump Exchange
