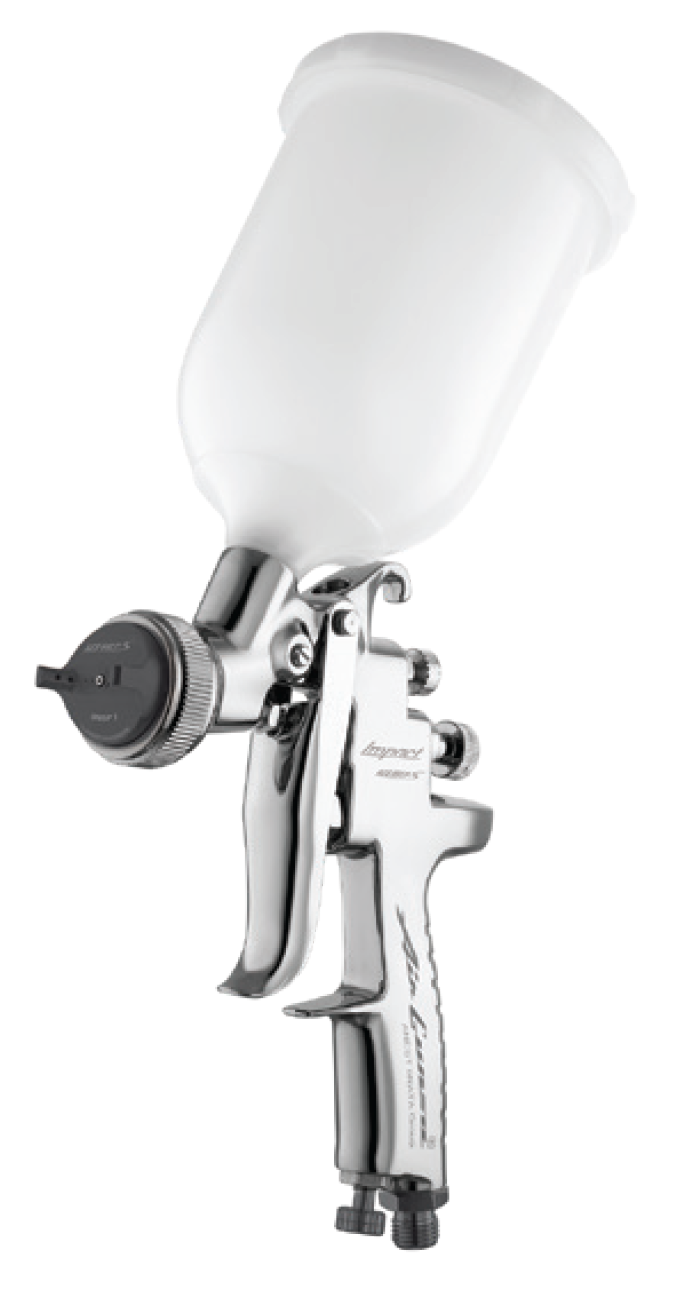

Anest Iwata AZ3 HTE-S Impact Gravity Spray Gun w/ 600ml Cup
Anest Iwata AZ3 HTE-S Impact Gravity Spray Gun w/ 600ml Cup
AZ3 HTE-S Impact Gravity Spray Gun w/ 600ml Cup
Manufacturer: Anest Iwata
Part Number: 927X
Description: The HVLP AZ3 HTE-S IMPACT is for anyone looking to achieve a great finish at an affordable price. This entry-level spray gun is offered in a variety of nozzle size configurations.
Features:
• HVLP spray gun with low operating air pressure
• High quality filler spray gun
• Flat and thin spray pattern with fine atomization
• All fluid passages are in stainless steel
• Simple operation of the control knobs, for right and left handers
• Costs for spare parts replacement extremely customer friendly
Specifications:
Parts and Accessories:
| Ref. No. | Part No. | Description |
| 1 | 9284 | Air Cap Set - AZ3 HVLP1 (1.3-1.5) |
| 1 | 9285 | Air Cap Set - AZ3 HVLP1 (1.8-2.0) |
| 2 & 9 | Nozzle Needle Sets | |
| 3 | 9193 | Nozzle Holder |
| 5 | 93842601 | Pattern Adj Set |
| 6 | 9913 | Fluid Needle Adj Knob |
| 7 | 9135 | Fluid Needle Guide |
| 8 | 9155B | Fluid Needle Spring |
| 10 | 9134 | Fluid Needle Packing Nut |
| 11 | 9211 | Air Valve Set |
| 11-1 | 9156B | Air Valve Spring |
| 11-2 | 9146B | Air Valve Shaft |
| 11-3 | 9148 | Air Valve Seat |
| 12 | 9914 | Trigger Stud |
| 13 | 9256 | Trigger |
| 14 | 93845531 | Air Adj Set |
| 15 | 9902 | Threaded Bushing |
| 16 | 9196 | Screw |
| 16-1 | 9257 | Plug |
| 17 | 9915 | Air Nipple |
| C | 9166 | Packing Set (3 pcs./1pk) |
| D | 9259 | Slide Ring Kit (10 pcs./1pk) |
| E | 9916 | Air Valve Shaft Tip Set (3 pcs./1 pk.) |
| 18 | 9290 | PCG-6P-2-AZ Gravity Cup 600 ml |
| B | 9164 | Non Drip Set (5 pcs./1 pk.) |
| F | 9167 | Filter Set 50 Mesh (297μ) (5 pcs./1 pk.) |
| 19 | 9912 | Universal Spanner |
