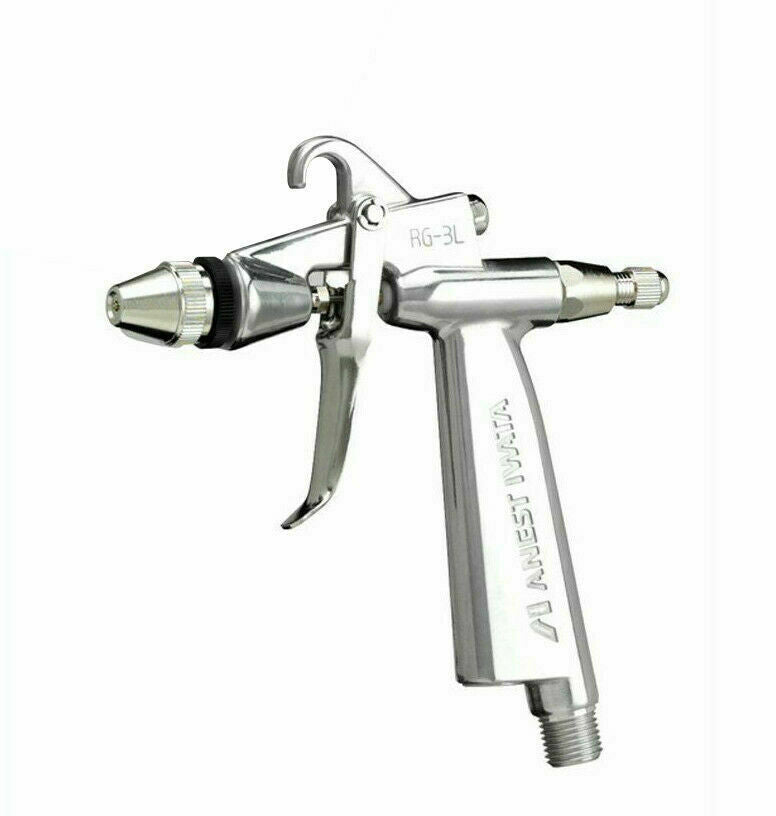

Anest Iwata RG-3L Side Gravity Round Pattern - Special Purpose Spray Gun

Anest Iwata RG-3L Side Gravity Round Pattern - Special Purpose Spray Gun

Manufacturer: Anest Iwata

Part #: 28XX

Description: The RG3L round pattern air-spray gun requires only 1.1 cfm at 36 psi and produces remarkable atomization with precise control of the spray pattern. Ideal spray control when blending or shading. The compact lightweight guns are designed with side mounted gravity cup allowing 360° rotation giving the operator options to spray at a wide variety of angles.

Features:

• Produces remarkable atomization with precise control of the spray pattern
• Ideal spray control when blending or shading
• Compact and lightweight

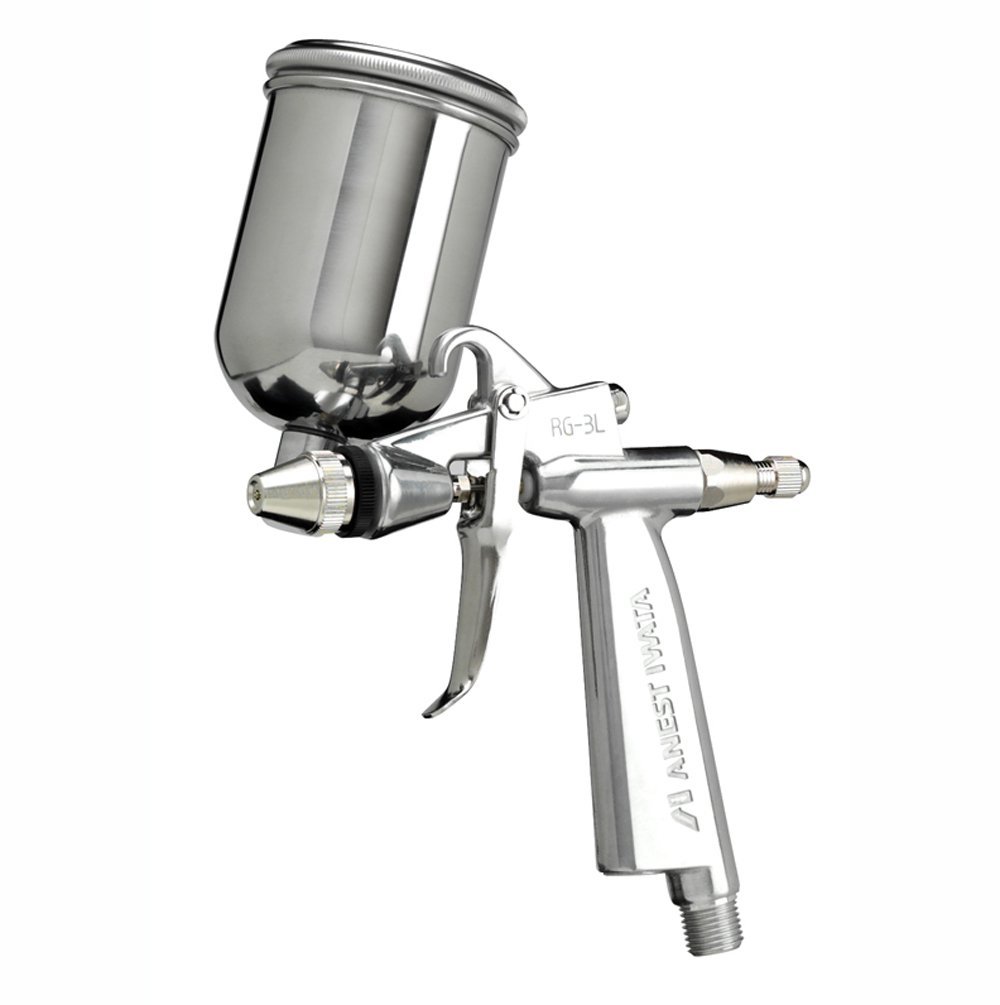

• Side mounted gravity cup allowing 360° rotation giving the operator options to spray at a wide variety of angles

Specifications:

Spare Parts:

Ref. No.	Part No.	Description
1	9302X8X0	AIR CAP SET RG-3L
2	9304X8X0	NOZZLE SET
3	939XX880	NEEDLE SET
4	93028890	JAM NUT
6	93940890	NEEDLE PACKING CARTRIDGE
7-1	93005891	FLUID NIPPLE (1/4”)
7-2	93660300	AIR NIPPLE (1/4”)
8	93162890	TRIGGER
9	93912030	E STOPPER (2 pcs./1 pk.)
10	93167890	TRIGGER STUD
11	93006880	AIR VALVE SHAFT
12	93912880	AIR VALVE SEAT SET
12-1	96638005	O RING
13	93011880	AIR VALVE SEAT SCREW
14	93027880	BLANK SCREW (1/2/3)
14	93939880	AIR ADJUST SET (11/12/13)
15	93012880	AIR VALVE SPRING
16	93013880	AIR VALVE
17	93936880	FLUID ADJUST GUIDE SET
18	93015880	FLUID NEEDLE SPRING
19	93017880	FLUID ADJUST KNOB

Accessories:

• 6022 AIRBRUSH BOTTLE ADAPTER KIT
  WITH THREE 2 OZ BOTTLES
• 6022-1 AIRBRUSH BOTTLE ADAPTER ONLY
• 2950 MK5 MAINTENANCE KIT

• 2860 REPAIR SERVICE KIT
  (INCLUDES: 6, 9, 12-1)

Literature:

• Manual
