Binks 101-5262 Screen
Regular price
Unit price
/
Unavailable
Screen
Manufacturer: Binks
Part Number: 101-5262
Description: Screen
Parts:

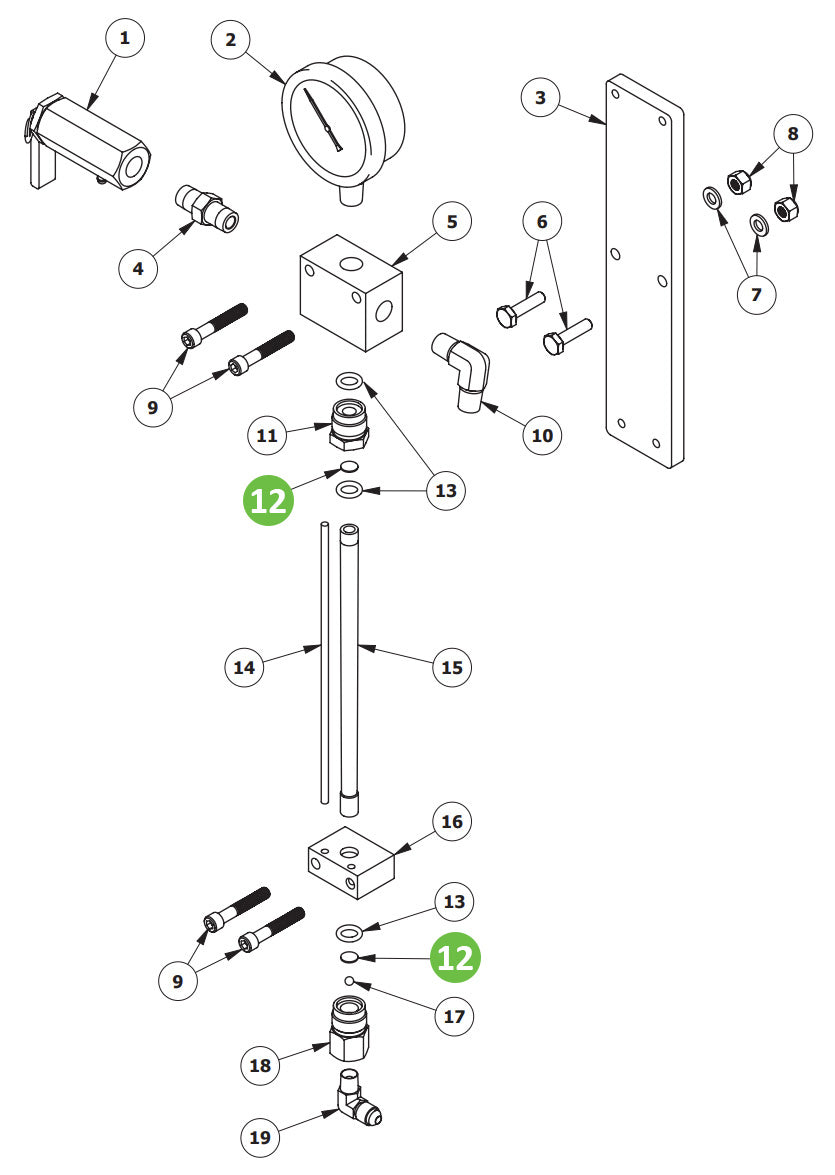

CATALYST FLOW METER ASSEMBLY
| Item No. | Part No. | Description | Qty |
| 1 | 101-9477-75 | RELIEF VALVE - 75 PSI | 1 |
| 2 | 83-2571 | GAUGE, 100 LB | 1 |
| 3 | 101-9471 | FLOWMETER BACK PLATE | 1 |
| 4 | 20-4854 | DM NIPPLE, 1/4" NPT | 1 |
| 5 | 101-9466 | MANIFOLD | 1 |
| 6 | 237-172 | HEX HEAD CAP SCREW | 2 |
| 7 | 20-263-1 | FLAT WASHER | 2 |
| 8 | 20-6042 | NYLOK HEX NUT | 2 |
| 9 | 20-6086 | SOCKET HEAD CAP SCREW | 4 |
| 10 | 20-2828 | ELBOW, MALE 1/4" NPT/NPS | 1 |
| 11 | 101-9468 | UPPER TUBE ADAPTER | 1 |
| 12 | 101-5262 | SCREEN | 2 |
| 13 | 237-101 | O-RING | 3 |
| 14 | 101-9472 | FLOWMETER ROD | 2 |
| 15 | 101-5288 | TUBE ASSEMBLY | 1 |
| 16 | 101-9465 | LOWER FLOWMETER BLOCK | 1 |
| 17 | 20-2183 | BALL, 3/16" DIA | 1 |
| 18 | 101-9467 | CATALYST INLET | 1 |
| 19 | 107-1646 | MALE ELBOW, 1/8" NPT X JIC #4 | 1 |
CATALYST RELIEF VALVE ASSEMBLIES
| Item No. | Part No. | Description | Qty |
| 1 | 20-6901 ◊ | COTTER RING | 1 |
| 2 | 101-9482 | LEVER | 1 |
| 3 | 101-9483 | PIN | 1 |
| 4 | 101-9479 | CAP | 1 |
| 5 |
SPRING - 75 PSI SPRING - 800 PSI SPRING - 2050 PSI |
1 | |
| 6 | 101-9481 | VALVE | 1 |
| 7 | 20-6864 ◊ | O-RING | 1 |
| 8 | 20-6900 ◊ | O-RING | 1 |
| 9 | 101-9484 ◊ | SCREW | 1 |
| 10 | 101-9478 | RELIEF VALVE BODY | 1 |
| 11 | 20-6902 ◊ | TUBE ADAPTER | 1 |
◊ Items are included within the 106-1280 Repair Kit.
