Binks 41-2084 Foot Valve

$494.00
Shipping calculated at checkout.

Foot Valve

Manufacturer: Binks

Part Number: 41-2084

Description: Foot Valve

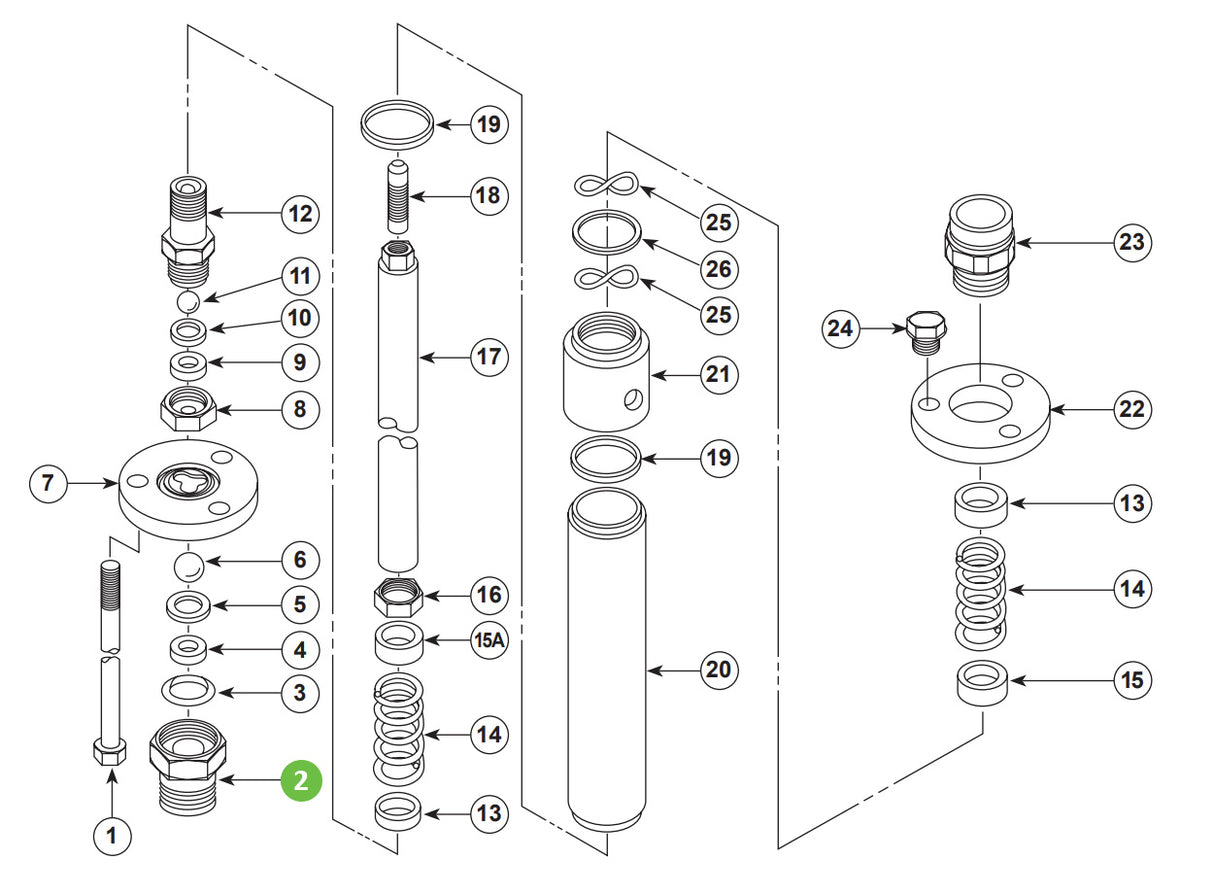

Item No. Part No. Description Qty
1 41-1556
 TIE BOLT (Lower) 3
2 41-2084 FOOT VALVE 1
3 20-4173* “O” RING (Lower) 1
4 101-1939* SEAT-SHAPE EDGE (Lower) 1
5 41-1524* SEAT GASKET (Lower) 1
6 20-4963* 1" BALL (Lower) 1
7 41-1562 FOOT VALVE BODY 1
8 41-10254 RETAINER NUT 1
9 101-1940*  SEAT-SHAPE EDGE (Upper) 1
10 101-1147* GASKET (Upper) 1
11 20-3250* 3/4" BALL (Upper) 1
12 41-10266 FLUID PISTON 1
13 41-10265* FEMALE ADAPTER 2
14 41-1242*  “V” RING 10
15 41-1251* MALE ADAPTER (1/8" Length) 1
15A 41-10264* MALE ADAPTER (1/4" Length) 1
16 41-10258 LOCKNUT 1
17 101-1781 PUMP SHAFT (Hard Chrome) 1
18 41-10253 STUD 1
19 41-2168* GASKET (Cylinder) 2
20 101-1780 CYLINDER (Hard Chrome) 1
21 41-11023 OUTLET 1
22 41-1542 RING 1
23 101-1619 UPPER PACKING NUT 1
24 41-1563 SPACER NUT 3
25 41-11027* WAVE SPRING 2
26 41-11031*  WASHER 1



Literature:

ALL FITTINGS, VALVES, & ADAPTERS ARE NOT RETURNABLE. ALL SALES ARE FINAL

Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.


Contact: 503-545-3176
