Binks 55 Gallon Open Drum Agitator - Spare Parts
Manufacturer: Carlisle Binks
Part #: See Table
Description: Spare parts for the Binks 55 gallon open drum agitators (part# 31-52X)

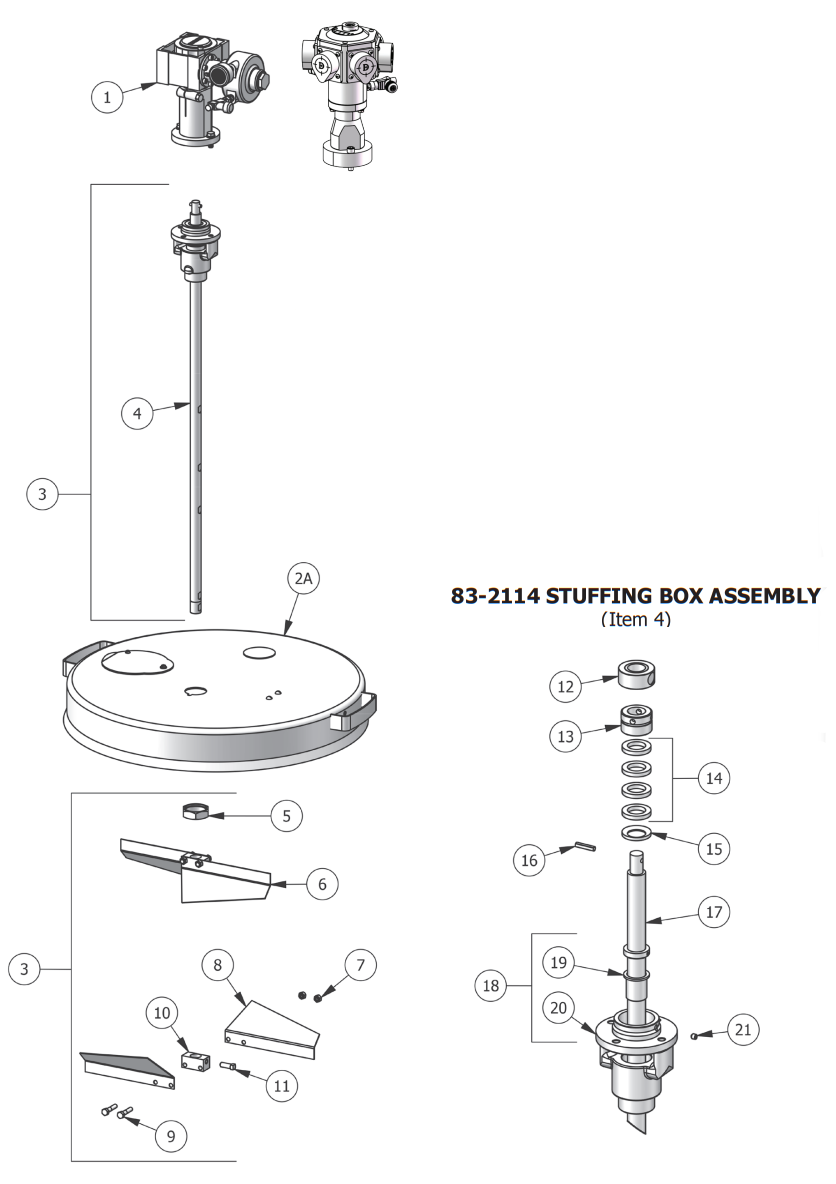

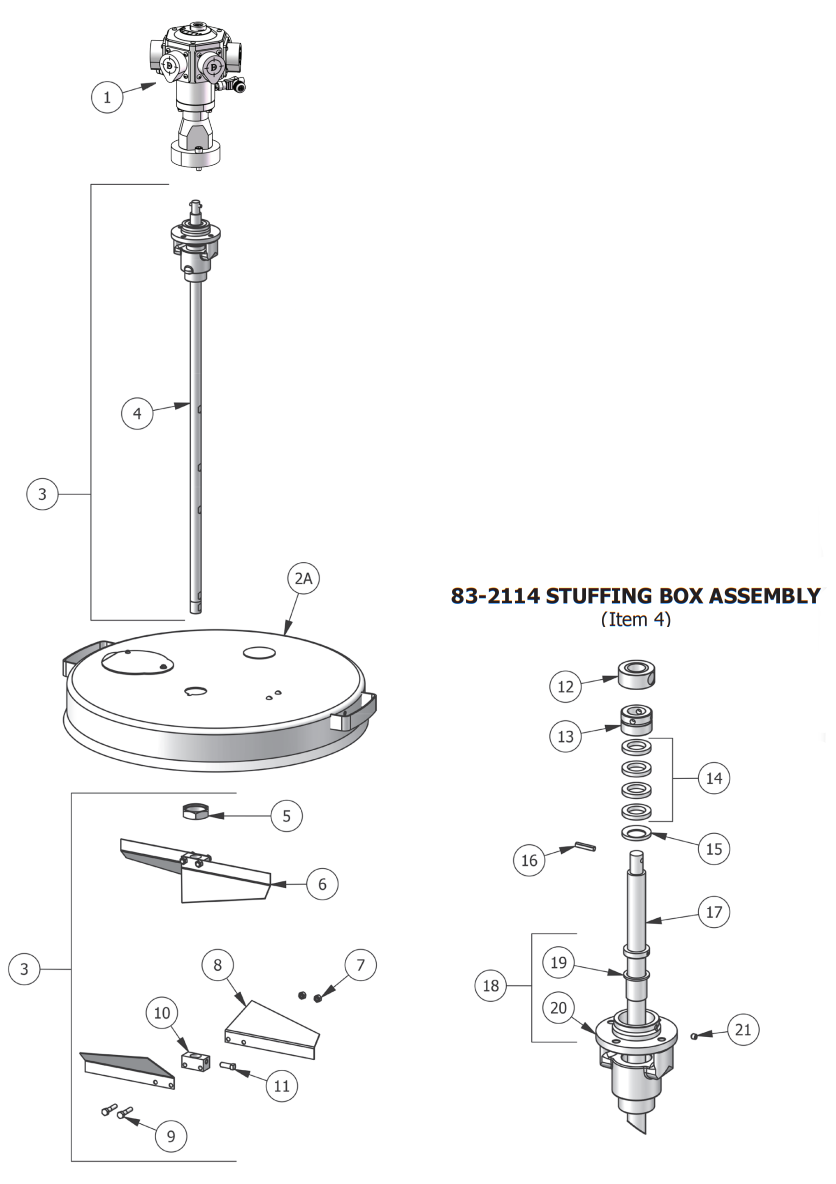

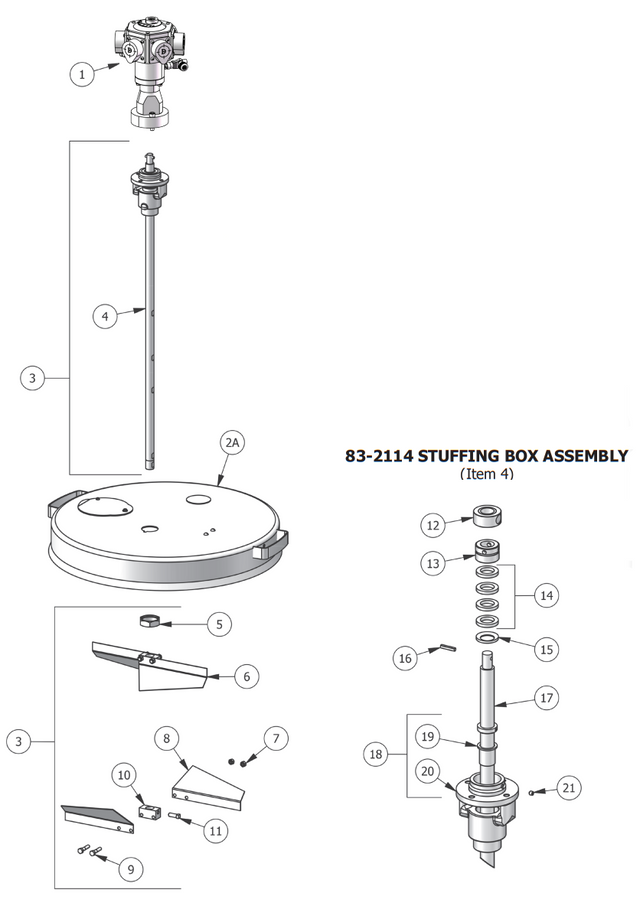

| Ref. # | Part # | Description |
| 1A | 31-523 | Agitator Drive Unit - No Hose and Fittings |
| 1B | 31-524 | Agitator Drive Unit - With Hose and Fittings |
| 2A | 31-124 | Zinc Plated Steel Cover |
| 2B | 31-426 | Stainless Steel Cover |
| 3 | 41-3305 | Agitator - No Motor |
| 4 | 83-2114 | Stuffing Box Assembly |
| 5 | 41-172 | Locknut |
| 6 | 83-2197 | Paddle Assembly, Stainless Steel |
| 7 | 20-2079 | Hex Nut 5/16-18, Stainless Steel |
| 8 | 83-2194 | Paddle, Stainless Steel |
| 9 | 20-2077 | Hex Hd. Cap Screw 5/16-18 x 1-1/2" Lg, SS |
| 10 | 83-2132 | Block, Stainless Steel |
| 11 | 20-1741 | Sq. Hd. Set Screw 3/8-16 x 1" Lg, SS |
| 12 | 83-2107 | Bearing Assembly |
| 13 | 83-2112 | Gland |
| 14 | 83-2111-K4 | Packing Set (4 ct. packings) |
| 15 | 83-2110 | Washer |
| 16 | 83-1211 | Pin |
| 17 | 83-2099 | Shaft |
| 18 | 83-2109 | Box Assembly |
| 19 | 83-3032 | Bearing (Included in Ref# 18) |
| 20 | Box (Included in Ref# 18) | |
| 21 | 20-1237 | Soc. Hd. Set Screw 1/4-20 x 1/4" Lg. |
