Binks 72-337 Swivel Nut
Regular price
Unit price
/
Unavailable
Swivel Nut
Manufacturer: Binks
Part #: 72-337
Description: Swivel Nut, 1/2

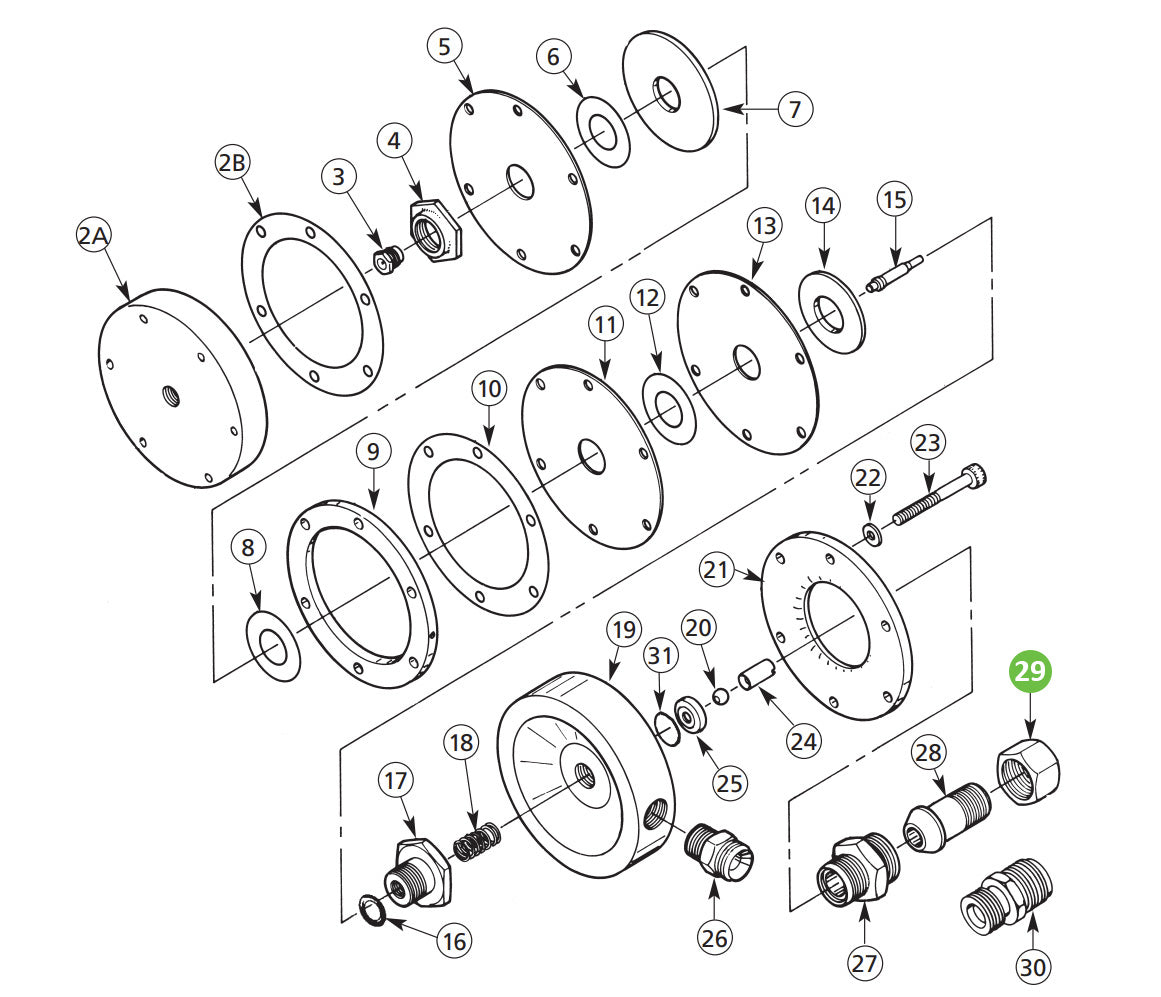

Parts and Accessories:
| Item No. | Part No. | Description | Qty |
| 2A | 84-534 | BONNET | 1 |
| 2B | 84-463*† | GASKET | 1 |
| 3 | 84-604*† | SOCKET RETAINER | 1 |
| 4 | 84-331 | NUT | 1 |
| 5 | 84-399*† | DIAPHRAGM | 1 |
| 6 | 84-388*† | GASKET | 1 |
| 7 | 84-398 | DISK | 1 |
| 8 | (SAME AS ITEM 6) | 1 | |
| 9 | 84-532 | SPACER | 1 |
| 10 | (SAME AS ITEM 2B) | 1 | |
| 11 | 84-329*† | DIAPHRAGM | 1 |
| 12 | (SAME AS ITEM 6) | 1 | |
| 13 | (SAME AS ITEM 5) | 1 | |
| 14 | 84-603*† | DISC | 1 |
| 15 | 84-395 | ROD | 1 |
| 16 | 20-5921*† | O-RING (TO PREVENT LEAKAGE) | 1 |
| 17 | 84-467*† | RETAINER | 1 |
| 18 | 84-535*† | SPRING | 1 |
| 19 | 84-533 | BODY (ALUM.) | 1 |
| 20 | 84-524† | VALVE (TUNGSTEN CARBIDE) | 1 |
| 20 | 84-538* | VALVE (TUNGSTEN CARBIDE) | 1 |
| 21 | 84-493 | FLANGE | 1 |
| 22 | 20-1375-1 | LOCKWASHER (#10) | 6 |
| 23 | 20-3336 | SOC. HD. CAP SCREW (10-24 X 1-3/4" LONG) |
6 |
| 24 | 84-336 | CAP NUT (MODEL 84-598, OBSOLETE) | 1 |
| 24 | 84-470 | CAP NUT (MODEL 84-599) | 1 |
| 25 | 84-523† | SEAT (TUNGSTEN CARBIDE) | 1 |
| 25 | 84-537* | SEAT (TUNGSTEN CARBIDE) | 1 |
| 26 | 83-2484 | D.M. NIPPLE (STAINLESS STEEL) (1/4" NPT X 3/8" NPS) |
1 |
| 27 | 84-337 | INLET | 1 |
| 28 | 84-318 | TAILPIECE | 1 |
| 29 | 72-337 | SWIVEL NUT | 1 |
| 30# | 84-529 | INLET (3/8" NPS) | 1 |
| 31 | 84-526†* | GASKET | 1 |
| * Also available in Repair Kit 6-525 (Model 84-598, obsolete). Kit needs to be ordered separately |
|||
| † Also available in Repair Kit 6-526 (Model 84-599). Kit needs to be ordered separately. |
|||
| # Item 30. Optional. Please order separately, when used, replaces the three Items 27, 28, 29. |
Literature:
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
