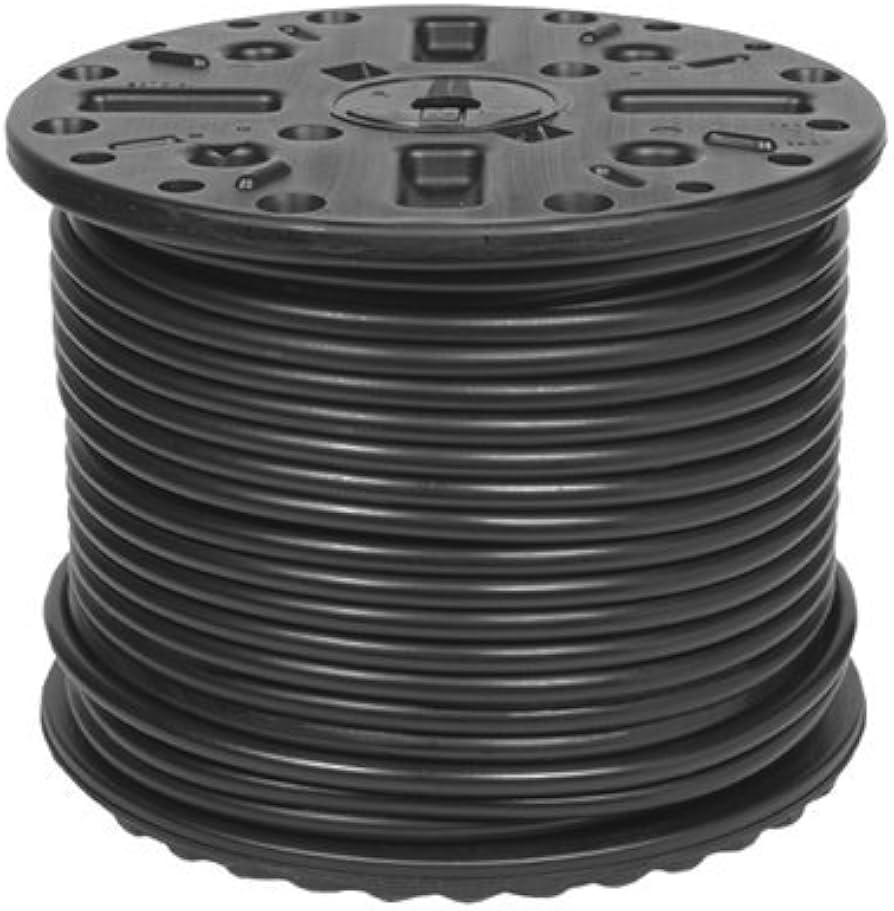

Binks Fluidall™ Fluid Hose (Nylon Lined, Maximum Versatility)

Fluidall™ Fluid Hose (Nylon Lined, Maximum Versatility)

Manufacturer: Binks

Part Number: 71-28X

Description: Premium, versatile fluid hose, for finishing operations plus a wide range of fluid applications. Fluidall™ is ideal for resins and solvents contained in epoxies, urethanes, alkyds, primers, acrylics, polyesters, silicones, bitumastic coatings, oil and water based paints, lacquers, alcohol and latex coatings. Temperature range from 0° F to +190°F (max).

• Tube: Nylon.
• Reinforcement: High tensile synthetic braid. Specially designed for maximum flexibility (under pressure) and maximum coupling retention.
• Cover: Black, synthetic, smooth rubber. Class B oil resistant.

Specifications:



Connections for Fluidall™ Hoses:

Bulk Hose

Connections

I.D.	O.D.	Part No.	Thread	Part No.	Compression Sleeve	Type
1/4"	1/2"	71-280	1/4”nps(f)	72-1303	HC-20-K10	A
			3/8”nps(f)	72-1306	HC-20-K10	A
			3/8”nps(f)	72-2143*	HC-20-K10	A
3/8"	11/16"	71-282	1/4”nps(f)	72-1325	HC-23-K10	A
			3/8”nps(f)	72-1328	HC-23-K10	A
			3/8”nps(f)	72-2146*	HC-23-K10	A
1/2"	7/8"	71-283	3/8”nps(f)	72-1333	HC-33	A
			1/2”nps(f)	72-1334	HC-33	A
			1/2”nps(f)	72-954†*		C
3/4"	1 3/16"	71-284	3/4”nps(f)	72-1336†		C
			3/4”nps(f)	72-417†		C
			3/4”nps(f)	72-955†*		C
1"	1 1/2"	71-285	1”nps(f)	72-418†		C
			1”nps(f)	72-956*		C
			1”nps(f)	72-1936		-

†Punch-Lok Connection *Stainless Steel tailpiece

HOSE ONLY - ENDS NOT INCLUDED

Hoses are NOT Returnable
