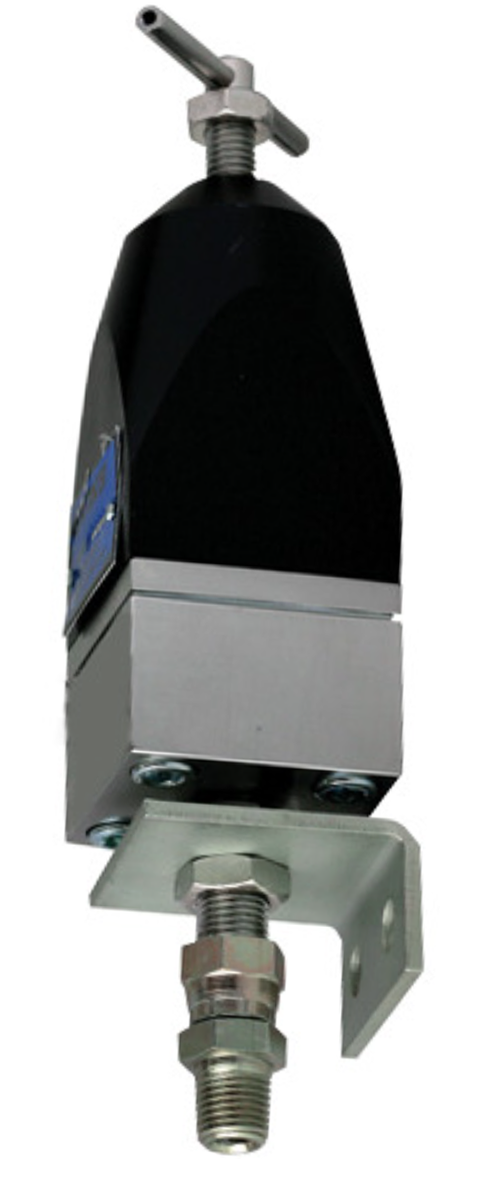

Binks Model 84-420 High Pressure Fluid Regulator 3000 PSI
High Pressure Fluid Regulator 3000 PSI
Manufacturer: Binks
Part Number: 84-420
Description: The Binks Model 84-420 High Pressure Fluid Regulator is designed for precise control of fluid pressure in industrial paint spray systems. Built for demanding finishing environments, it delivers stable, accurate pressure regulation to ensure consistent material flow and high-quality spray results. Its rugged construction makes it suitable for high-pressure coating applications using solvent-based or water-based materials. Ideal for use in automated or manual spray setups, the 84-420 helps reduce material waste, improve finish consistency, and protect downstream spray equipment.
| Specifications |
| Pressure Range (PSI) | 300-2000 |
| Working Press. (Max.) (PSI) | 3000 |
| Flow Coefficient (Cᵥ) | 0.18 |
![]() |

| Parts and Accessories: |
| Ref. No. | Part No. | Description | QTY |
| 1 | - | NUT, 3/8-16 JAM | 1 |
| 2 | - | SCREW, 5/16-18 X 1-3/4 | 4 |
| 3 | - | LOCKNUT, 1/4 NPS | 1 |
| 5 | 54-1468 ▲ | GASKET | 1 |
| 6 | 84-423 | HANDLE | 1 |
| 7 | 84-424 | BUTTON | 2 |
| 8 | 84-425 ▲ | SPRING (High Pressure) | 1 |
| 9 | 84-426 | BONNET | 1 |
| 10 | 84-427 | FLANGE | 1 |
| 11 | 84-428 | PISTON | 1 |
| 12 | 84-429 ▲ | DIAPHRAGM | 2 |
| 13 | 84-430 ▲ | DIAPHRAGM | 1 |
| 14 | 84-432 | PIN | 1 |
| 15 | 84-435 | SEAT | 1 |
| 16 | 84-436 ▲ | GASKET | 1 |
| 17 | 84-440 | VALVE | 1 |
| 18 | 84-441 ▲ | SPRING | 1 |
| 19 | 84-442 | INLET | 1 |
| 20 | 84-443 | BODY | 1 |
| 21 | - | BRACKET | 1 |
| 22 | - | PLUG (NOT SHOWN) | 1 |
| 23 | 237-375 | DM NIPPLE (NOT SHOWN) | 1 |
| 24 | 101-9120 | SWIVEL (NOT SHOWN) | 1 |
▲ Indicates parts included in 6-1306 Repair Kit.
