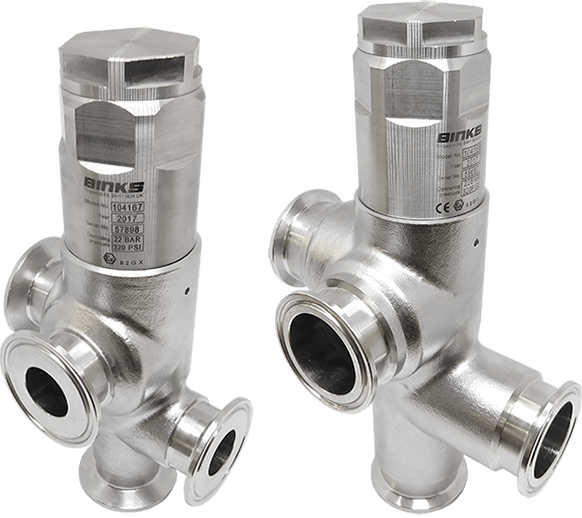

Binks Smart Pump - Pressure Relief Valve
Binks Smart Pump - Pressure Relief Valve
Binks Smart Pump - Pressure Relief Valve
Manufacturer: Binks
Part #: 1041XX
Description: Designed especially for the demands of paint, the pressure relief valve neatly forms part of the manifold and protects the motor and gearbox from overpressure. An electrical detection system is usually installed (pressure switch or pressure sensor) to detect and stop the pump when a potentially damaging high paint pressure is reached. This could be due to an inadvertent closing of an outlet ball valve, paint filter blockage or paint line restriction. The Pressure relief valve is a purely mechanical device and intended to complement the primary electrical safety device which must be installed. The mechanical relief valve can be easily installed directly on the pump outlet manifold. Any relieved paint pressure is piped back into the mix tank.
Options Available:
| Part No. | Size | Compatible Pump |
| 104167 | 1" Sanitary | Smart E2-7 & E2-15 |
| 104168 | 1.5" Sanitary | Smart E2-30, E2-40, E2-60 |
| 104111-E4 | 2" Sanitary | Smart E4-60 |
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
