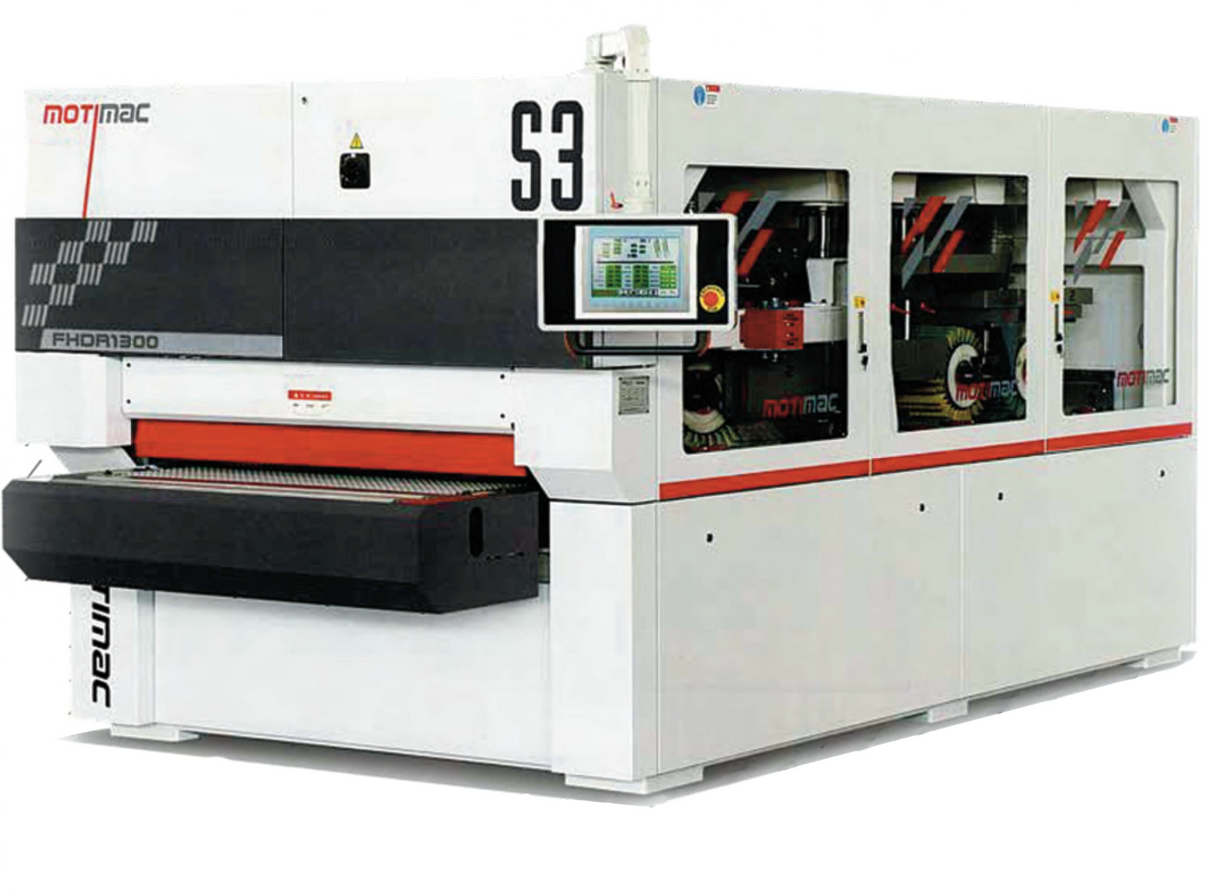

The FHDR1300 is breaking through traditional designs to improve the sanding process. Sanding of profiled or flat pieces is no longer a problem for manufacturing facilities. With the ability to sand pieces as wide as 51" and as short as 18" no other brush sander can compare.

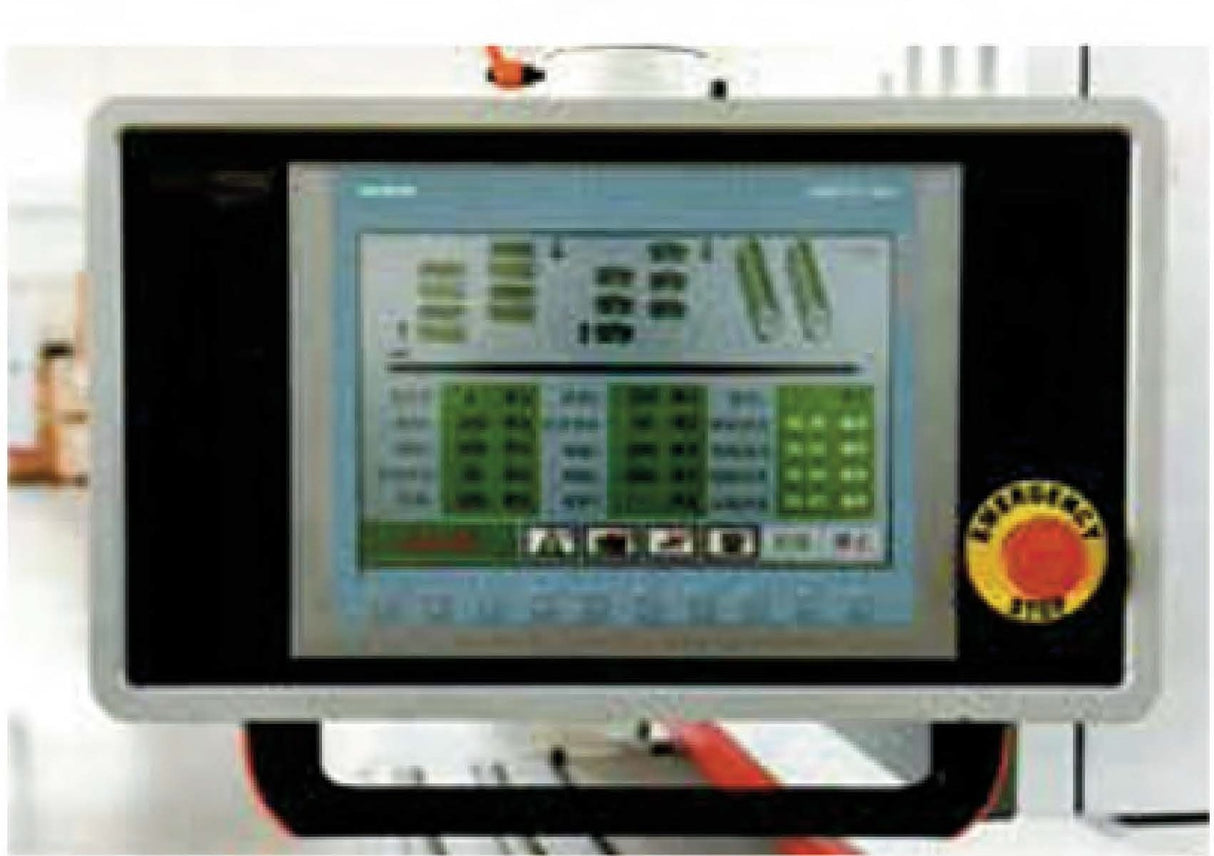

Equipped with Siemens MCGS control systems and a multi-touch display screen, the operation of the FHDR1300 is as simple as operating a smartphone. With the ability to store settings for different applications, you are guaranteed the same results every time.

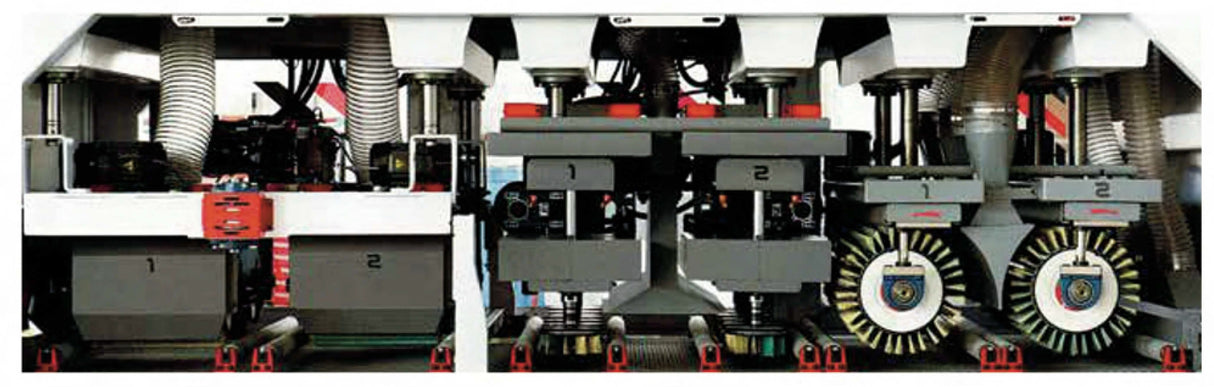

The first section has four counter-rotating sanding hubs traveling across the working piece. The second station offers two rows of stationary cup heads that sand the raised areas of the working piece, while simultaneously sanding lower profiles and details. The third and final station offers two counter-rotating linear sanding heads. Hitting the leading and trailing edge leaving a consistent overall finish.

Value - Simplicity - Practicality

  • The Right Products to Reduce Hand Sanding Labor Costs.
  • A Blend of Vertical, Circular and Horizontal Sanding, Which is an Effective Utilization of Space.
  • With a Siemens Automatic Control System and Multi-Touch Screen, The Interface is as Simple as Operating a Smart Phone.
  • Each Sanding System Works Independently, Allowing for Different Applications. from Raw Wood to Sealer Sanding, to Metal Deburring and Polishing, The Fhdr1300 is The Right Choice for All Your Sanding Needs.

Specifications:

Max. Working Width: 51 in

Min. Working Length: 18 in.

Working Thickness: .11 - 4.5 in.

Total Motor Power: 20kw

Linear Speed of Conveyor Belt: 10 - 56 ft./min

Working Air Pressure: 0.6 MPa

Air Consumption: 0.1 m3/h

Volume of Dust Collection: 15000 m3/h

Overall Dimension: 183 in. x 88 in. x 84 in.

Total Weight: 12,702 lbs

Power: 460v 3 Phase



FOB Queensbury, NY - You will be contacted with a freight quote or you can arrange your own freight.
