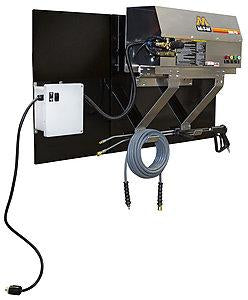

CAW Aluminum Series Electric Direct Drive Wall-Mount - CAW-4004-0ME1



Designed to attach directly to a wall, this series offers a secure system for use in a wide range of locations.  Featuring non-corrosive aluminum construction, it is perfect for high volume cleaning and sanitizing jobs and is especially versatile in factories, wash bays and food processing plants.

Pump:  Stainless-steel and brass trapping unloader · Forged brass manifold · Thermal relief valve · External quick connect low pressure detergent injector · Pump accepts incoming water up to 175°F

Motor:  Totally enclosed fan-cooled electric motor with manual thermal overload protection · 4-foot power cord

Frame:  Aluminum base plate and frame · Aluminum wall-mounting brackets · Aluminum hose and gun/wand holder

Components:  Time delay shutdown · Remote mounted electrical box included, must be mounted within 3 ½-feet of unit

Unit Includes:  Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch non-marking high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off

Dimensions do not include the mounting brackets



  • PSI


  • GPM


  • Horsepower/Motor

    10.0 HP, 230V, 1Ø, 40.8A

  • Pump


  • Mi-T-M No.


  • Unloader

    Factory Preset

  • Plug Type

    NEMA 6-50P

  • Lance

    Adjustable, Dual, 48-inch

Weights & Dimensions

  • Net Weight

    293.00 lbs.

  • Shipping Weight

    368.00 lbs.

  • Length

    34.00 in.

  • Width

    18.00 in.

  • Height

    19.00 in.



  • CX-0078 Remote Box

    Adds control box which may be mounted away from unit to control on/off, not available on models with auto start/stop

  • CX-0109 Additional Remote Box

    Additional remote boxes (up to 3)

  • CX-0112 Auto Start/Stop

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart


Limited Warranties:
  • 1 Year Electric Motor
  • 7 Year General Pump

View Product Sheet
