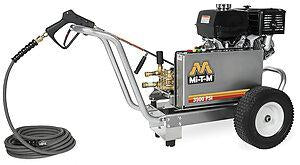

CBA-3504-1MAH
The industrial and lightweight CBA Aluminum Series is a high-powered workhorse that delivers performance on a routine basis. Perfect for removing the toughest stains on brickwork and concrete.
Pump: Equipped with the Mi-T-M Pressure Relief Start which eliminates pressure build-up in the system · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection
Frame: Lightweight, corrosion resistance aluminum frame and base plate with 1-1/4-inch tube handles · Patented vibration isolation plate with four rubber isolators · Convenient gun/wand holder · Two-piece belt guard for quick access to belts · 13-inch flat-free tires
Unit Includes: Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch non-marking high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off
Specifications
-
PSI
3500
-
GPM
3.7
-
Displacement/ Engine
389cc Honda GX390 OHV
-
Pump
AR
-
Mi-T-M No.
3-0308
-
Unloader
Mi-T-M, Adjustable Pressure
-
Lance
48 in.
Weights & Dimensions
-
Net Weight
165.00 lbs.
-
Shipping Weight
215.00 lbs.
-
Length
47.00 in.
-
Width
27.50 in.
-
Height
28.50 in.
Options
-
CX-0082 External Bypass System
Allows more water into the system to protect from heat build-up
Limited Warranties:
- 1 Year Mi-T-M Unloader
- 3 Year Honda Engine
- 7 Year AR Pump
