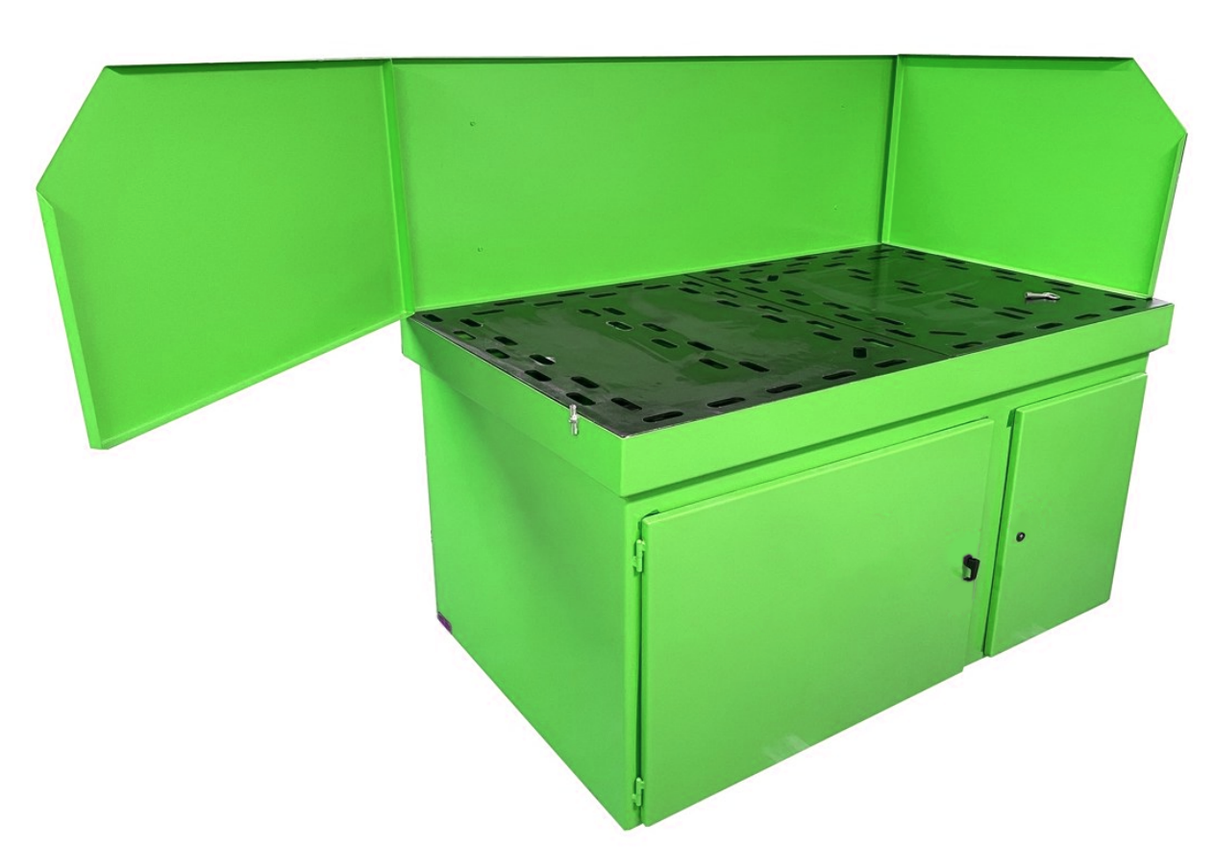

Denray Grind Downdraft Table Model 3660G
Denray Grind Downdraft Table Model 3660G
Grind Downdraft Table Model 3660G
Manufacturer: Denray
Part #: 3660G
Description: This model is designed to accommodate a variety of sanding, metal grinding, welding, and light plasma applications. The 3660G comes standard with one 100% polyester flame retardant filter, which cleans with 99.95% efficiency at 0.5 micron. Cleaning is done by the "Jet Pulse Automatic Cleaning" which uses the compressed air inside the air tank. Tabletop surface is composed of durable single piece 1/4" metal plate. A removable spark shield with hinged ends provides spark protection for area workstations.
- 1/4" Steel Metal Top
- 20" - 3-Sided Spark Shield
- 2- Metal Spark Arresting Filters
- 5HP 3PH Motor with 20" Fan/Inlet (4600CFM)
- 3" Minihelic Gauge Kit in WC (Water Channel)
- Muffler Medium (Reduces sound level by 10-12 DBS.)
- Bolt-On 4" Caster Kit
- 220/230/460V SM Pneumatic Auto Timer (This cleans the internal portion of the filter by "jet-pulse" air. Note: this unit does not rotate, the filter must be manually rotated as needed for even wear of the filter media)
- Single 4' LED Light Bar Assembly
FOB Mount Vernon, Missouri - You will be contacted with a freight quote or you can arrange your own freight. Forklift required at the time of delivery.
