DeVilbiss HGS-43-K5 Valve Seat Service Kit of 5
DeVilbiss HGS-43-K5 Valve Seat Service Kit of 5
Valve Seat Service Kit of 5
Manufacturer: DeVilbiss
Part #: HGS-43-K5
Description: Valve Seat Service Kit of 5

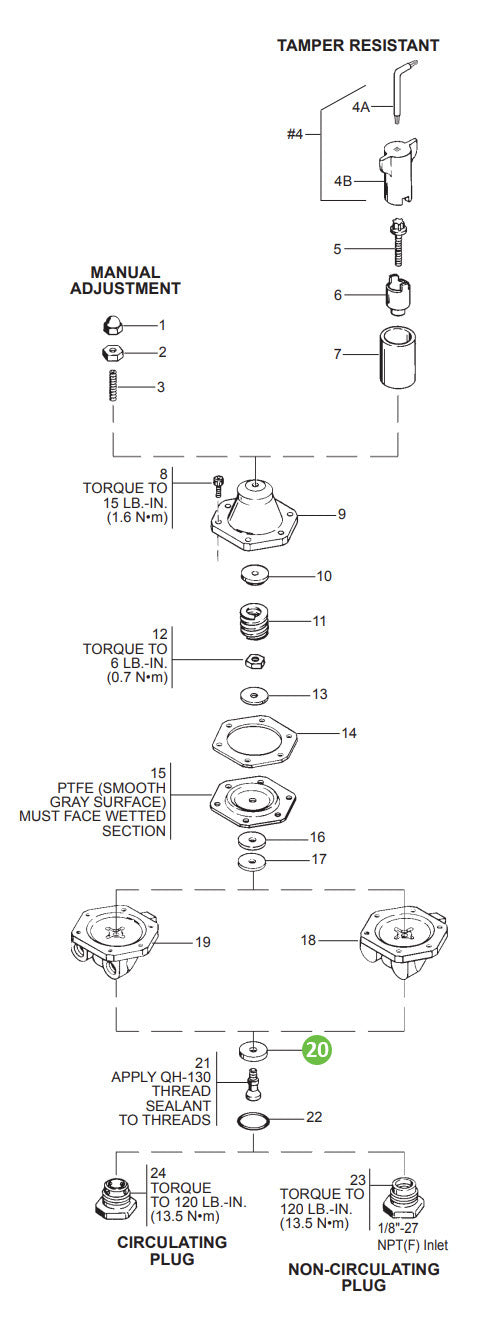

| Item No. | Part No. | Description | Qty |
| 1 | - | CAP NUT #10-32 | 1 |
| 2 | - | NUT #10-32 | 1 |
| 3 | - | HEX KEY ALLEN SET SCREW, #10-32 X 3/4" |
1 |
| #4 | KK-5047 | T-HANDLE KIT (ORDER SEPARATELY) | 1 |
| 4A | - | TORX KEY | 1 |
| 4B | - | T-HANDLE | 1 |
| 5 | - | TORX SCREW 10-32 THD | 1 |
| 6 | HGS-36 | LOCK | 1 |
| 7 | HGS-34 | GUARD | 1 |
| 8 | SSF-3169-K6 | SOCKET HEAD CAP SCREW, S.S. #8-32 x 3/8" (Kit of 6) |
6 |
| 9 | HGS-5 | BONNET | 1 |
| 10 | HGS-28 | ADJUSTMENT SEAT | 1 |
| 11 | HGS-30 | REGULATOR SPRING | 1 |
| 12* | - | HEX NUT #6-32 |
| 13* | - | UPPER PLATE | 1 |
| 14* | HGS-12-K5 | GASKET (KIT OF 5) | 1 |
| 15* | HGS-20-1 | DIAPHRAGM, PTFE | 1 |
| 16* | SSN-57 | FLAT WASHER | 1 |
| 17 | SSN-54 | STAINLESS STEEL WASHER | 1 |
| 18 | HGS-8 | REGULATOR BODY, NON-CIRCULATING FOR MODEL HGS-5242 |
1 |
| 19 | HGS-7 | REGULATOR BODY, CIRCULATING | 1 |
| 20* | HGS-43-K5 | VALVE SEAT, PTFE, STD. FLOW (KIT OF 5) |
1 |
| 21 | HGS-44 | VALVE STEM, STD FLOW | 1 |
| 22* | SSG-8144 | O-RING, PTFE | 1 |
| 23 | HGS-27 | PLUG, NON-CIRCULATING | 1 |
| 24+ | HGS-26 | PLUG, CIRCULATING | 1 |
| 25 | H-1766 | CONNECTOR 1/8" NPT(M) X 1/4" NPSM(M) | 1 |
| 26 | SSF-3169-K6 | SOCKET HEAD CAP SCREW, S.S. #8-32 X 3/8" (KIT OF 6) |
6 |
| 27 | HGS-4 | BONNET | 1 |
| 28* | HGS-12-K5 | GASKET (KIT OF 5) | 1 |
| 29* | - | HEX NUT #6-32 | 1 |
| 30* | - | UPPER PLATE | 1 |
| 31* | HGS-20-1 | DIAPHRAGM, PTFE | 1 |
| 32* | SSN-57 | WASHER, PTFE | 1 |
| 33 | SSN-54 | FLAT WASHER | 1 |
| 34 | HGS-7 | REGULATOR BODY, CIRCULATING | 1 |
| 35 | HGS-8 | REGULATOR BODY, NON-CIRCULATING | 1 |
| 36* | HGS-43-K5 | VALVE SEAT, PTFE (KIT OF 5) | 1 |
| 37 | HGS-44 | VALVE STEM | 1 |
| 38* | SSG-8144 | O-RING, PTFE | 1 |
| 39 | HGS-26 | PLUG, CIRCULATING | 1 |
| 40 | HGS-27 | PLUG, NON-CIRCULATING | 1 |
| * | QH-130 | LOCTITE | 1 |
Dual Inlet Fittings supplied with regulator.
Manual Adjustment Fluid Regulator includes items 1 through 3 and 8 through 24 Tamper Resistant Fluid Regulator includes items 5 through 24.
# To maintain the “tamper-proof" security feature, the KK-5047 T-Handle is not included with each regulator, as one T-Handle will service multiple regulators.
NOTE: KK-5047 T-Handle must be purchased separately.
Suffix -K5 designates kits of multiple parts.
* Parts included in Regulator Repair Kit KK-4456 (Std Flow).
+ HGS-5242 Model uses the circulating plug.
Literature:
Binks, which DeVilbiss is a part of, charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
