DeVilbiss TEKNA ProLite, Colour ID Ring Kit (4 Colours) 702735
DeVilbiss TEKNA ProLite, Colour ID Ring Kit (4 Colours) 702735
Colour ID Ring Kit (4 Colours)
Manufacturer: DeVilbiss
Part #: 702735
Description: Color ID Ring Kit (4 Colors)
Parts and Accessories:

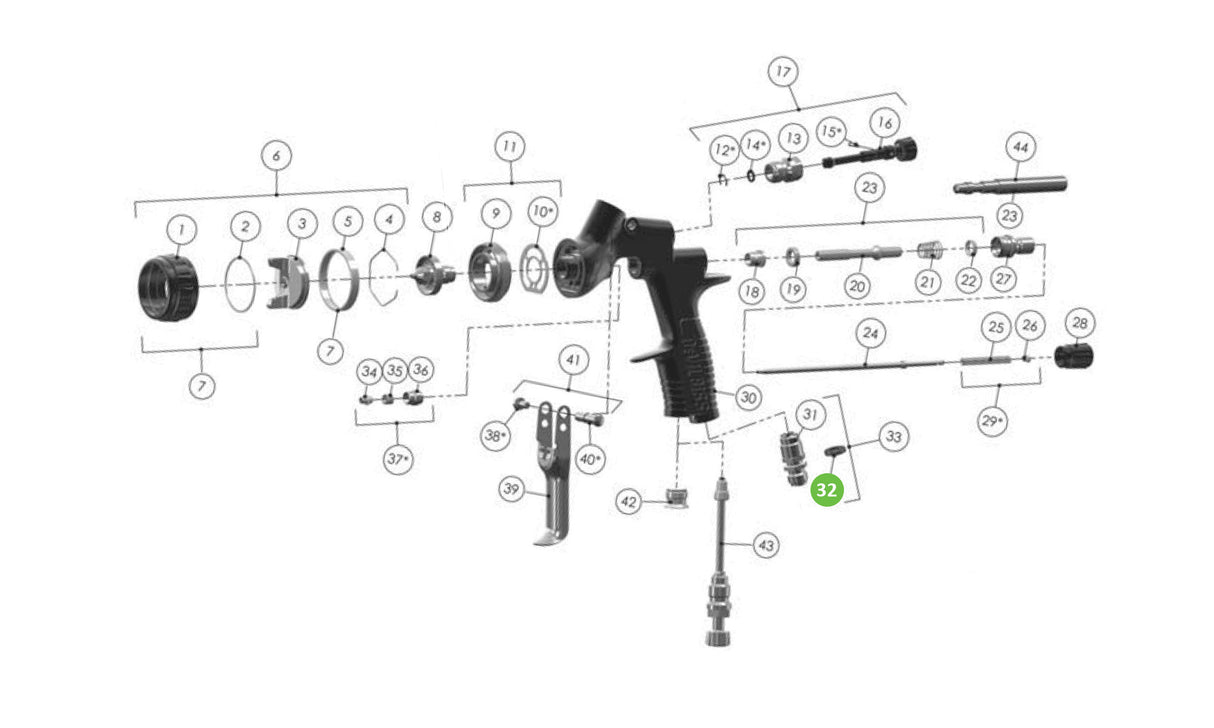

| Ref. No. | Part No. | Description |
| 1 | AIR CAP RETAINING RING | |
| 2 | SLIP RING | |
| 3 | AIR CAP | |
| 4 | 191972 | AIR CAP RETAINING CLIP |
| 5 | RETAINING RING SEAL | |
| 6 |
703540 (HVLP) 703538 (HE) 703539 (HE) |
HV30 (SEE CHART 1 FOR SPECS) AIRCAP & RING TE10 (SEE CHART 1 FOR SPECS) AIRCAP & RING TE20 (SEE CHART 1 FOR SPECS) AIRCAP & RING |
| 7 | 702725 | AIR CAP RETAINING RING & SEALS |
| 8 |
703521 703522 703523 703589 |
PRO-200-12, 1.2mm FLUID NOZZLE PRO-200-13, 1.3mm FLUID NOZZLE PRO-200-14, 1.4mm FLUID NOZZLE PRO-200-15, 1.5mm FLUID NOZZLE |
| 9 | SPRAY HEAD | |
| 10 | 702726 | SPRAY HEAD SEAL |
| 11 | 703529 | SPRAY HEAD KIT |
| 12 | CIRCLIP | |
| 13 | VALVE BODY | |
| 14 | O RING | |
| 15 | SPREADER VALVE PIN | |
| 16 | SPREADER VALVE ADJUSTING KNOB | |
| 17 | 702730 | SPREADER VALVE ASSEMBLY |
| 18 | FRONT VALVE SEAL | |
| 19 | VALVE SEAT | |
| 20 | SPINDLE | |
| 21 | AIR VALVE SPRING | |
| 22 | REAR VALVE SEAL | |
| 23 | 703530 | AIR VALVE KIT |
| 24 | 703531 | FLUID NEEDLE |
| 25 | NEEDLE SPRING | |
| 26 | SPRING PAD | |
| 27 | 703532 | HOUSING & SEAL KIT |
| 28 | 703533 | FLUID ADJUSTING KNOB |
| 29 | 703534 | NEEDLE SPRING KIT |
| 30 | GUNBODY | |
| 31 | AIR INLET | |
| 32 | 702735 | COLOUR ID RING KIT (4 COLOURS) |
| 33 | 702734 | AIR INLET KIT |
| 34 | NEEDLE PACKING | |
| 35 | PACKING SPRING | |
| 36 | PACKING NUT | |
| 37 | 702731 | PACKING, SPRING AND PACKING NUT KIT |
| 38 | TRIGGER SCREW | |
| 39 | TRIGGER | |
| 40 | TRIGGER STUD | |
| 41 | 703535 | TRIGGER STUD & SCREW KIT |
| 42 | PLUG | |
| 43 | 702737 | CHEATER VALVE (OPTIONAL) |
| 44 | AIR VALVE SERVICE TOOL (ONLY INCLUDED IN THE AIR VALVE KIT 23) |
