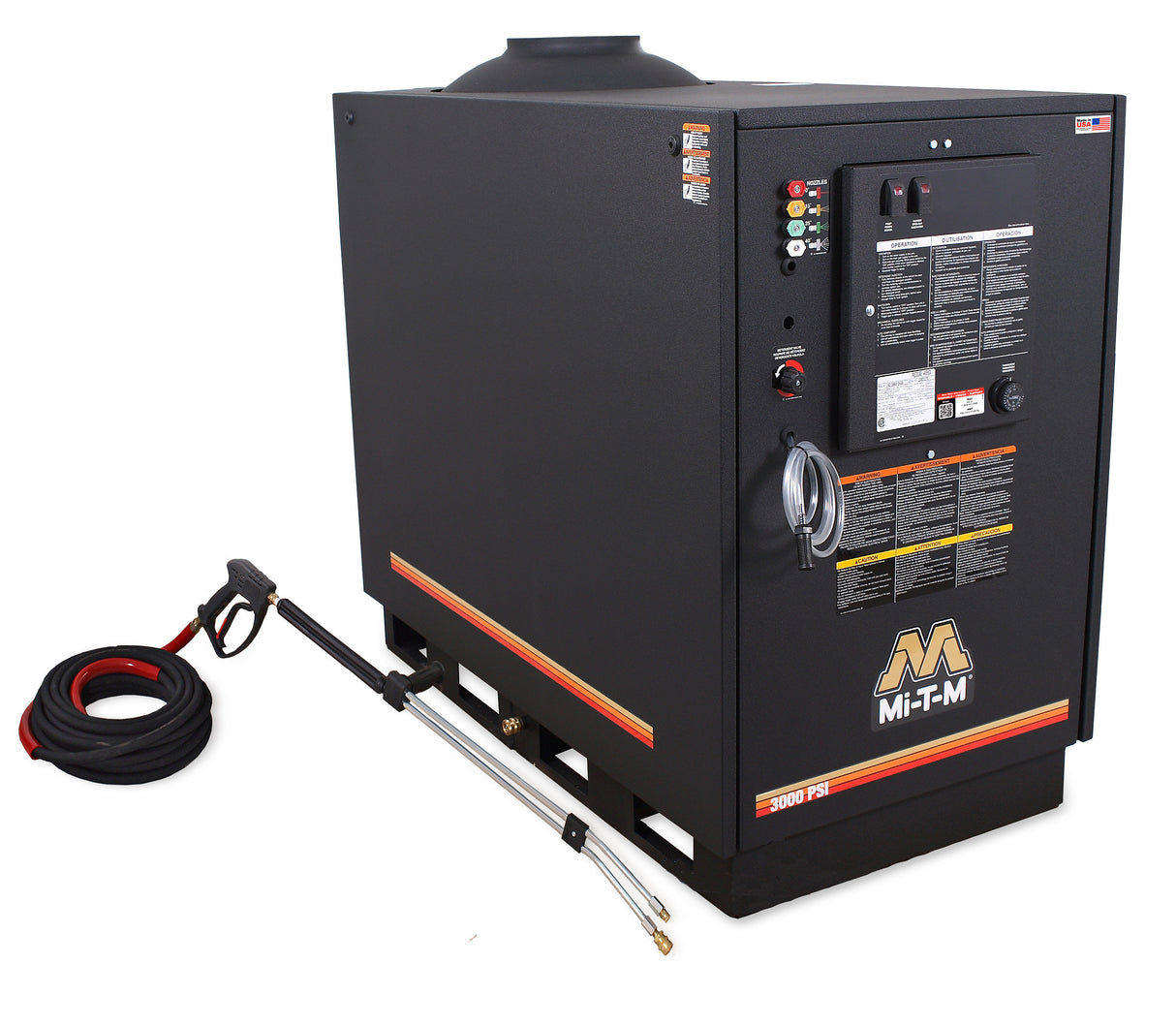

HG Series Natural Gas/LP Belt Drive - HG-3004-1230

$12,408.00

HG-3004-1230

The stationary HG Series is available in either natural gas or propane making it an ideal choice for applications that need a steady fuel source. Offering maximum cleaning power, this hot water machine is perfect for wash bays.

Pump: Factory preset unloader · Thermal relief valve · Adjustable high pressure detergent injector

Motor: Open drip-proof motor electric motor with thermal overload protection

Frame: Powder coated steel side panels and frame

Components: Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch stack · 24-volt control system · 1/2-inch schedule 80-coil heat exchanger · Electronic ignition with intermittent pilot

Miscellaneous: Maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance

Note:  You cannot order HX-0107 and HX-0108 together, you will need to order HX-0109 instead.  HX-0107 and HX-0108 can be ordered separately



Specifications

  • PSI

    3000

  • GPM

    3.9

  • Horsepower/Motor

    8.0 HP, 230V, 1Ø, 37.0A

  • Pump

    General

  • Mi-T-M No.

    3-0202

  • Natural Gas BTU Per Hour

    338,000

  • LP Gas BTU Per Hour

    326,000

  • Draft Diverter

    21 in.

Weights & Dimensions

  • Net Weight

    758.00 lbs.

  • Shipping Weight

    878.00 lbs.

  • Length

    56.50 in.

  • Width

    29.00 in.

  • Height

    49.75 in.



Options

  • HX-0104 K7 Unloader, Flow Activated - Auto Start/Stop N/A

    Converts pressure trapping unloader system to flow actuated K7 unloader. Pressure is not trapping in the discharge line when trigger is released

  • HX-0105 Liquid Propane - Vapor Only

    Converts natural gas pressure washer to operate on liquid propane (vapor only)

  • HX-0106 Hour Meter

    Displays the number of hours unit has been in operation

  • HX-0107 Time Delay Shutdown

    Timer will shut unit off automatically when trigger gun is released and timer reaches setting **Consult factory before ordering this option.**

  • HX-0108 (1) Remote Station - Auto Start/Stop N/A

    Adds control box which may be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option.**

  • HX-0109 Time Delay Shutdown and First Remote Box

    Timer will shut unit off automatically when trigger gun is released and timer reaches setting; Adds control box which may be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option.**

  • HX-0110 Additional Remotes - Up To 3

    Additional remotes that may be added to unit after the first remote is installed

  • HX-0111 Auto Start/Stop

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

  • HX-0121 250°F Steam Upgrade

    Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure

  • HX-0124 Auto Start/Stop and First Remote Option

    When trigger gun is released timer will turn unit off, when trigger gun is pulled unit will restart; Adds control box which may be mounted away from unit to control on/off, burner and soap injection



Limited Warranties:
  • 1 Year Electric Motor
  • 3 Year Coil
  • 7 Year General Pump



View Product Sheet
