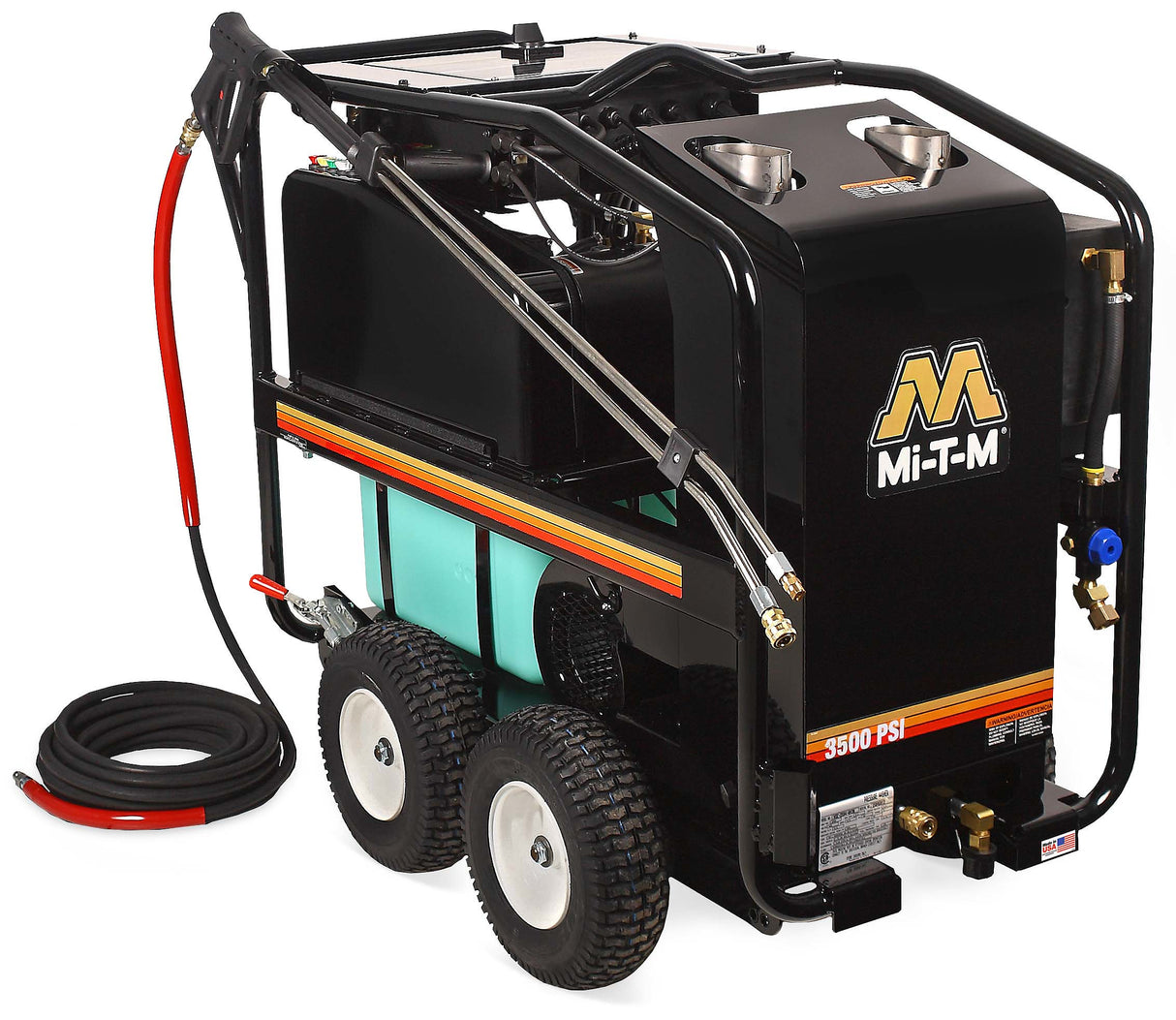

HSE Series Electric Belt Drive - HSE-3504-0M30

$10,828.00


HSE-3504-0M30

The HSE Series of belt driven hot water pressure washers are ideal for cleaning applications requiring 20 or more hours of use a week. Recommended for heavy, consistent cleaning applications this model is great for industrial and commercial jobs where you need to tackle nasty grime, oil and dirt.

Pump: External bypass system allows more water into the system to protect from heat build-up · Forged brass manifold · Thermal relief valve · High pressure detergent injector

Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord

Frame: Reinforced powder coated steel tube frame with center balanced lift · 13-inch flat-free tires

Components: Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off



Specifications

  • PSI

    3500

  • GPM

    3.3

  • Horsepower/Motor

    10.0 HP, 230-460V, 3Ø, 28.0A

  • Pump

    General

  • Mi-T-M No.

    3-0202

  • Plug Type

    NEMA L15-30P

  • Burner Fuel Tank Capacity

    10.0 gallon

  • Burner Fuel Cons.

    2.10 gph

  • BTU Per Hour

    294,000

Weights & Dimensions

  • Net Weight

    612.00 lbs.

  • Shipping Weight

    742.00 lbs.

  • Length

    49.50 in.

  • Width

    28.00 in.

  • Height

    40.50 in.



Options

  • HX-0070 Auto Start/Stop

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

  • HX-0073 Auto Start/Stop - Steam

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F

  • HX-0074 Auto Start/Stop - CAD Cell

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Monitors burner for proper ignition

  • HX-0077 Auto Start/Stop - Steam - CAD Cell

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; Monitors burner for proper ignition

  • HX-0087 460V on 10.0 HP, 3 Phase Models

    Upgrades 230V, 3-phase models to operate at 460V, 3-phase

  • HX-0088 Skid Feet

    Stationary applications

  • HX-0161 Hour Meter

    Displays the number of hours unit has been in operation



Limited Warranties:
  • 1 Year Electric Motor
  • 3 Year Coil
  • 7 Year General Pump



View Product Sheet
