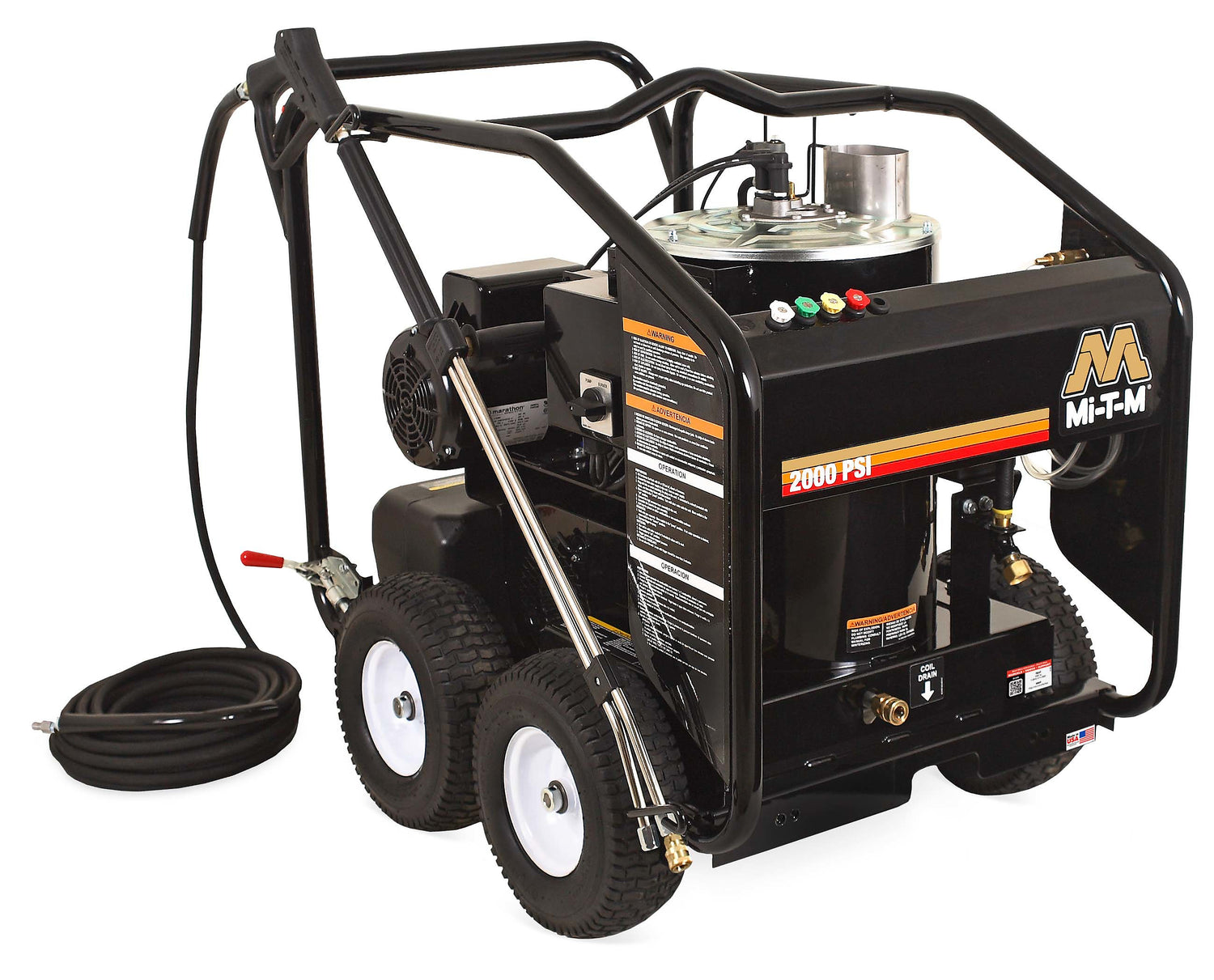

HSE Series Electric Direct Drive - HSE-2003-0MG10

$6,906.00


HSE-2003-0MG10

The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for their efficiency and longevity, they feature a top fired heat exchanger that is completely accessible.

Pump: Forged brass manifold · Thermal relief valve · High pressure detergent injector

Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord

Frame: Reinforced powder coated steel tube frame with center balanced lift · Convenient gun/wand holder and hose wrap · 13-inch flat-free tires

Components: Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance



Specifications

  • PSI

    2000

  • GPM

    2.8

  • Horsepower/Motor

    4.0 HP, 230V, 1Ø, 18.0A

  • Pump

    General

  • Mi-T-M No.

    3-0168

  • Plug Type

    NEMA 6-20P

  • Burner Fuel Tank Capacity

    4.0 gallon

  • Burner Fuel Cons.

    1.48 gph

  • BTU Per Hour

    207,200

Weights & Dimensions

  • Net Weight

    316.00 lbs.

  • Shipping Weight

    439.00 lbs.

  • Length

    43.00 in.

  • Width

    29.50 in.

  • Height

    36.50 in.



Options

  • HX-0233 Adjustable Thermostat

    Operator is able to adjust outlet water temperature between 98°-248°F

  • HX-0235 Hour Meter

    Displays the number of hours unit has been in operation

  • HX-0240 300°F Steam

    Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F

  • HX-0243 Auto Start/Stop

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

  • HX-0244 Time Delay Shutdown

    Timer will shut unit off automatically when trigger gun is released and timer reaches setting



Limited Warranties:
  • 1 Year Electric Motor
  • 3 Year Coil
  • 7 Year General Pump



View Product Sheet
