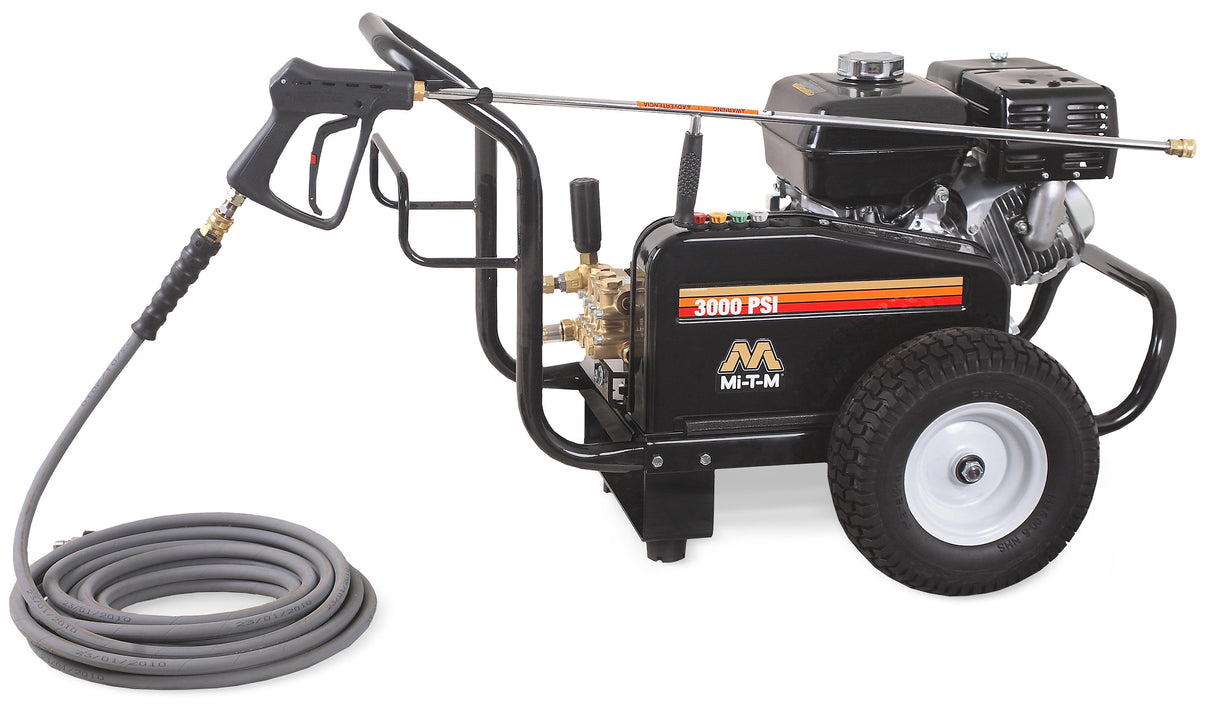

JCW Series Gasoline Belt Drive - JCW-3003-2MHB

$3,611.00


JCW-3003-2MHB

The belt-drive JCW Series is designed for industrial cleaning jobs. It can easily handle tough and demanding jobs on construction jobsites, agricultural locations or commercial cleaning applications.

Pump: Equipped with the Mi-T-M Pressure Relief Start which eliminates pressure build-up in the system · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection

Frame: Powder coated steel frame and base plate with 1-1/4-inch tube handles · Convenient gun/wand holder and hose wrap · Two-piece belt guard for quick access to belts · 10-inch flat-free tires

Unit Includes: Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch non-marking high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off



Specifications

  • PSI

    3000

  • GPM

    3.0

  • Displacement/ Engine

    270cc Honda GX270 OHV

  • Pump

    AR

  • Mi-T-M No.

    3-0308

  • Unloader

    Mi-T-M, Adjustable Pressure

  • Lance

    36 in.

Weights & Dimensions

  • Net Weight

    178.00 lbs.

  • Shipping Weight

    232.00 lbs.

  • Length

    39.50 in.

  • Width

    28.50 in.

  • Height

    26.00 in.



Options

  • CX-0005 Insulated Dual Lance

    Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch

  • CX-0082 External Bypass System

    Allows more water into the system to protect from heat build-up

  • CX-0085 External Bypass System

    Allows more water into the system to protect from heat build-up



Limited Warranties:
  • 1 Year Mi-T-M Unloader
  • 3 Year Honda Engine
  • 7 Year AR Pump



View Product Sheet
