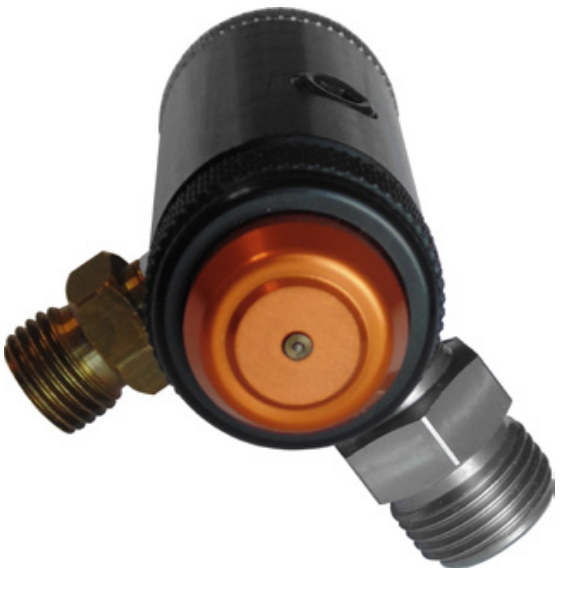

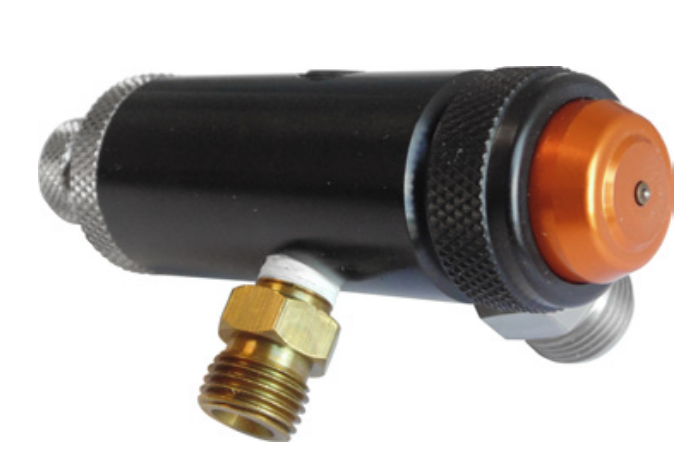

MiniCat Spray Gun


Manufacturer: C.A. Technologies
Part Number: 60-650-xxx

Description: AUTOMINICAT-13 – (Mini Automatic) Fixed Fan Automatic Air Spray Gun

Contact Us for different Nozzle Sizes.

MINICAT (Mini Automatic) Fixed Fan Automatic Air Spray Gun. C.A.Technologies MiniCat is a fine finish conventional air spray automatic gun for precision finishing and painting of small parts. Designed for production use, the MiniCat is perfect for any application that requires a fine line to a small round fan pattern. For conventional fine finish atomization, this gun cannot be beaten. There is no fan adjustment, this spray gun only provides a circular spray pattern and can range from anywhere between 1/4 in. to 2″ wide, depending on the distance from the substrate, nozzle size, fluid, and air pressures. The fluid needle is controlled and actuated by atomizing air pressure. A minimum of 25 PSI air pressure is required to actuate the fluid needle. Various Siphon and Pressure Feed nozzles available. Choose nozzle from the dropdown.

Recommended operating air pressure 25 – 50 PSI.

Minimum operating air pressure: 25 PSI

Air cap provides a full round fan.

Air Inlet: 1/4in NPS(m)

Fluid Inlet: 3/8in NPS(m)

Supply hoses are sold separately.

Repair Kit P/N: 10-109

AUTOMINICAT-06S – 0.6mm / .022 Siphon

AUTOMINICAT-06P – 0.6mm / .022 Pressure

AUTOMINICAT-07S – 0.7mm / .028 Siphon

AUTOMINICAT-07P – 0.7mm / .028 Pressure

AUTOMINICAT-10 – 1.0mm / .040 Pressure

AUTOMINICAT-12 – 1.2mm / .046 Pressure

AUTOMINICAT-13 – 1.3mm / .052 Pressure

AUTOMINICAT-15 – 1.5mm / .059 Pressure

AUTOMINICAT-18 – 1.8mm / .070 Pressure
