Manufacturer: Wagner
Part Number: 2349287

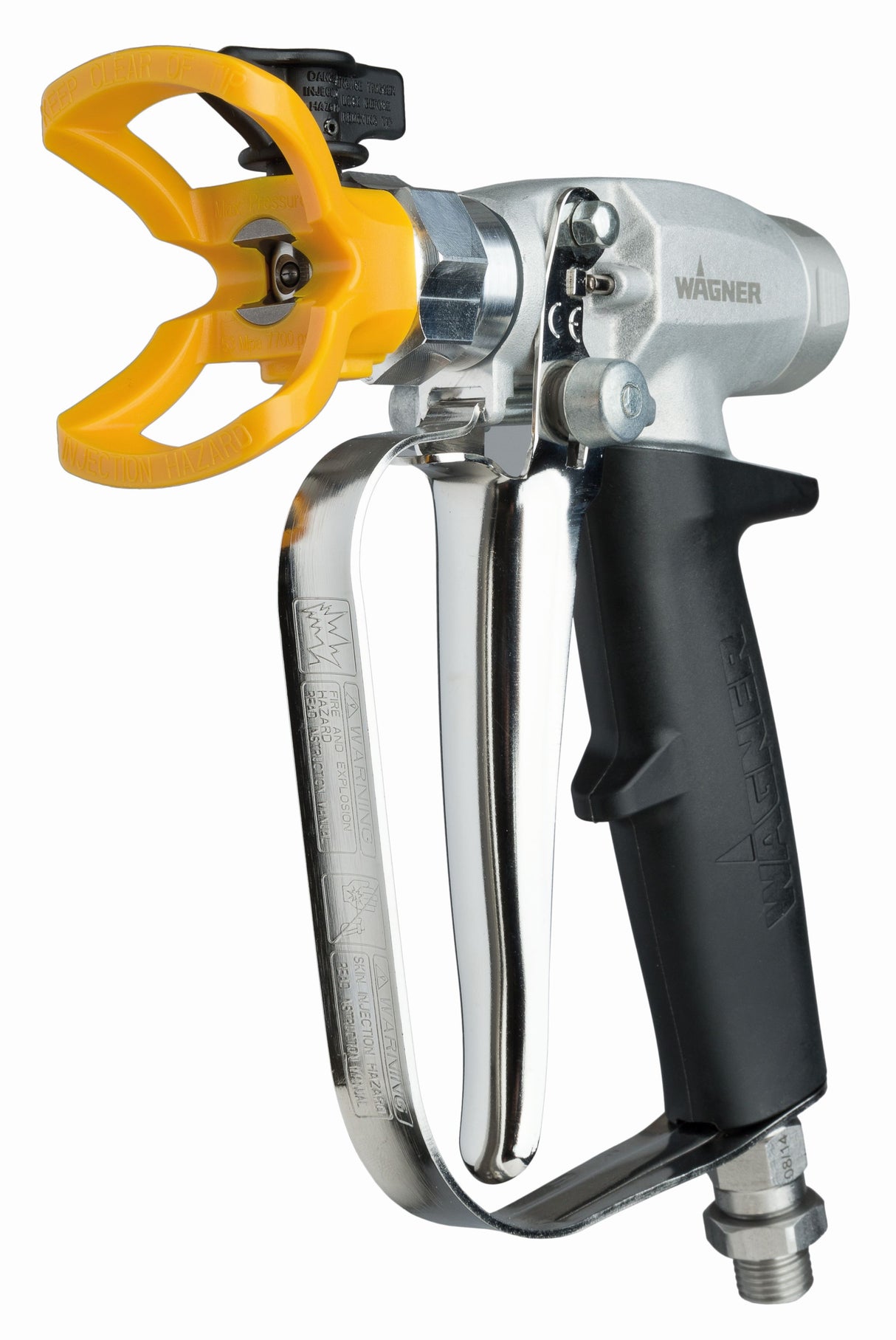

Airless manual gun

Airless manual gun with 4-finger-trigger for heavy corrosion protection up to 530 bar. With filter, ProfiTip nozzle holder, and rotary fitting. Can also be used with insulating handle for heated product.

Trigger: 4-finger

Maximum Material Pressure: 530 Bar

Thread Nozzle Guard: 7/8‘‘ - 14 UNF - 2A

Material Connection:  A 1/4" NPS

Weight: 580 Grams

Noise Level Max.: 85 dB(A)

Length: 160 MM

Height: 188MM

Atex Designation: Ex II 2G X


Low trigger pull

Noticeably low trigger and holding force even at the highest operating pressure.

Robust and dependable

Ready to use for the highest pressures and in the toughest working conditions.

High filtration efficiency

Fast and easy change of the WAGNER cage filter without tools for reliable operation and flawless surfaces.

WAGNER ProfiTip nozzle

Excellent spraying properties. Easily adjustable nozzle guard. 180° rotation of the nozzle gets rid of blockages quickly and reliably.

ProfiTip nozzle guard

Free to rotate and dirt-resistant.
With reversible nozzle.


Smooth, depending on the model either 2- or 4-finger trigger.

Safety guard

Double function – it‘s also the tool for changing
the cage filter.

Extremely stable valve tappet

With additional guide and tungsten carbide inserts on the trigger.

Stable valve needle

Robust and durable.

Aluminum housing

Light but still extremely robust.

Ergonomic grip

Secure support in the crook of the thumb. Insulated, also suitable for heated material.


High filtering capacity. Simple and clean replacement.

Hose connection

With smooth swivel hose connection.


Accessories and parts

  • 2367857 - Wagner Seal kit PT-HD GM1 metal
  • 2353548 Wagner Seal kit PT-HD GM1 plastic
  • 2371335 - Wagner Seal
  • 1006xxx - WAGNER Profi Tip HD
  • 556xxx - WAGNER PROTEC tip
