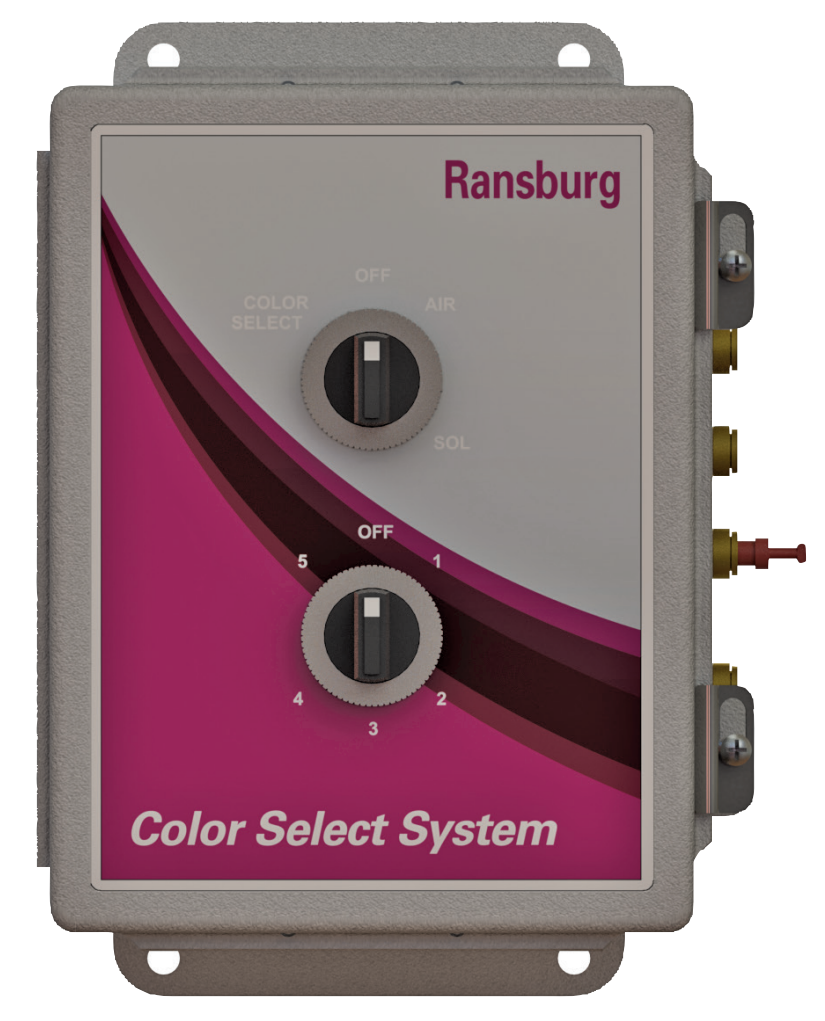

Color Select Box Main
Maanufacturer: Carlisle Ransburg
Part #: LPNE5002-00
Description: Main color select box for Ransburg Color Select System. For use with 1-5 color valves. If 6-15 color valves are used, a Secondary Color Select System Box is required.
The Color Select System™ from Ransburg provides an easy and accurate means of changing coating material in any application. Flexible enough to handle as many as fifteen different coating materials, this system is suited for the most demanding applications. The pneumatically-operated fluid valve assembly is controlled with one or two color select boxes which feature easy to use color select switches. Boasting a Class 1, Div.1 approval rating, the Color Select System can be safely mounted anywhere in the facility, even in a hazardous environment.
Literature:
Parts and Accessories:
| Ref. No. | Part No. | Description |
| 1 | LPNE0005-01 | Color Select Enclosure |
| 2 | 41-FP-1011 | Plug, #10-32 |
| 3 | 41-FTP-1023 | Connector Fitting 5/32 Tube x 10-32 |
| 4 | 41-BAS-1000 | Logic Base |
| 5 | 41-VAP-1004 | Air Piloted Valve, "NOT" Logic (No) |
| 6 | 41-FTP-1015 | Tube Reducer, 5/32" x 1/4" |
| 7 | 41-VMC-1002 | Manual Control Valve (3 Way, 6 Position) |
| 8 | 41-FBH-1000 | Bulkhead Fitting, 1/4" Tube |
| 9 | LS0079 | DIN Rail, 6" Length |
| 10 | LSMM0051-00 | Foam Mounting Tape, 1" Width |
| 11 | 41-FTP-1050 | "Y" Tube Fitting, 1/4" Male x 5/32" Females |
| 12 | 41-PLG-1001 | Tube Plug, 1/4" |
| 13 | SSH-7739 | Sheet Metal Plug |
