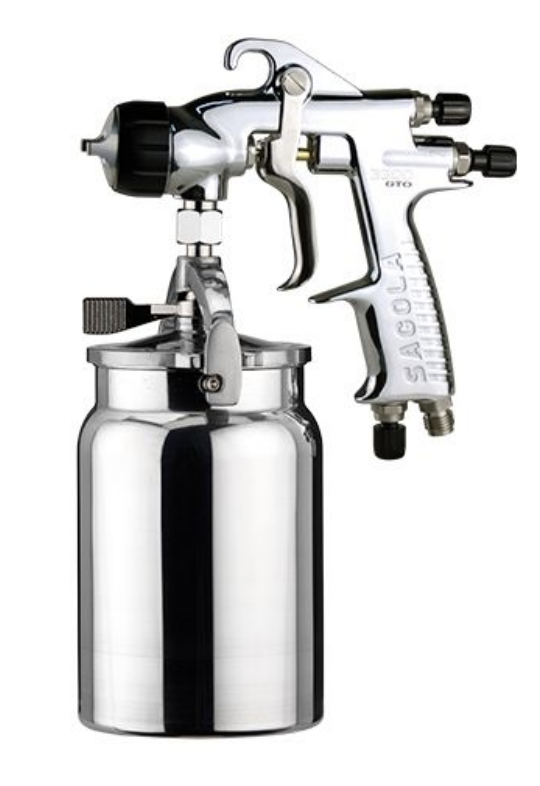

Sagola 3300 GTO Suction Spray Gun

Sagola 3300 GTO Suction Spray Gun

Manufacturer: Sagola

Part #'s: See Below

• PG10120910 = Sagola 3300 GTO Suction with EPA Aircap & 1.40mm Stainless Steel Needle & Nozzle Kit
• PG10120911 = Sagola 3300 GTO Suction with EPA Aircap & 1.60mm Stainless Steel Needle & Nozzle Kit
• PG10120912 = Sagola 3300 GTO Suction with EPA Aircap & 1.80mm Stainless Steel Needle & Nozzle Kit

Description: Designed to be light, robust and ergonomic, the Sagola 3300 GTO Suction Spray Gun is ideal for enamels, varnishes, primers and basecoats.

Features:

• High speed application and large fan size
  With low air consumption.
• Minimal maintenance
  No gaskets, rubber or plastic parts in the product area, just metal in contact with metal.
• EPA aircaps, stainless steel needles and nozzles
  Enables a high quality spray, whatever the coating.

Sagola 3300 GTO Suction Includes:

• Sagola 3300 GTO Aircap
• 1L (33.8floz) Suction Cup
• Stainless Steel Needle & Nozzle Kit
• Cleaning Brush
• Wrench


Specifications:

Cup Capacity	1 litre (33.81fl oz)
Cup Type	Aluminium Suction Cup
Product Inlet Coupling	9.5mm (3/8”) BSP Male
Air Inlet Coupling	6.35mm (1/4”) BSP Male
Average Sound Pressure Level	80 dB
Design Pressure	8bar (116psi)
Working Pressure	2 - 3bar (29 - 43.5psi)
Compliance	ATEX II 2G Ex ia IIC T4 Gb (Directive 2014/34/EU), EN 1953, CE
Dimensions without Cup	173 x 172 x 42mm (6.81 x 6.77 x 1.65”)
Weight	504g (1.11lbs)
Packing List	Sagola 3300 GTO Suction Spray Gun with aircap, needle & nozzle kit (supplied fitted), Hexagonal Wrench & Cleaning Brush

Sagola 3300 GTO Suction Aircaps:

Part No.	Description
56418645	Sagola 3300 GTO: EPA Aircap
PT56418658	Sagola 3300 GTO Suction: HVLP Aircap
PARTS
56418679	Aircap Gasket & Spring Clip Kit
56418682	Aircap Gasket, Pack of 5



Sagola 3300 GTO Suction Needles & Nozzles:

Part No.	Description:
10011181	Sagola 3300 GTO: 1.40mm Stainless Steel Needle & Nozzle Kit
10011182	Sagola 3300 GTO: 1.60mm Stainless Steel Needle & Nozzle Kit
10011183	Sagola 3300 GTO: 1.80mm Stainless Steel Needle & Nozzle Kit



Sagola 3300 GTO Suction Common Spare / Replacement Parts:

Part No.	Description:
40000335	RC2 Air Flow Regulator with Analogue Pressure Gauge
PT56418014	1L (33.8floz) Suction Cup Product Filter, Pack of 10
PT56418074	1L (33.8floz) Suction Cup Complete Kit
PT56418013	1L (33.8floz) Suction Cup Anti-Drip Lid, Pack of 5
PT56418509	1L (33.8floz) Suction Cup Closing Washer
56418669	Air Valve Kit
56418494	Air Valve Gasket, Pack of 6
54110012	Air Valve Seat
57212211	Packing Gland



Literature:

• Data Sheet
• Manual
• Line Drawing
