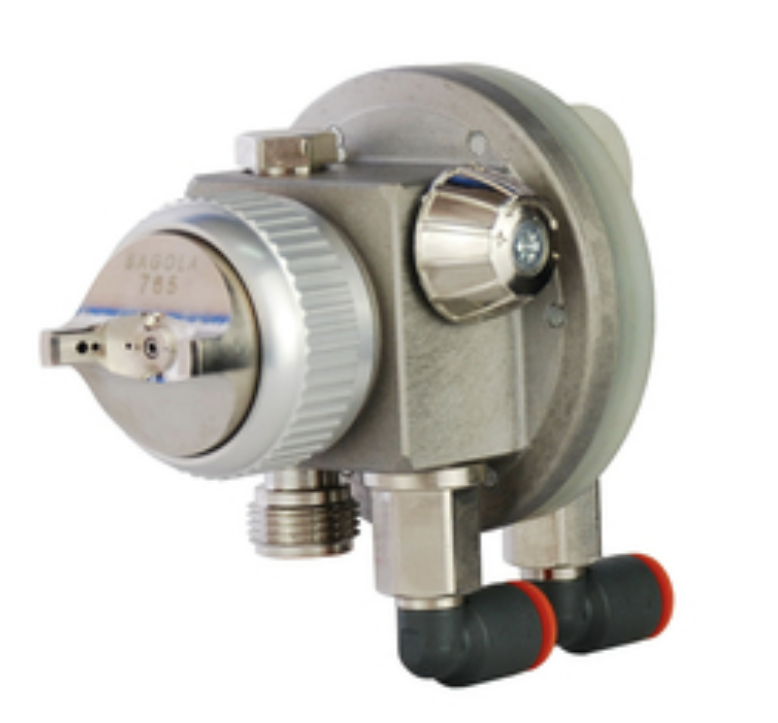

4098 Automatic Air Spray Gun
Manufacturer: Sagola
Part #: PG10250601
Description: The Sagola 4098 is a compact automatic spray gun designed for the application of ceramic and abrasive products.
Packing List: Sagola 4098 Automatic Spray Gun with 765 Aircap & 1.40mm Stainless Steel Nozzle
Features:
Compact & lightweight
Due to its small size and weight it can be installed in places with restricted space.
Low maintenance
Product closure is accomplished using a membrane system.
3 year warranty
With minimal maintenance required.
Specifications:
| Dimensions: | 70 x 90 x 110mm (2.76 x 3.54 x 4.33”) |
| Weight: | 470g (1.03lbs) |
| Operation Inlet Connection: | 8mm (0.314") |
| Air Inlet Connection: | 8mm (0.314") |
| Product Inlet Connection: | BSP 3/8" |
| Maximum operational pressure | 3.5bar (50.7psi) |
| Maximum Air Pressure | 6bar (87psi) |
| Recommended maximum air pressure | 2 – 3bar (29 – 43.5psi) |
| Materials in contact with the product: | Stainless steel Anodized aluminium Tungsten carbide Brass Teflon |
| Recommended application distance | 118 – 20cm (7 – 7.8") |
| Recommended application distance Medium pressure | 20 - 25 cm |
| Ref. No. | Part No. | Description |
| 01 | See Below | Sagola 4098 Stainless Steel or Tungsten Carbide Various Nozzles |
| 02 | PT56418266 | Sagola 4098 765 Aircap |
Nozzles (Product Page - Click Here):
- Stainless Steel:
- 4098 Nozzle 0.80mm
- 4098 Nozzle 1.00mm
- 4098 Nozzle 1.20mm
- 4098 Nozzle 1.40mm
- 4098 Nozzle 1.60mm
- 4098 Nozzle 1.80mm
- 4098 Nozzle 2.20mm
- 4098 Nozzle 2.50mm
- 4098 Nozzle 2.80mm
- Tungsten Carbide:
- 4098 Nozzle 1.80mm
- 4098 Nozzle 2.20mm
- 4098 Nozzle 2.80mm
