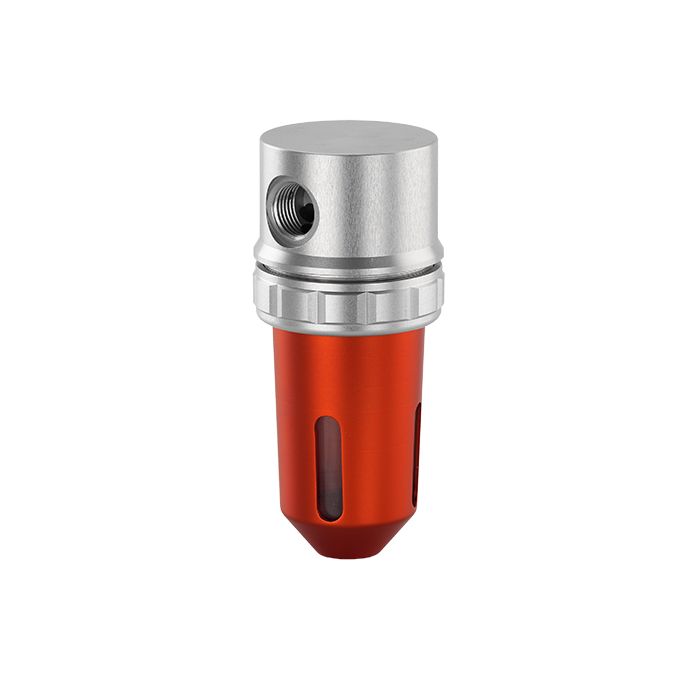

Sagola 439 Plus Air Filter

Sagola 439 Plus Air Filter

Manufacturer: Sagola

Part #'s: 1072040X

• 10720401 = Sagola 439 Plus Air Filter, 1/2"; 0 - 10 Bar (0 - 145 psi) with 40µm Porous Bronze Filter
• 10720402 = Sagola 439 Plus Air Filter, 3/8"; 0 - 10 Bar (0 - 145 psi) with 40µm Porous Bronze Filter
• 10720403 = Sagola 439 Plus Air Filter, 1/4"; 0 - 10 Bar (0 - 145 psi) with 40µm Porous Bronze Filter

Description: AIR PURIFIER. High flow filter for insertion in air lines. Semiautomatic draining system. Minimum pressure loss. Suitable for all type of installations, accessories included. Made in aluminum, high-durability. Liquid residue check window. Minimum maintenance.

Features:

• Semi-automatic draining system.
• Minimum pressure loss.
• Suitable for all type of installations, accessories included.
• Made in aluminum, high-durability.
• Liquid residue check window.
• Minimum maintenance.

Packing List: Sagola 439 Plus Air Purifier.

Specifications:

Air Flow (at 7bar)	1,700l/min (88cfm)
Max Working Pressure	10bar (145psi)
Max Working Temp	90°C (194°F)
Drain System	Semi-Automatic
Dimensions	158 x 73 x 73 mm (6.22 x 2.87 x 2.87”) without coupling
Weight	553g (19.51lbs)

Parts:

Ref. No.	Part No.	Description
14	54550016	Analogue Pressure Gauge 0 - 12 bar (0 - 160 psi)
15/1	11000112	Connector - Brass: M-BSPT 1/2" to F-BSPP 3/8"; Pack of 2
15/2	11000113	Connector - Brass: M-BSPT 1/2" to F-BSPP 1/4"; Pack of 2



Accessories:

• 53610204 Porous Bronze Filter (40 Microns)
• Sagola Anti-Static Compressed Air Hose, 1/4"
• 56418589 Lubricant Grease (SAE 10), 100ml (3.38fl oz)

Literature:

• Brochure
• Data Sheet
• Manual
• Line Drawing
