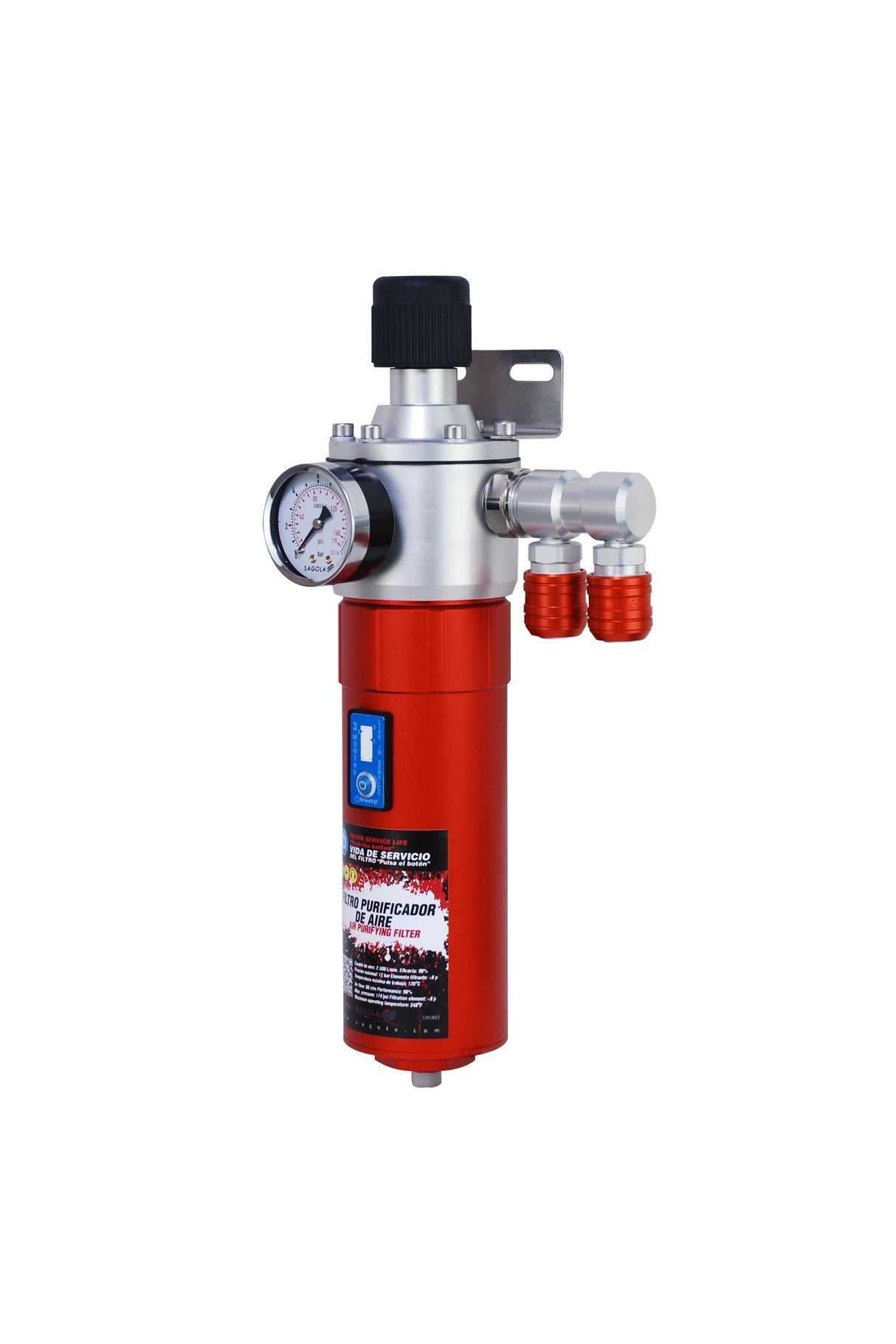

Sagola 5100X Air Regulator Filter

5100X Air Regulator Filter - Stage 1

Manufacturer: Sagola

Part #'s: 1073020X

• 10730202 = Sagola 5100X Air Regulator Filter - 1 Stage; US-Mil Version
• 10730206 = Sagola 5100X Air Regulator Filter - 1 Stage; Euro-Profile Version
• 10730208 = Sagola 5100X Air Regulator Filter - 1 Stage; Nitto Version

Description: Air from a compressor circulating through the network contains particles and solid impurities, water from the relative humidity of the suction air and burnt oil from the compressor. All these impurities accompanied by compressed air reach the vital parts of tools causing oxidation and premature wear.

For these reasons it is necessary to eliminate impurities by means of a filter, taking into account that the maximum performance with the minimum pressure loss must be obtained. SAGOLA FILTRATION SYSTEMS guarantee the maximum air quality and the minimum pressure loss throughout the line.

5100X Filter Regulator:

• Double outlet allows for use of 2 tools at once
• Ideal for waterborne and HS paints
• Maximum air filtration for very high quality finishes
• Minimum loss of pressure
• Friction and centrifuged filtering retains water and impurities. Incorporates an 8 micron sinterised brass filter.
• Valid for HS paints and highest quality finishes. Self-draining system and assisted regulator wheel.

Packing List: Sagola 5100X Air Regulator Filter - Single Stage containing Brass Filter (8μm) with Integrated “Life” Timer, Male BSPT 6.35mm (1/4”) Coupling (x2)*, Analogue Pressure Gauge (x1) and Support Bracket.

Specifications:

Air Flow (at 7bar)	>3000LPM (106CFM)
Air Inlet	12.7 mm (1/2”) BSP
Air Outlet	6.35 mm (1/4”) BSP
Max Working Pressure	12bar (174 psi)
Max Working Temp	90°C (194°F)
Drain System	Automatic
Dimensions	114 x 119 x 339mm (4.49 x 4.69 x 13.35”)
Weight	2.64kg (5.82lbs)



Parts:

Ref. No.	Part No.	Description
19	11010531	Quick Coupling - Aluminum Ultralight: M-BSPT 1/4", US-Mil
23	54550016	Analogue Pressure Gauge 0 - 12 bar (0 - 160 psi)
25	56450010	Automatic Drain Valve



Accessories:

• 56418521 Sagola 5100X to 5200X Conversion Kit
• 56418719 Sinterised Brass Filter (8µm)
• 56418704 Double Outlet Quick Coupling Kit: Male BSP 1/4", US-Mil (Optional)
• Sagola Anti-Static Compressed Air Hose, 1/4"
• 56418589 Lubricant Grease (SAE 10), 100ml (3.38fl oz)
• 11020420 Quick Connector - Steel: M-BSPT 1/4", US-Mil, Pack of 2
• Threaded Brass Connectors
  • 11000101 = Connector - Brass: M-BSPT 1/4" to M-BSPT 1/4"; Pack of 2
  • 11000102 = Connector - Brass: M-BSPT 1/2" to M-BSPT 1/2"; Pack of 2
  • 11000103 = Connector - Brass: M-BSPT 3/8" to M-BSPT 3/8"; Pack of 2
  • 11000104 = Connector - Brass: M-BSPT 1/2" to M-BSPT 3/8"; Pack of 2
  • 11000105 = Connector - Brass: M-BSPT 3/8" to M-BSPT 1/4"; Pack of 2
  • 11000106 = Connector - Brass: F-BSPP 1/2" to M-BSPT 3/8"; Pack of 2
  • 11000107 = Connector - Brass: F-BSPP 3/8" to M-BSPT 1/4"; Pack of 2
  • 11000108 = Connector - Brass: M-BSPT 3/8" to F-BSPP 1/4"; Pack of 2
  • 11000109 = Connector - Brass: M-BSPT 1/2" to Barbed 8mm; Pack of 2
  • 11000110 = Connector - Brass: M-BSPT 3/8" to Barbed 8mm; Pack of 2
  • 11000111 = Connector - Brass: M-BSPT 1/4" to Barbed 8mm; Pack of 2
  • 11000112 = Connector - Brass: M-BSPT 1/2" to F-BSPP 3/8"; Pack of 2
  • 11000113 = Connector - Brass: M-BSPT 1/2" to F-BSPP 1/4"; Pack of 2
