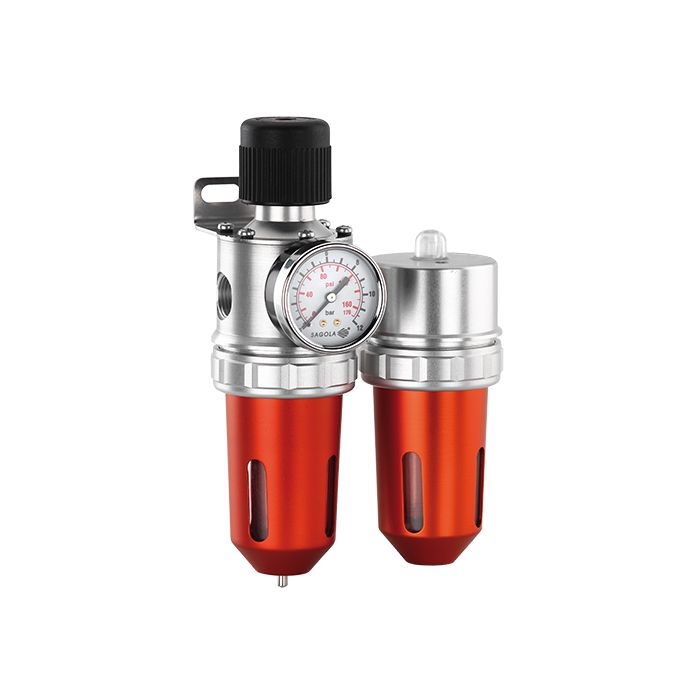

Sagola 970 Plus Air Lubricator / Filter / Regulator

Sagola 970 Plus Air Lubricator / Filter / Regulator

Manufacturer: Sagola

Part #'s: 1075030X

• 10750301 = Sagola 970 Plus Air Lubricator / Filter / Regulator, 1/2" 0 - 10 Bar (0 - 145 psi) with 40µm Porous Bronze Filter
• 10750302 = Sagola 970 Plus Air Lubricator / Filter / Regulator, 3/8" 0 - 10 Bar (0 - 145 psi) with 40µm Porous Bronze Filter
• 10750303 = Sagola 970 Plus Air Lubricator / Filter / Regulator, 1/4" 0 - 10 Bar (0 - 145 psi) with 40µm Porous Bronze Filter

Description: PURIFIER-REGULATOR + LUBRIFICATOR. Specially design for the workshop, delivers clean air and lubricates all its tools. Accurate control of the oil supply due to its manual drop by drop system. No pressure loss due to in-line design. Maximum reliability and productivity in with the minimum space.

Features:

• Accurate control of the oil supply due to its manual drop by drop system.
• No pressure loss due to in-line design.
• Maximum reliability and productivity in with the minimum space.

Packing List: Sagola 970 Plus Purifier-Regulator & Lubricator.

Specifications:

Air Flow (at 7bar)	1920l/min (67.8cfm)
Max Working Pressure	10bar (145psi)
Max Working Temp	90°C (194°F)
Drain system	Semi-Automatic
Dimensions	229 x 148 x 115mm (9.01 x 5.83 x 4.53”) without coupling
Weight	1450g (51.15lbs)

Parts:

Ref. No.	Part No.	Description
03	11000102	Connector - Brass: M-BSPT 1/2" to M-BSPT 1/2"; Pack of 2
04	54550016	Analogue Pressure Gauge 0 - 12 bar (0 - 160 psi)
05/1	11000112	Connector - Brass: M-BSPT 1/2" to F-BSPP 3/8"; Pack of 2
05/2	11000113	Connector - Brass: M-BSPT 1/2" to F-BSPP 1/4"; Pack of 2



Accessories:

• 53610204 Porous Bronze Filter (40 Microns)
• Sagola Anti-Static Compressed Air Hose, 1/4"
• 56418589 Lubricant Grease (SAE 10), 100ml (3.38fl oz)

Literature:

• Brochure
• Data Sheet
• Manual
• Line Drawing
