Sagola KARA Double Diaphragm Air Spray Pump

$2,456.40
Shipping calculated at checkout.

KARA Double Diaphragm Air Spray Pump

Manufacturer: Sagola

Part #'s: See Below

    Description: The KARA pumps are a range of air operated double diaphragm pumps for conventional air spray applications. Engineered to supply high-quality coating materials for wood, plastic, metal or ceramics.

    LTL Freight Shipping Only. You will be contacted with a freight quote after placing order.

    Features:

    • Powerful performance - The KARA pump's high fluid delivery keeps paint homogenous whilst ensuring more than enough pulse-free flow at the nozzle, even with long fluid hoses up to 30m (98.4ft). In fact, with up to 40 litres per minute (10.6gpm) maximum free flow, the KARA's high performance can supply a second spray gun.
    • Durable and hardwearing - Its rugged stainless steel and aluminium construction ensures the KARA has low maintenance and a long service life.
    • Efficient - With an air consumption of 0.28cfm (2.09gpm) the KARA ensures economical compressor running costs.
    • Versatile - Choice of suction hose or product tank, suitable for spraying solvent or waterborne coatings, primers, fillers, stains and lacquers.
    The KARA 1-30 and 1-40 are suitable for use with Solvent Based and Water Based materials as well as a wide range of products:

    Single component (1k) epoxies Single component (1k) polyurethanes Plural (2k) & multi -component (3k) low viscose polyurethane epoxies¹
    Water based enamel coatings Solvent-based primer and basecoats Quick air dry enamel coatings
    Metallic-based epoxy coatings Wood stains High solid pre-catalysed lacquers
    Acid-catalyst wood lacquers Waterborne lacquers UV curable epoxies
    Water based UV coatings 1k fire-retardant coatings Natural wood oils
    Antimicrobial lacquers Sealers and undercoats



    KARA 1-30 and 1-40 Pump Specifications:

    Ratio 1:1
    Maximum fluid particle size 0.25mm (10mils)
    Fluid temperature range 4.4 - 60°C (40 - 140°F)
    Fluid inlet size 1/2” BSP Male
    Fluid outlet size 3/8” BSP Male
    Compatible Products Solvent and waterbased
    Wetted Parts (1-30) Stainless Steel, Polyethylene, Aluminum
    Wetted Parts (1-40) Polypropylene, PTFE, Aluminum
    Pump Body / Cylinder Housing Polyamide / Aluminium
    Air Pressure Operating Range 1-7bar (14-101psi)
    Air Consumption 1.8lpm (1-30) / 7.92lpm (1-40)
    Maximum Air Inlet Pressure 87psi (1-30) / 101psi (1-40)
    Air Inlet 1/4” BSP Female
    Air Exhaust / Silencer Port 1/2” BSP Female
    Ambient Air Temp 4.4 - 60°C (40 - 140°F)
    Maximum Fluid Outlet Pressure 87psi (1-30) / 101psi (1-40)
    Product Output per Cycle 80 cc (1-30) / 165 cc (1-40)
    Maximum Free Flow 30 lpm (1-30) / 40 lpm (1-40)
    Free Flow Delivery @ 60 CPM 4.8 lpm (1-30) / 10 lpm (1-40)
    Weight (Pump only) 7.3 lbs (1-30) / 10.1 lbs (1-40)
    Weight (Wall Mounted) 23.1 lbs (1-30) / 26 lbs (1-40)
    Weight (Cart Mounted) 42.11 lbs (1-30) / 45.19 lbs (1-40)
    Weight (Hopper) 0.3 lbs
    Dimensions (Cart Mount) 17.3 x 19.62 x 39.36"
    Dimensions (Wall Mount) 13.13 x 17.36 x 24.79"



    When selecting a model, the following options are available:

    Pump Type: 1-30, 1-40 or 1-40A

    Mount Type: Wall or Cart & Wall

    Spray Package Type: No Gun or With Gun

    Gun Type: Sagola X 4100, Sagola 3300 GTO or
    Sagola 4100 Xtreme Ceramic Pressure Spray Gun (recommended for use with Sagola Kara 1-40A)

    All ordering will be by part #, please refer to them below

    • Pumps and Mounts:
      • PSD130-AS-W = Sagola Kara 1-30 Double Diaphragm Air Spray Pump - Wall Mount only version

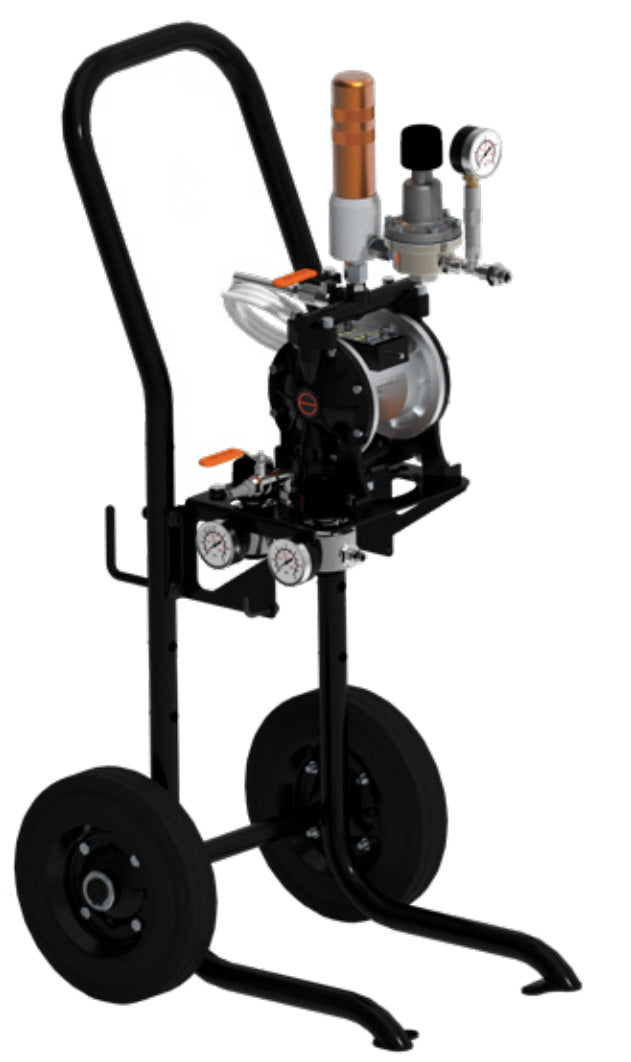

      • PSD130-AS-T = Sagola Kara 1-30 Double Diaphragm Air Spray Pump -Trolley & Wall Mount version
      • PSD140-AS-W = Sagola Kara 1-40 Double Diaphragm Air Spray Pump - Wall Mount only version
      • PSD140-AS-T = Sagola Kara 1-40 Double Diaphragm Air Spray Pump -Trolley & Wall Mount version
      • PSD130-AAS-W = Sagola Kara 1-40 Double Diaphragm Air Spray Pump for Abrasive Materials - Wall Mount only version

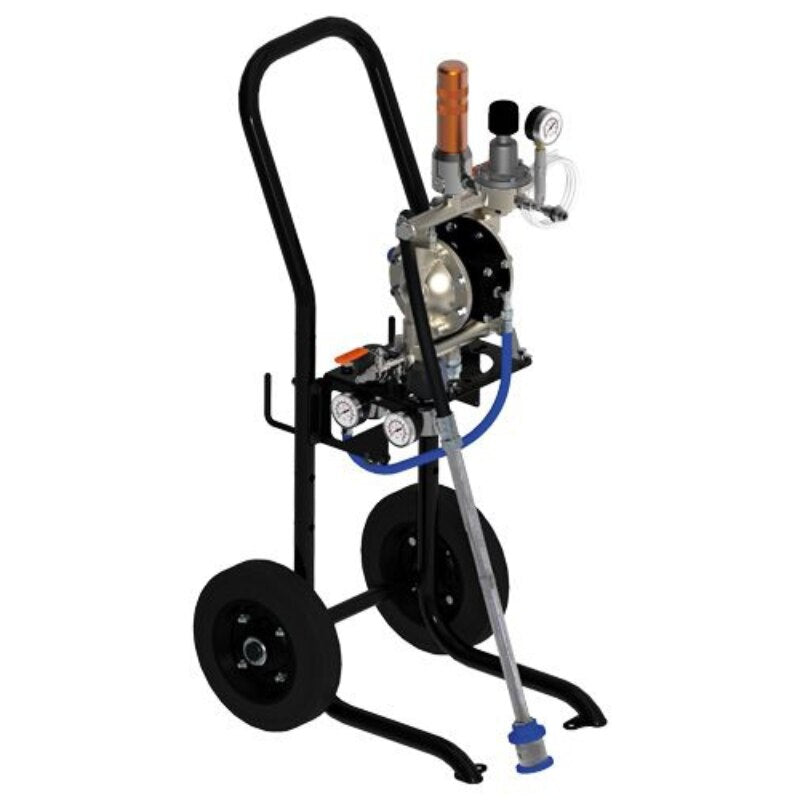

      • PSD130-AAS-T = Sagola Kara 1-40 Double Diaphragm Air Spray Pump for Abrasive Materials -Trolley & Wall Mount version

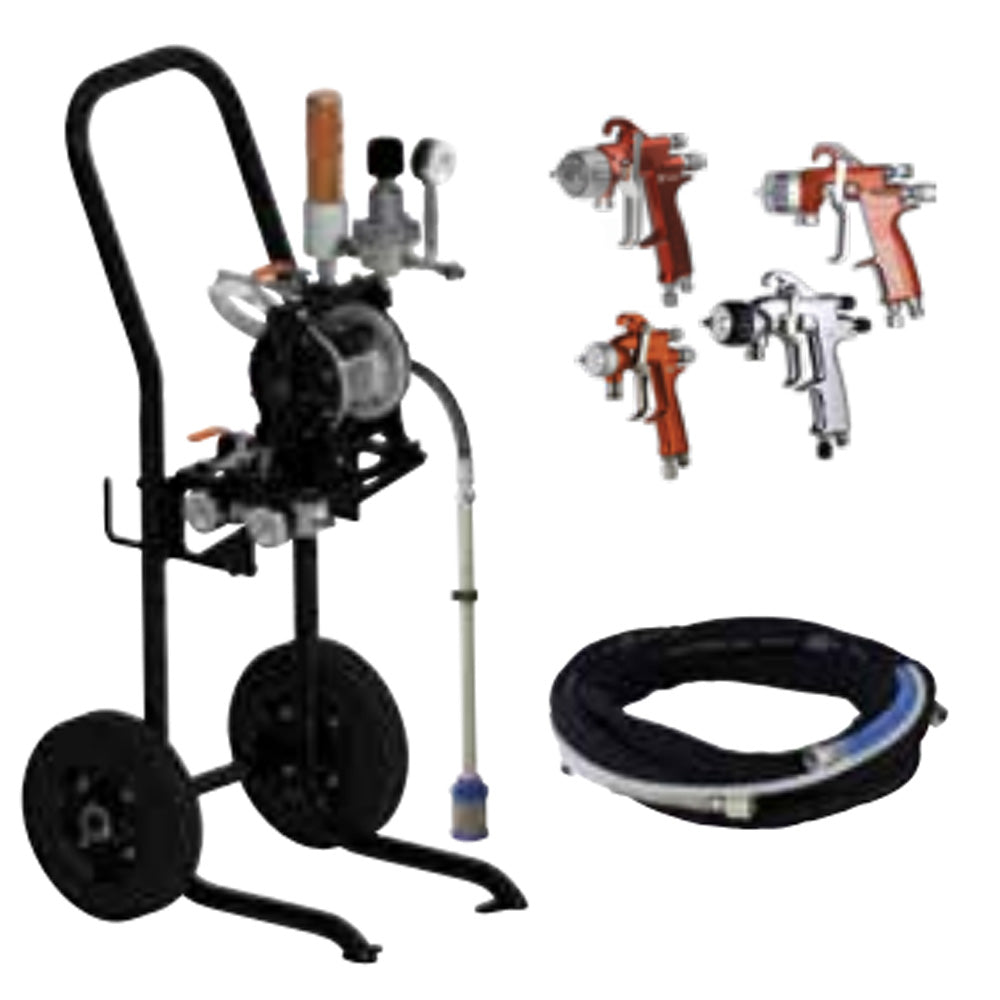

    • Complete Pump Packages (includes fluid regulator, filter, air regulation and hose kits and complete with a choice of Sagola pressure fed spray guns)(Hoppers can
      be purchased separately):
      • Sagola Kara 1-30 Double Diaphragm Air Spray Pump - Wall Mount only version w/ gun:
      • KA130W-3300-HVLP12 = Sagola 3300 GTO Pressure gun with HVLP Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • KA130W-X41-76512 = Sagola X 4100 Pressure gun with 765 Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • KA130W-X41-XT0312 = Sagola X 4100 Pressure gun with XT03 Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit

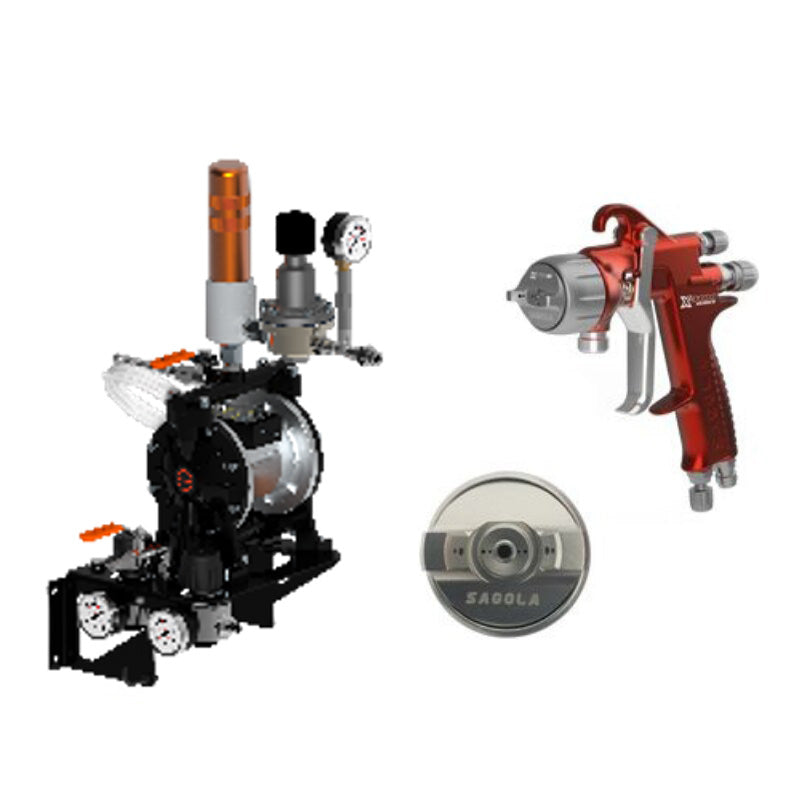

      • KA130W-X41-XT01B12 = Sagola X 4100 Pressure gun with XT01B Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • Sagola Kara 1-30 Double Diaphragm Air Spray Pump - Trolley & Wall Mount version w/ gun:
      • KA130-3300-HVLP12 = Sagola 3300 GTO Pressure gun with HVLP Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • KA130-X41-76512 = Sagola X 4100 Pressure gun with 765 Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • KA130-X41-XT0312 = Sagola X 4100 Pressure gun with XT03 Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit

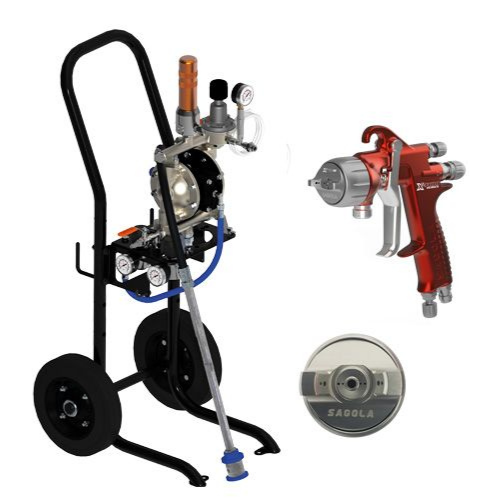

      • KA130-X41-XT01B12 = Sagola X 4100 Pressure gun with XT01B Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • Sagola Kara 1-40 Double Diaphragm Air Spray Pump - Wall Mount only version w/ gun:
      • KA140W-3300-HVLP12 = Sagola 3300 GTO Pressure gun with HVLP Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • KA140W-X41-76512 = Sagola X 4100 Pressure gun with 765 Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • KA140W-X41-XT0312 = Sagola X 4100 Pressure gun with XT03 Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit

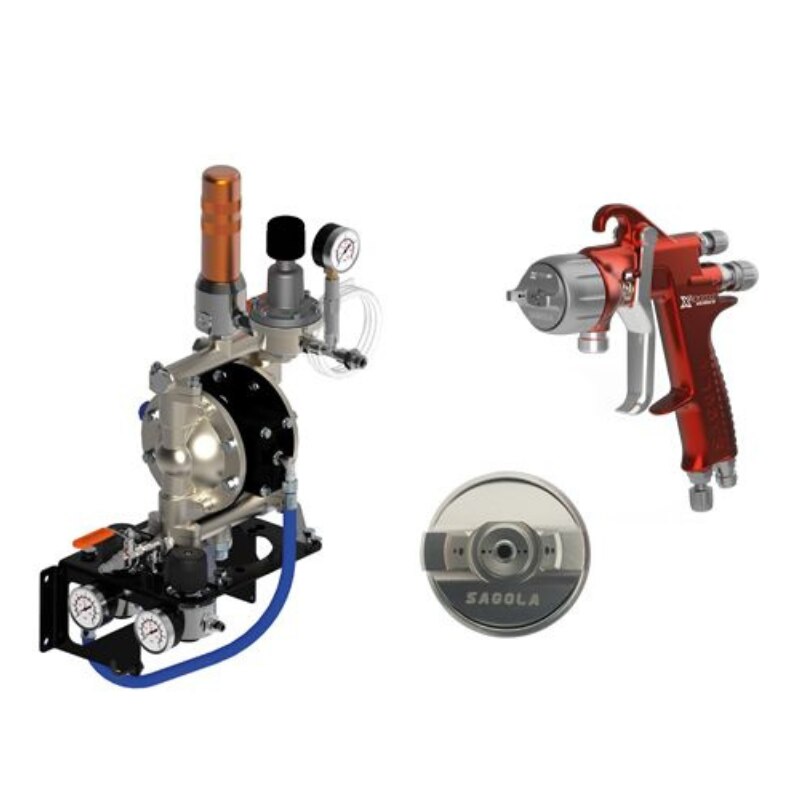

      • KA140W-X41-XT01B12 = Sagola X 4100 Pressure gun with XT01B Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • Sagola Kara 1-40 Double Diaphragm Air Spray Pump - Trolley & Wall Mount version w/ gun:
      • KA140-3300-HVLP12 = Sagola 3300 GTO Pressure gun with HVLP Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • KA140-X41-76512 = Sagola X 4100 Pressure gun with 765 Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • KA140-X41-XT0312 = Sagola X 4100 Pressure gun with XT03 Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • KA140-X41-XT01B12 = Sagola X 4100 Pressure gun with XT01B Aircap & 1.20mm Stainless Steel Needle & Nozzle Kit
      • Sagola Kara 1-40A Double Diaphragm Air Spray Pump for Abrasive Materials- Wall Mount only version w/ gun:
      • KA140AW-C41-XT0314TC = Sagola 4100 Xtreme Ceramic Pressure with XT03 Aircap & 1.40mm Tungsten Carbide Needle & Nozzle Kit
      • Sagola Kara 1-40A Double Diaphragm Air Spray Pump for Abrasive Materials- Trolley & Wall Mount version w/ gun:
      • KA140A-C41-XT0314TC = Sagola 4100 Xtreme Ceramic Pressure with XT03 Aircap & 1.40mm Tungsten Carbide Needle & Nozzle Kit

    All products come with the following:

    • KARA Double Diaphragm Air Spray Pump
    • Cart and wall mount or wall mount only
    • 7.5m (24.6ft) Air & Product Hose
    • Fluid regulator
    • Suction hose (hopper feed can be purchased separately)
    • Spray Gun (if ordering a complete pump package, sku #'s start with "KA")

    Parts and Accessories:

    Spare / Replacement Parts - KARA 1-30 and 1-40:

    Part No. Description
    PT86465206
    		 Suction Hose c/w Suction Hose Product Filter
    PT83660047
    		 Suction Hose Product Filter
    PT83660001
    		 Hopper Product Filter: 40 Mesh
    PT84760004
    		 Hopper Product Filter Spring Clip
    PT83660029
    		 Anti-Pulsation System Filter: 100 mesh
    PT83660030
    		 Anti-Pulsation System Filter: 60 mesh
    PT84560002
    		 Product Pressure Regulator Analogue Pressure Gauge 0 - 4 bar
    PT87560037 Product Pressure Regulator - Valve Set
    PT52410019
    		 Product Pressure Regulator - Complete Replacement Kit



    Spare / Replacement Parts - KARA 1-30:

    Part No. Description
    PT57550110
    		 Product Return Valve
    PT49000477 Diaphragm Pump Upper Valve Kit
    PT49000476 Diaphragm Pump Lower Valve Kit
    PT49000478 Diaphragm Replacement Kit
    PT49000481 Distribution Pump Kit (includes insert & plate)
    PT86463904 Product Pressure Regulator - Diaphragm Assembly



    Spare / Replacement Parts - KARA 1-40:

    Part No. Description:
    PT57510019 Product Return Valve
    PT86410082 Product Return Hose inc Hose to Valve Spring Connection
    PT56413512 Anti-Pulsation System
    PT30090020 Product Valve Kit
    PT30090017 Diaphragm Replacement Kit
    PT30090019 Distribution Pump Kit (includes insert & plate)
    PT56418581
    		 Product Pressure Regulator - Diaphragm Assembly
