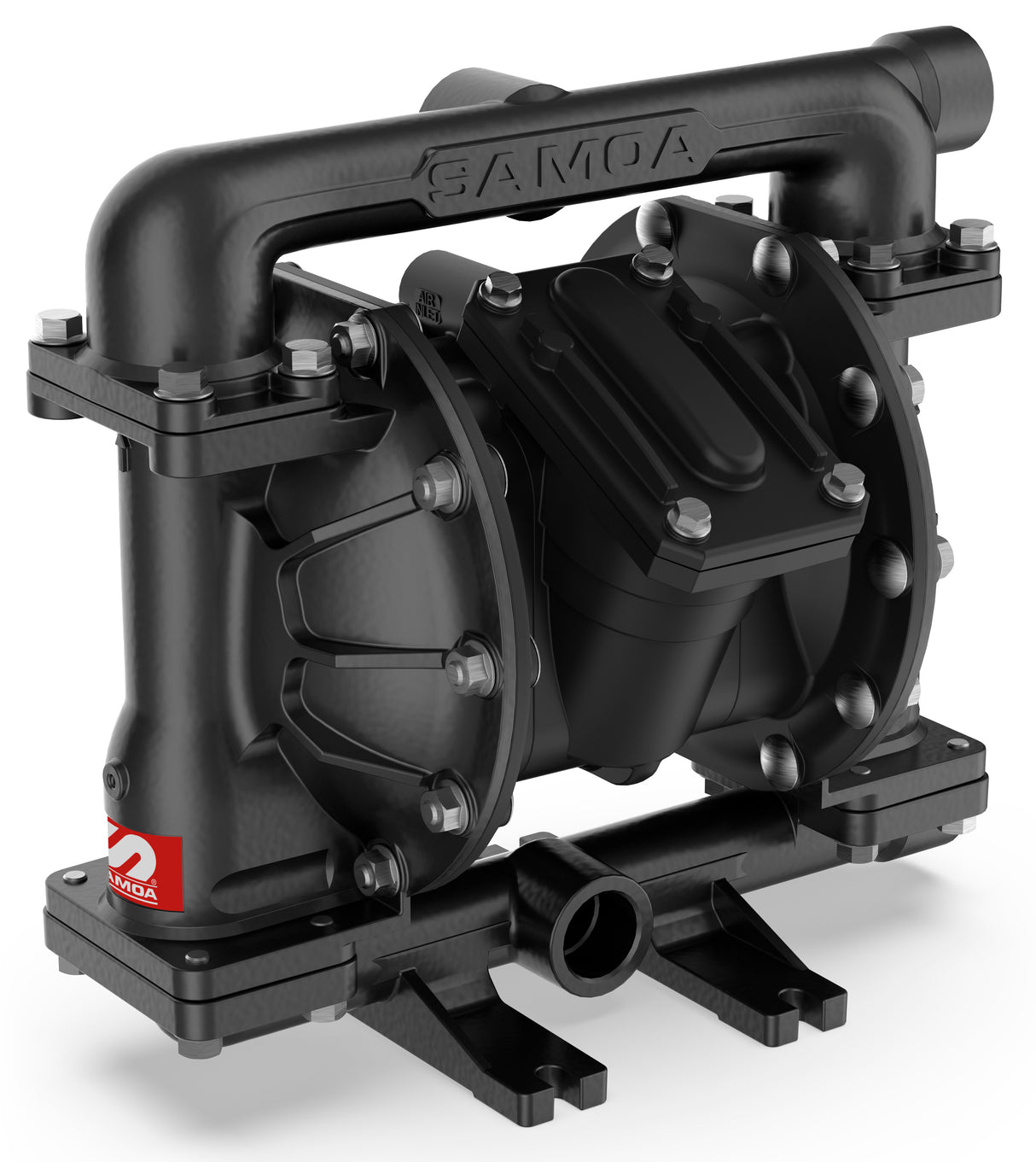

SAMOA UP10 Pivot Series 1" Metallic Air-Operated Double Diaphragm Pump

$1,294.00

UP10 Pivot Series 1" Metallic Air-Operated Double Diaphragm Pump

Manufacturer: SAMOA

Part #: UP10A-XXX-XXX

Description: The 1” (25 mm) Air Operated Double Diaphragm Pumps made of cast metal can reach a flow rate of up to 200 l/min (52 gal/min) and they offer a wide range of construction materials and porting configurations. The pump design ensures high abrasion resistance when pumping abrasive media and low flow resistance.

Multiple threaded inlet and outlet position options provide maximum installation versatility. Manifolds can rotate 180º to to increase installation possibilities.

With a patented Smooth Start Shifter (3S) actuator and enlarged air passageways, these pumps prevent unexpected stalling and freezing of the Diaphragm Pump. Their modular design simplifies maintenance and makes air valve cartridge replacement fast and easy. The innovative Air Distribution System (ADS) features a frictionless pivot valve design, resulting in maximum air efficiency, minimal wear and significantly reduced pump vibrations and fluid pulsations. Invest in Pivot Series Diaphragm Pumps for an efficient and reliable solution to the most demanding pump applications.

Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions. UP10 Metallic pumps make the difference.

Features:

  • HIGHER EFFICIENCY. Maximum fluid flow with reduced air consumption.
  • INCREASED RELIABILITY. No stall, no icing, reliable start-up and longer air valve and diaphragm lifes.
  • MAXIMUM VERSATILITY. Metal pumps and a wide range of diaphragms, seats and balls offer broad fluid and application compatibility.
  • EASY SERVICING. Simplified maintenance and cleaning. Components designed for long life and reliability. This model is a fully groundable ATEX certified pump, for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C).

Specifications:

Pump size 1"
Pressure ratio 1:1
Maximum free flow delivery 53 gal/min
Air pressure operating range 20-120 psi
Solids in suspension maximum size 1/4"
Maximum dry suction head 16 ft
Maximum wet suction head 26 ft
Delivery per cycle 0.2 gal
Fluid inlet 1" NPT (F)
Fluid outlet 1" NPT (F)
Air inlet 1/2" NPSM (F)
Air exhaust port 1" NPT (F)
Sound level 75 db
Certification ATEX
Central body & Air chambers material Aluminum
Fluid ports / Location 1" NPT central and lateral threaded
Fluid chambers & Manifolds material Aluminum
Hardware Bolts & Inserts material Carbon steel
Diaphragms type & material (Select option in dropdown)
Valve seats material (Select option in dropdown)
Valve balls material (Select option in dropdown)
Weight 25 lbs
